Linksys X6200 - Back

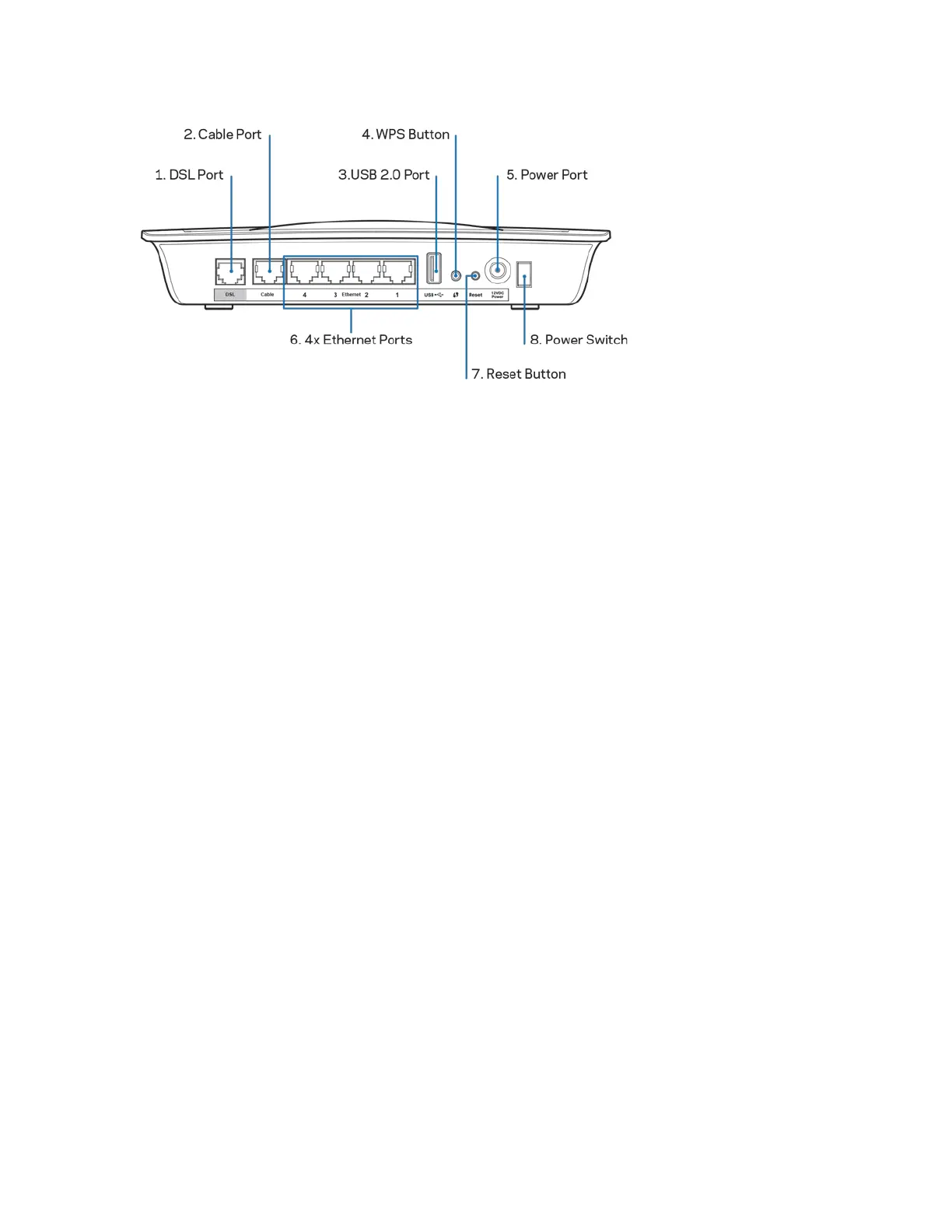

Back
1. DSL port------Connects to the DSL line.
2. Cable port------To use the modem router as only a router, use a network cable to
connect this port to a separate modem’s LAN/Ethernet port.
3. USB 2.0 port------Connect and share a USB drive on your network or on the Internet.
4. WPS button------Press this button to have Wi-Fi Protected Setup™ search for your
Wi-Fi Protected Setup™-supported wireless device.
5. Power port------The Power port connects to the included power adapter.
6. Ethernet ports—Using Ethernet cables (also called network cables), these
Ethernet ports connect the modem router to computers and other Ethernet
network devices on your wired network.
7. Reset button------This button allows you to reset the router to its factory defaults.
Press and hold the Reset button for about five seconds.
8. Power button------Press | (on) to turn on the modem router.
4
