Chapter 3: Edit a message
Linx 5900 & 7900 Quick Start Guide 30 FA69315–5 English
If the new field touches an existing field, the printer highlights the
overlap (‘A’ in Figure 3-2) in red.

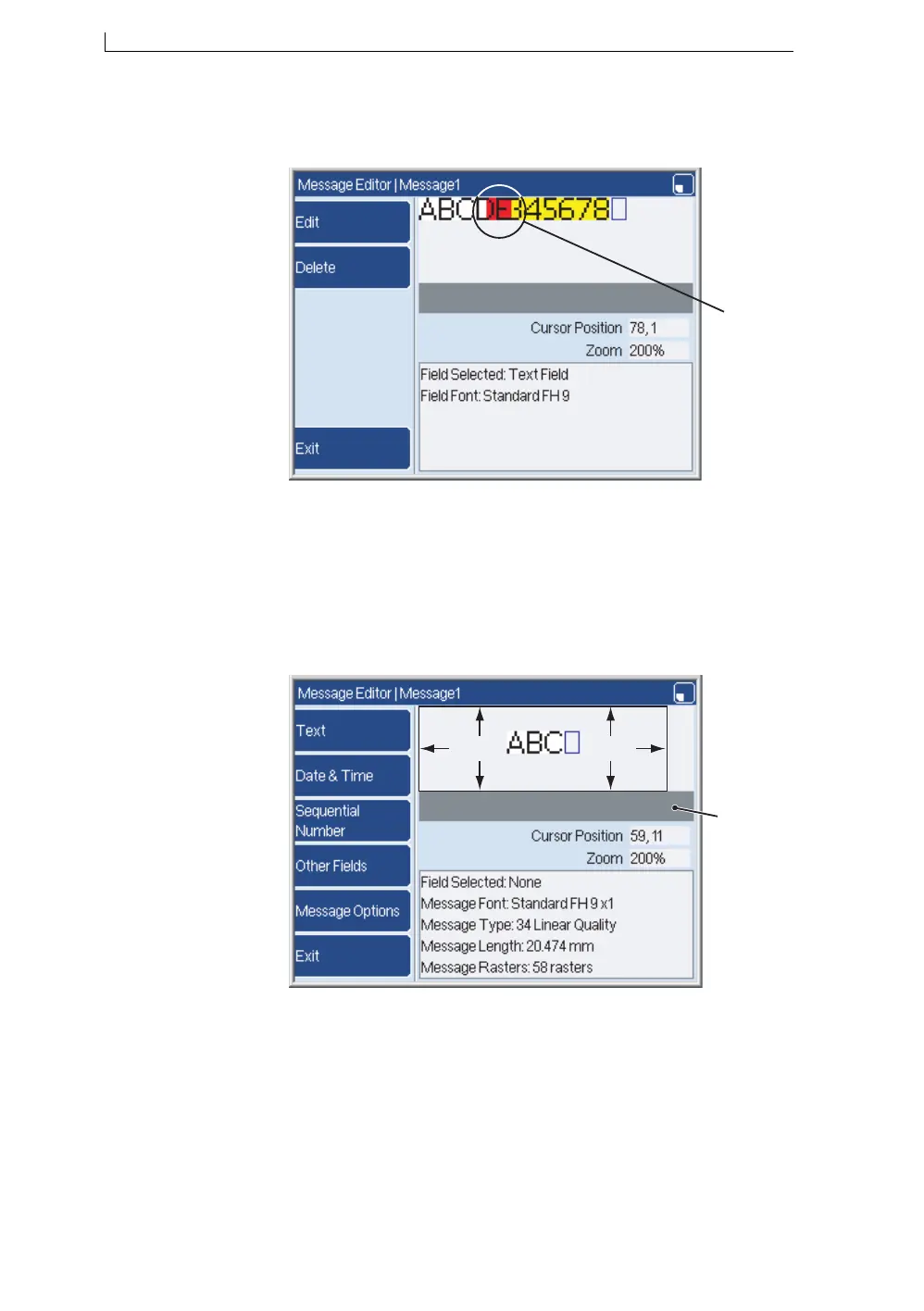

Figure 3-2. Overlapped fields
To correct the problem, you must move the new field (see ‘Move a
field’ on page 37), or delete the field (see ‘Delete a field’ on page 37).
Make sure that the new field is within the message boundary. In
Figure 3-3, the arrows indicate the message boundary (the white area).
The grey area (A) is outside the boundary:
Figure 3-3. Message boundary
If a part of the field is outside the message boundary, that part of the
field is not printed.
