Rev: 08.07.18 Page 12 CCD-0001772
Assembly Installation Procedure
1. Prepare the slide room and side of unit for the new install by cleaning the surfaces of any adhesive
residue using a putty knife and a solvent. Be careful not to damage the finishes on the unit.
2. Prepare the new system for installation: measure the distance (center to center) from one gear rack to
the next gear rack along the slide column. Write these measurements down.
3. Install all the screws attaching the clamp strap to the C-column.
NOTE: If installing a new assembly, remove the shipping angles before continuing this procedure.
4. Gently slip the system through the opening between the slide room and the side wall opening. Tuck
the gear racks inside the bulb seal attached to the T-molding.
5. Align the bottom lip of the lower gear rack with the bottom edge of the slide room (Fig. 21).
6. Push the bottom gear rack tight against the bottom of the slide room, assuring that the non-notched
end of the gear rack is butted up flush against the interior trim of the slide room. Put a screw into each
end of the gear rack.

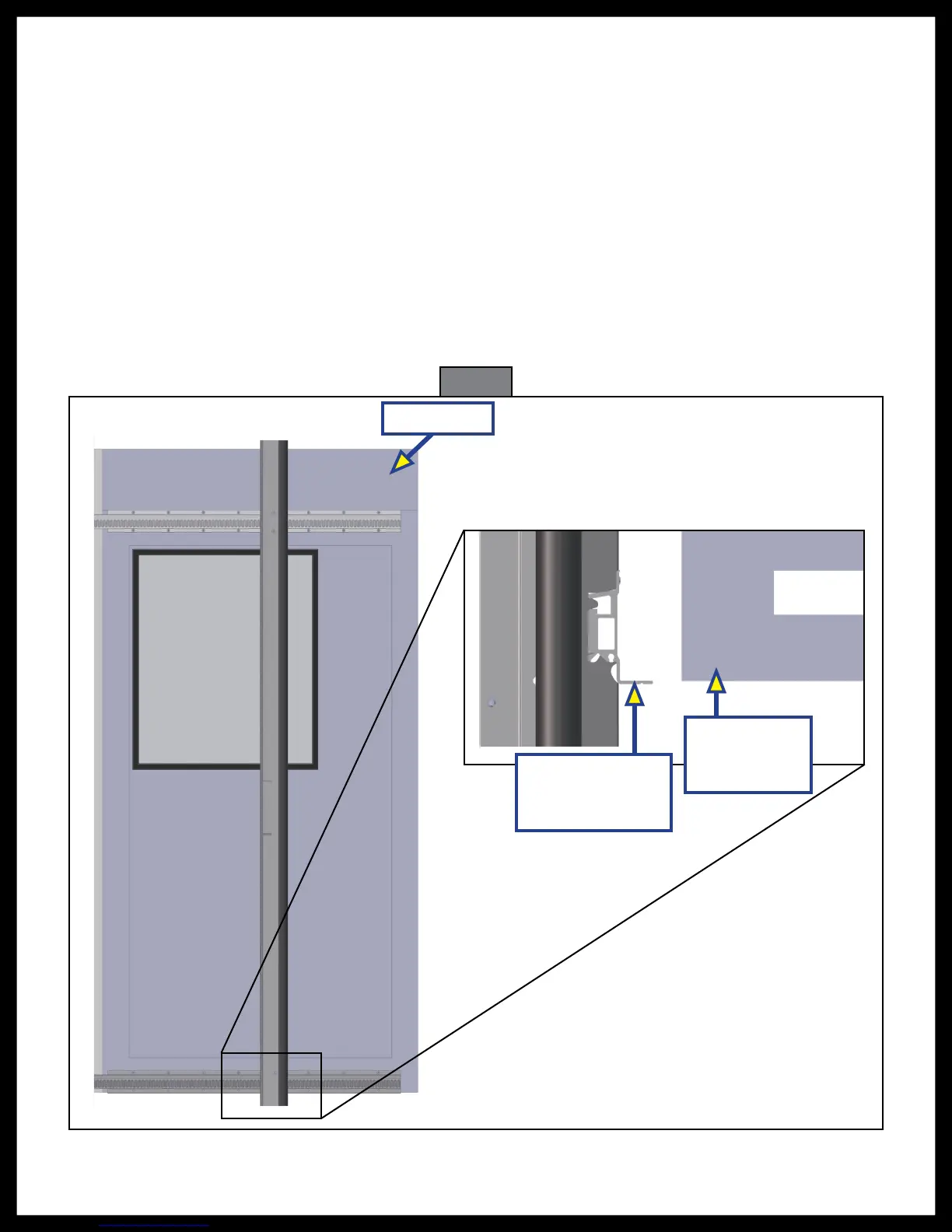

Fig. 21
Slide Room
Bottom Edge
of Slide
Room
Lower Gear Rack
Alignment
Flange
To Next Page
