Lippert Components In-Wall Slide-Out Winnebago User Manual

Rev: 08.07.18 Page 8 CCD-0001772
Bearing Block
Foot
Shoe
A
A
Shoe
Inspection
A. Damaged or missing shoe: If damage to corresponding foot on bearing block is present,
replacement of the bearing block (Page 10) will be necessary.
Replacement

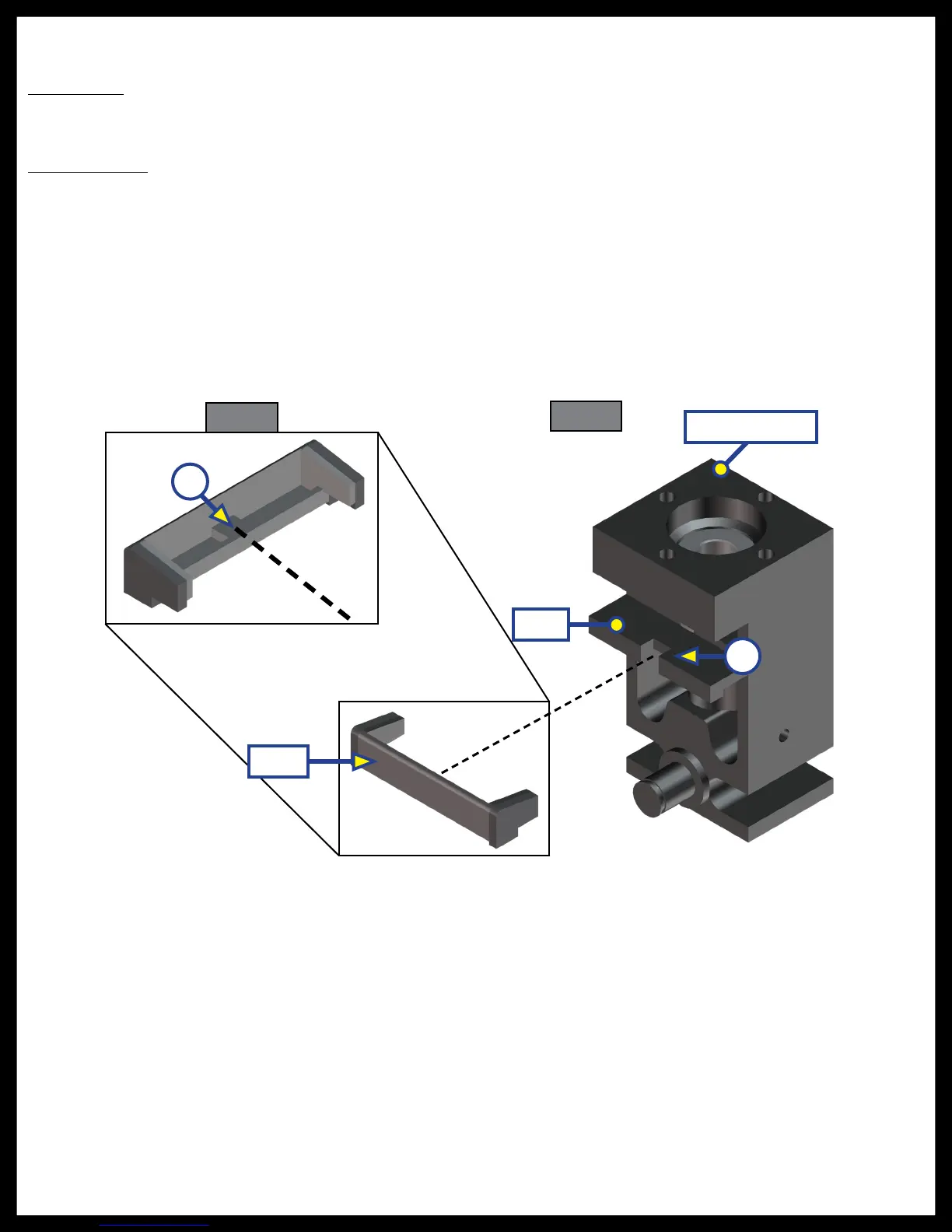

Below are the steps to replace a shoe (Figs. 13 and 14):
1. With the racks removed from the assembly, the shoe replacement is snapped onto the bearing block
foot. Align the notch located on the foot (Fig. 14A) with the "rib" in the shoe (Fig. 13A) and press into
place.
2. Gear racks can now be installed back into the columns.
NOTE: Please refer to the Re-timing Procedure section of this manual on Page 11.
3. If all other concerns have been addressed, the assembly can now be installed back onto the unit. See
Assembly Installation Procedure on Page 12.
Fig. 13
Fig. 14
NOTE: On certain systems, the bearing block will not have a notch in it for the tab on the new shoe (Fig.
13A) to properly fit. If this is the case, the bearing blocks will also need to be replaced. See Page 14
for bearing block package information.
