Rev: 08.07.18 Page 13 CCD-0001772
7. Measure from the bottom gear rack (center to center)
to the next gear rack and align that rack so that it
matches the measurement taken off of the system
during step 2 (Page 12). This will ensure that the
racks are installed parallel and square. Put a screw in
each end of the gear rack to hold it in place until all
the gear racks are aligned.
8. Once you align and secure all the gear racks, put all
the screws into the gear racks.
9. Attach the jumper wires to the motor in the top of
the slide column and then to the cordless screw gun
battery. Actuate the motor to move the slide column
in towards the coach. Stop it when it is still a few
inches away from the unit. Remove the jumper cable.
10. Make sure the motor cable is tucked into the top of
the slide column.
11. Remove the 2x4 block.
12. Push the slide room in by hand until the clamp strap
is flush with the side wall of the coach.
NOTE: Adjustment to the screw jack may be necessary to
assure the clamp strap is parallel to the sidewall of
the coach.
13. Screw the clamp strap into the side wall by placing
a screw in the strap by each rack and in the middle
of the strap to ensure the rack is straight. Fill in
remaining screws (Fig. 22). Remove the screw jack.
14. From the inside of the coach, connect the wiring
harness to the motor cable.
15. Repeat this process for the other side of the slide
room.
16. Once you have completed both sides of the slide
room, synchronize the slide system motors (See
procedure below).
Synchronizing the Slide-Out Motors
1. Fully extend the slide room using the switch. Keep
the switch engaged until the motors shut down on
their own.
2. Retract the room 1-2 inches.
3. Repeat steps 1 and 2 until both motors shut down at
the same time. In many cases, two or three repetitions
are necessary to re-sync the system.
4. Fully extend and then retract the room. Again,
always let the motors shut down on their own before
releasing the switch.

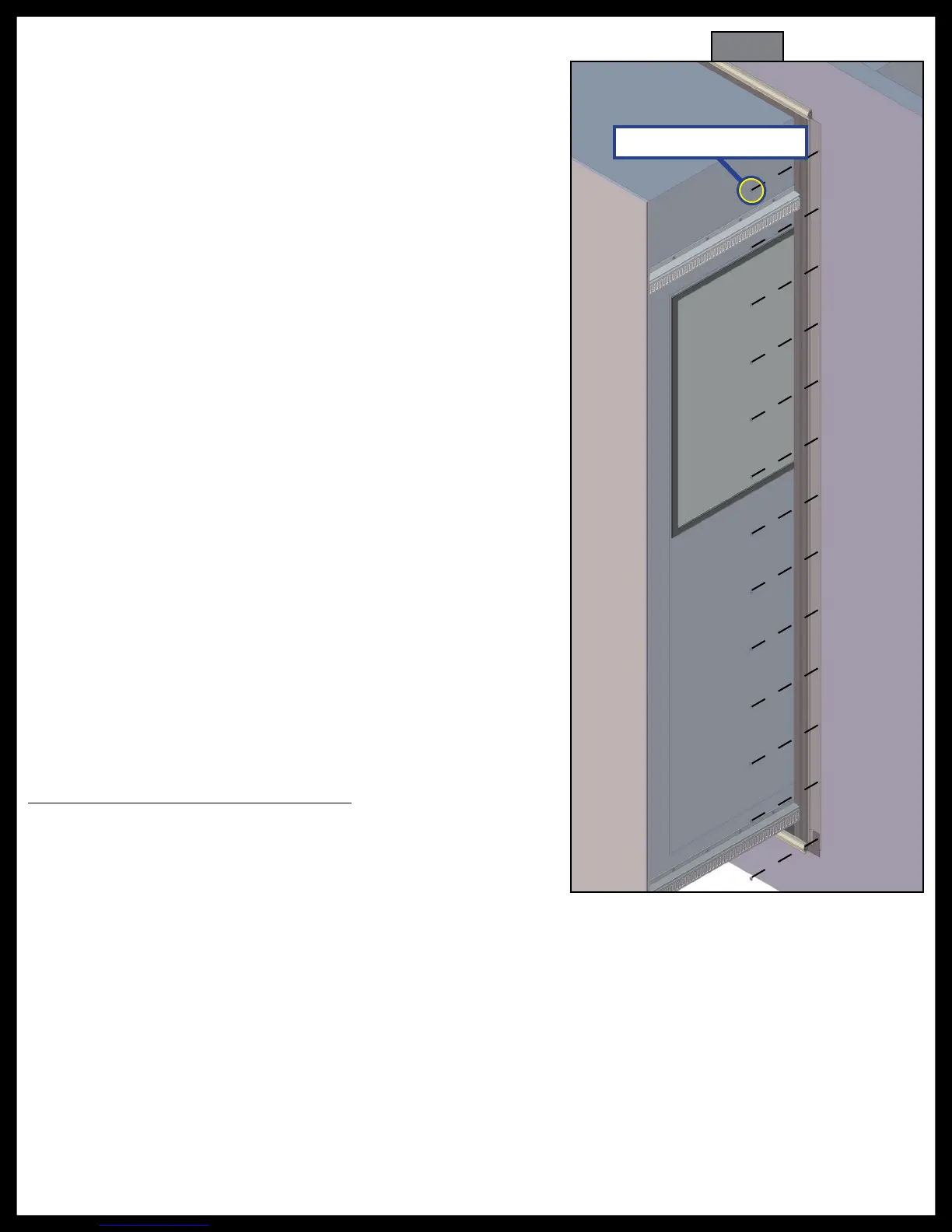

Fig. 22
#10 Pan Head Screws
To Next Page
