Rev: 06.29.18
Page 16
CCD-0001535

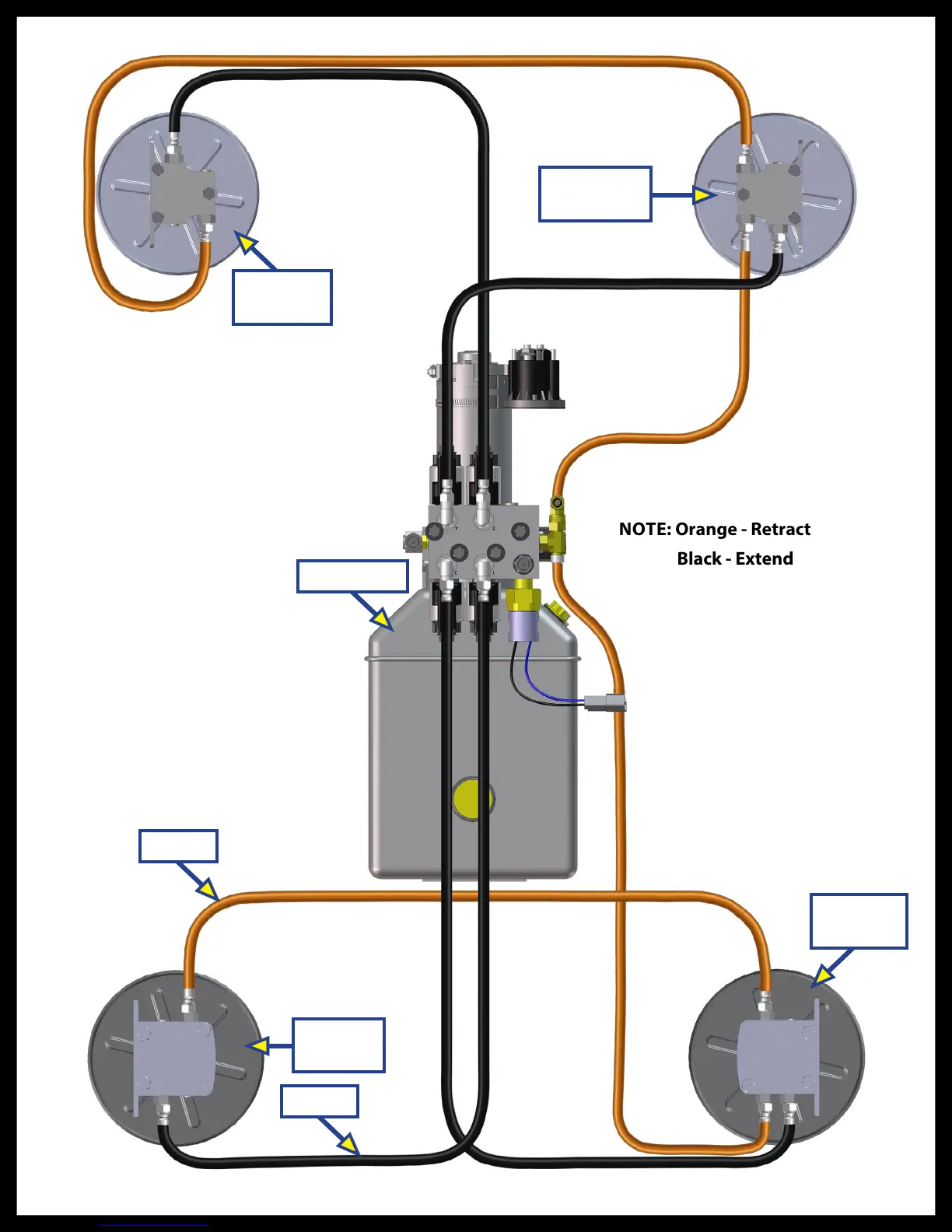

Plumbing Diagram
NOTE: Orange - Retract
Black - Extend
Right Front
Jack
Left Front
Jack
Power Unit
Retract
Extend
Right
Rear Jack
Left Rear
Jack
