Rev: 06.29.18
Page 15
CCD-0001535

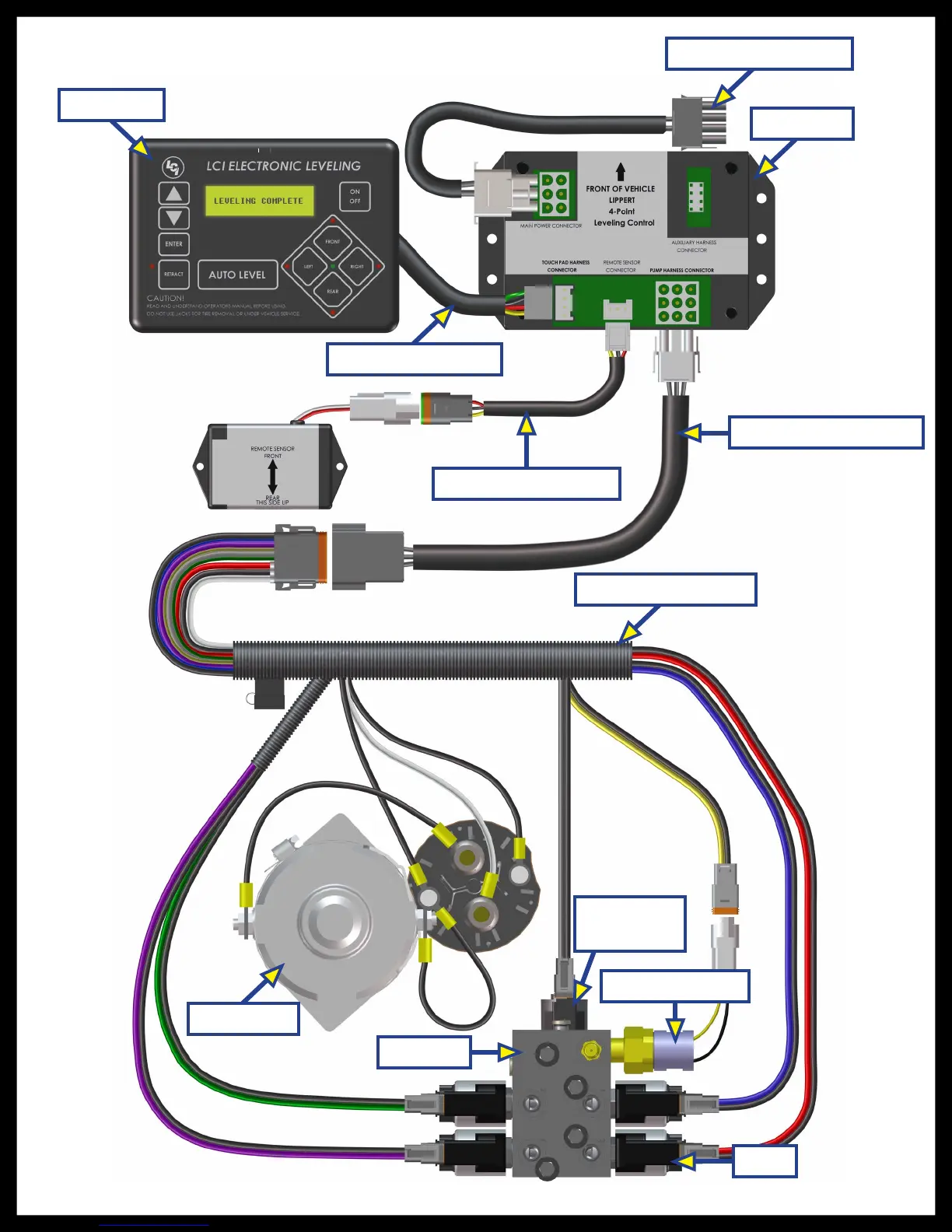

Wiring Diagram
Touch Pad
Main Power Harness
Controller
Interconnect Harness
Power Unit Harness
Rear Sensor Harness
Touch Pad Harness
Power Unit
Manifold
Valve
Directional
Valve
Pressure Switch
