Lippert Components LCI Level-Up User Manual

Rev: 06.29.18
Page 17
CCD-0001535
1. WHITE (CHASSIS
POWER)
2. BLACK w/
WHITE(PUMP
SOLENOID)
3. RED (CURBSIDE REAR
VALVE)
4. GREEN (ROADSIDE
FRONT VALVE)
5. YELLOW (PSI SWITCH)
6. BLUE (ROADSIDE
REAR VALVE)
7. BROWN (GROUND)
8. PURPLE (CURBSIDE
FRONT VALVE)
9. GREY (PUMP
SOLENOID)
10. AUX
11. AUX
12. AUX

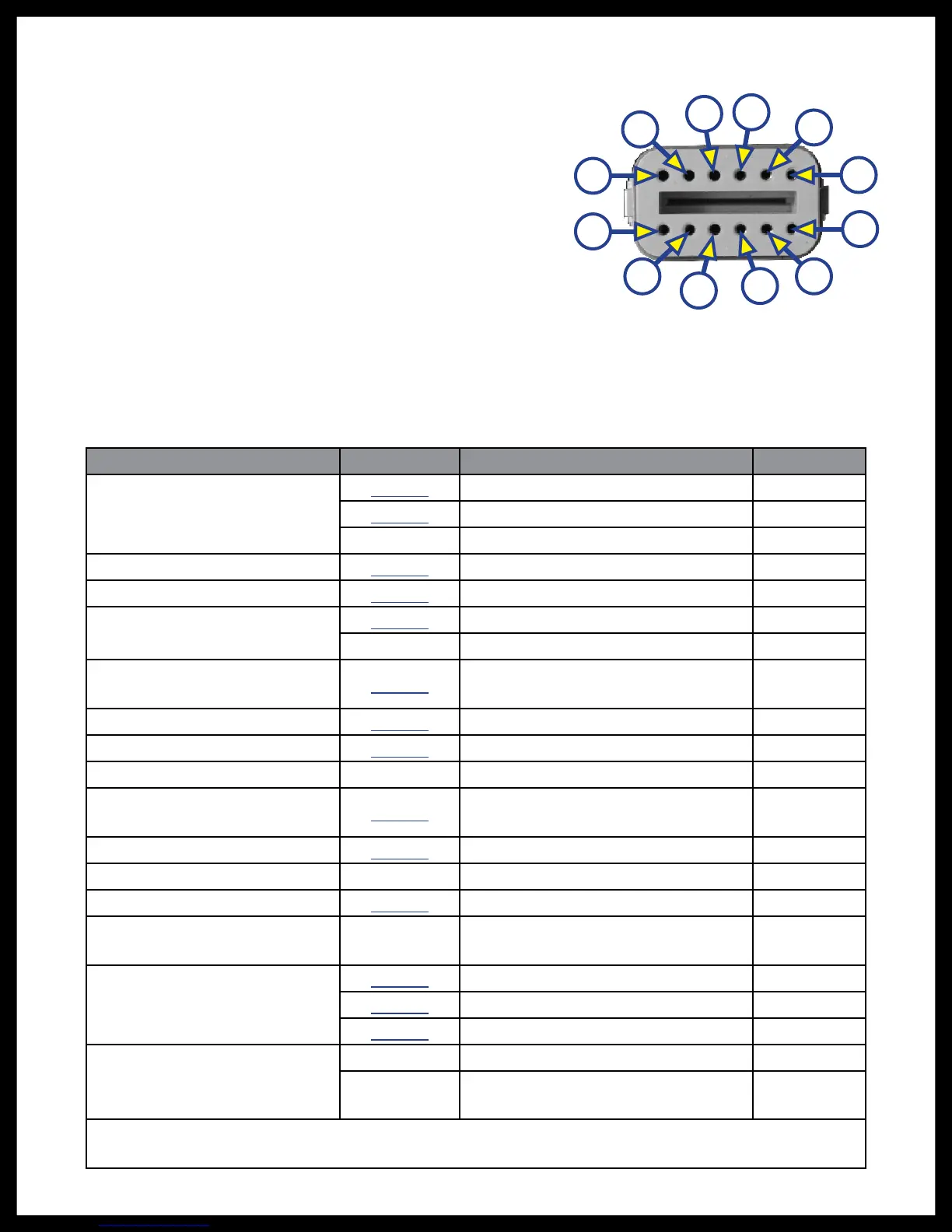

Bill of Materials
12-PIN WIRE HARNESS
7
6
12
1
8
2
5
11
10
9
4
3
Description Part # Details Quantity
Power Unit
196471 Hydraulic Power Unit, Leveling Only 1
175249 Hydraulic Power Unit, Leveling Only 1
293559 Hydraulic Power Unit, Leveling Only 1
Motor
179327 12V DC Motor for Power Unit 1
Solenoid
161394 Motor Solenoid 1
Valve
177094 Blocking Valve 4
259524 Directional Valve 1
Coil
174184
Electromagnetic Coil for Blocking
Valve
5
Pressure Switch
142927 2150 PSI Rated Pressure Switch 1
Pump Harness
178373 Electrical Harness for Power Unit 1
Main Harness 178375 30' Hydraulic Leveling Main Harness 1
Touch Pad - Controller
Harness
178279
Electrical Harness between Touch
Pad & Controller
1
Remote Sensor Harness
241314 Remote Sensor to Brain Harness 1
Brain 289252 Control Module 1
Touch Pad
234802 Touch Panel mounted in Dash 1
Remote Sensor 294287
Secondary Level Sensor mounted
rearward
1
Hydraulic Jacks
433458 8k Leveling Jacks *
236560 14k Leveling Jacks *
258550 20k Leveling Jacks *
Footpad
113309 9” Footpad for Leveling Jacks 4
117238
12” Footpad for Leveling Jacks -
Optional
**
*Jack quantities will either be 2 or 4 depending on OEM specified design.
**Optional - Quantities will vary.
