Lippert Components LCI Level-Up User Manual

Rev: 06.29.18
Page 5
CCD-0001535
Aluminum Jacks

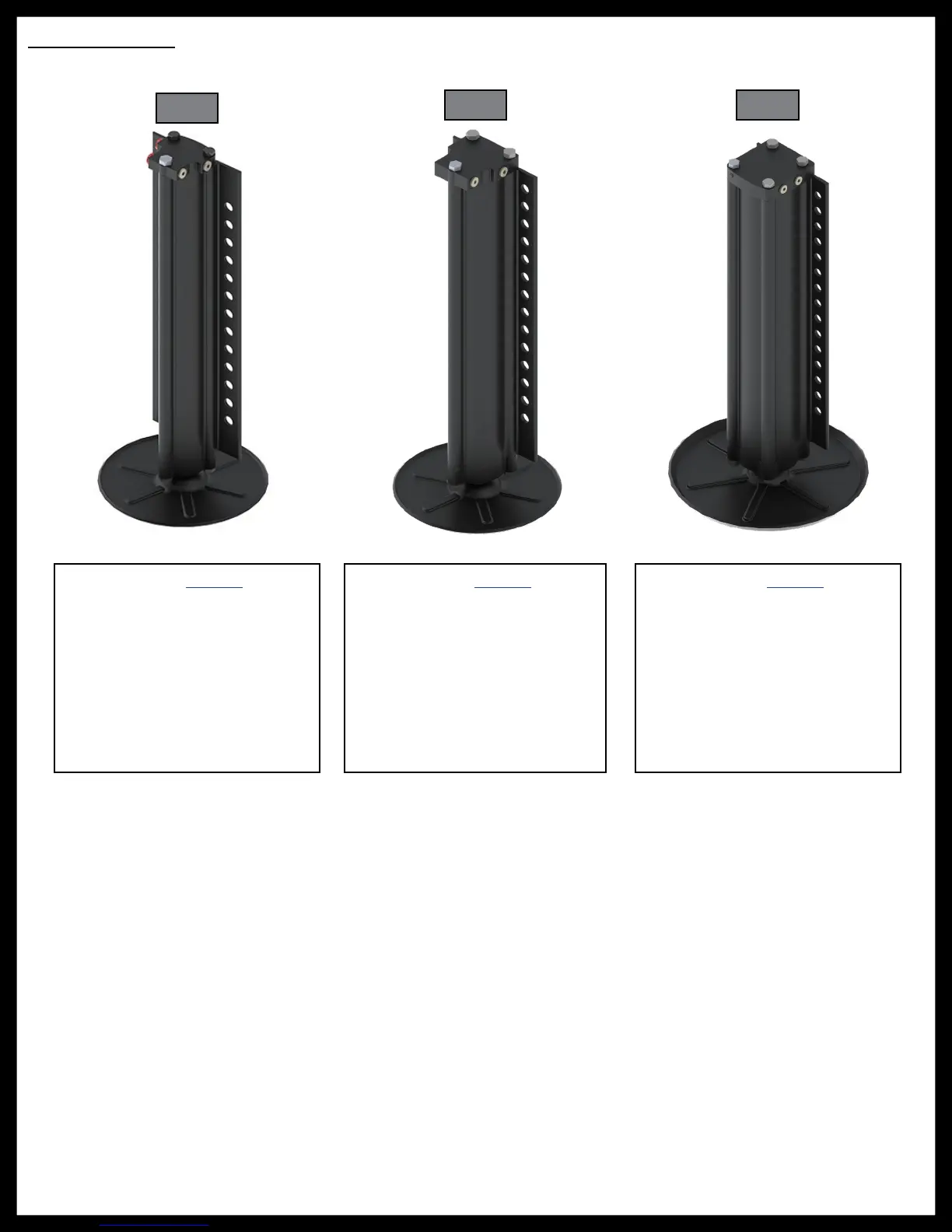

Fig. 1 - 433458
CAPACITY - 8,000 lb.
STROKE - 15.00 in.
BORE - 2.00 in.
H - 21.375 in.
ROD DIA. - 1.50 in.
9” FOOTPAD-STANDARD
12” FOOTPAD-OPTION - 117238
Fig. 2 - 236560
CAPACITY - 14,000 lb.
STROKE - 15.13 in.
BORE - 2.50 in.
H - 21.50 in.
ROD DIA. - 1.875 in.
9” FOOTPAD-STANDARD
12” FOOTPAD-OPTION - 117238
Fig. 3 - 258550
CAPACITY - 20,000 lb.
STROKE - 16.00 in.
BORE - 3.00 in.
H - 23.063 in.
ROD DIA. - 2.25 in.
9” FOOTPAD-STANDARD
12” FOOTPAD-OPTION - 117238
Fig. 1
Fig. 2 Fig. 3
