LCI Level-Up Motorized Leveling Winnebago Industries up to 9-2015 Owner's
Clockwise for manual override
Counterclockwise for normal operation
Remote Leveling Operation
TO BEGIN - INSIDE COACH - Push ON/OFF button. ON/OFF LED on TOUCH PAD will illuminate. LED at REMOTE
SWITCH will also illuminate. Ready to operate.
OUTSIDE COACH - Push ROCKER SWITCH (Fig. 6) for operation.
AUTOMATIC MODE - Push ROCKER SWITCH and release toward LEVEL (Fig. 6A) position. A slowly blinking LED
indicates Automatic Leveling Operation in progress. Operation completion is indicated by LED at ROCKER SWITCH
flashing rapidly for 2 seconds and then staying illuminated until control unit times out.
JACKS STORE - Push ROCKER SWITCH and release toward JACKS STORE (Fig. 6B) position. The slowly blinking LED
indicates JACKS STORE (Fig. 6B) in progress. Operation completion is indicated by LED at ROCKER SWITCH flashing
rapidly for 2 seconds and then staying illuminated until control unit times out.
STOPPING EXTEND/RETRACT MID-OPERATION - Press the ROCKER SWITCH towards LEVEL (Fig. 6A) or JACKS STORE
(Fig. 6B) to stop operation of LEVELING SYSTEM or press the ON/OFF button on the TOUCH PAD inside the coach.
RESTARTING JACKS STORE AFTER MID OPERATION STOP - To restart JACKS STORE (Fig. 6B) after it has been stopped
mid-operation, press the ROCKER SWITCH and release in the JACKS STORE (Fig. 6B) position.
RESTARTING LEVEL AFTER MID OPERATION STOP - To restart LEVEL (Fig. 6A) after it has been stopped mid-
operation, press the ROCKER SWITCH and release in the JACKS STORE (Fig. 6B) position to retract jacks completely.
After jacks are completely retracted, press ROCKER SWITCH and release in the LEVEL (Fig. 6A) position.
Manual Override - Jacks
In the event that the jacks will not extend or retract, the valves can be manually overridden. By using a
⁄
” hex
wrench to turn the manual override clockwise on the valve, see (Fig. 7), the leveling jacks can then be extended or
retracted. Remember to turn the manual override completely counterclockwise, see (Fig. 8), until it will no longer
turn, to close the valve after the jacks have been completely extended or retracted. Do not overtighten override set
screws, as this can damage the valves.
A
B

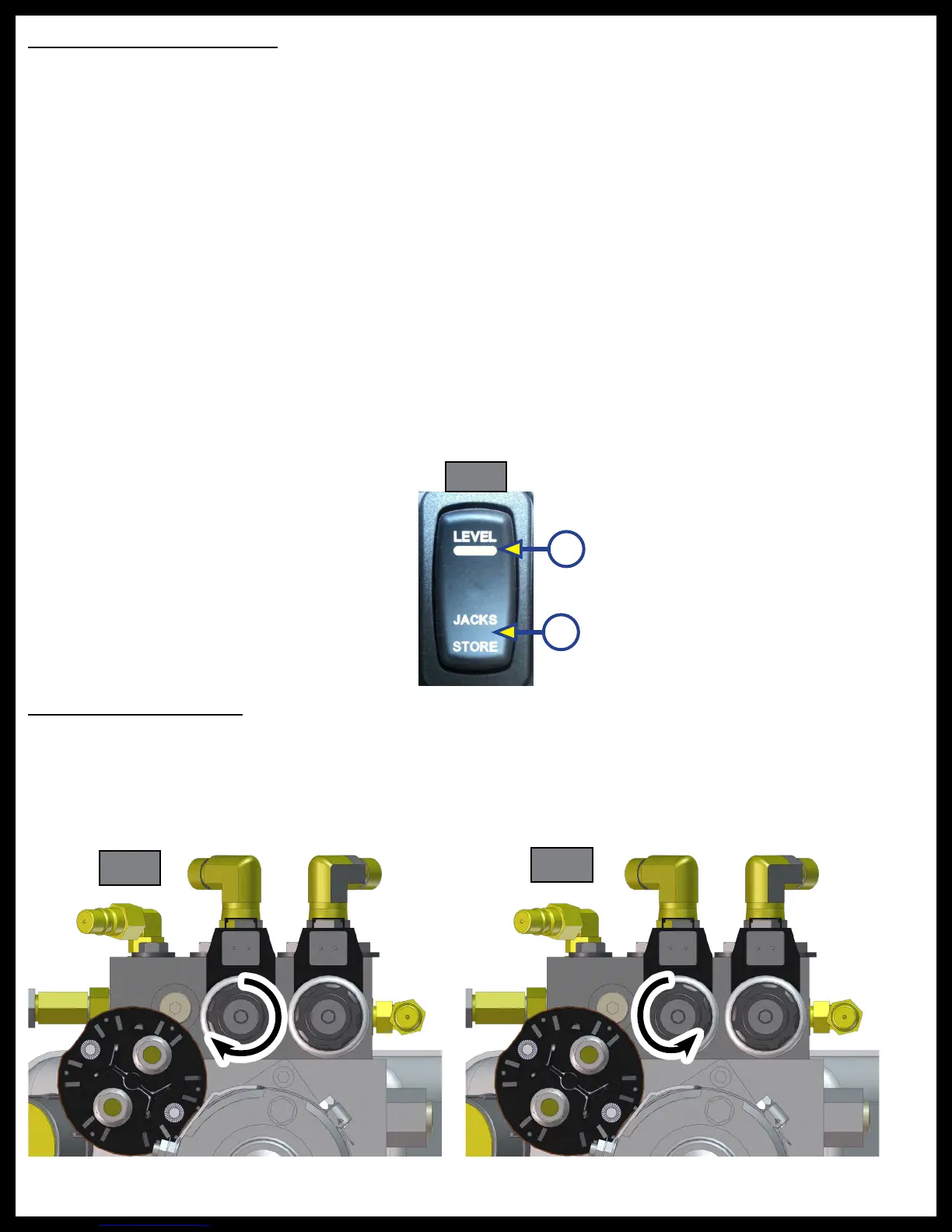

Fig. 6
Fig. 7
Fig. 8
