LCI Level-Up Motorized Leveling Winnebago Industries up to 9-2015 Owner's
Fitting Orientation
NOTE: Fittings - High pressure O-Ring Face - Size 4
NOTE: Hose -
¼
in. I.D. 3000 psi - W.P. Rated
D
Fig. 4
E
B
C
E
A
A

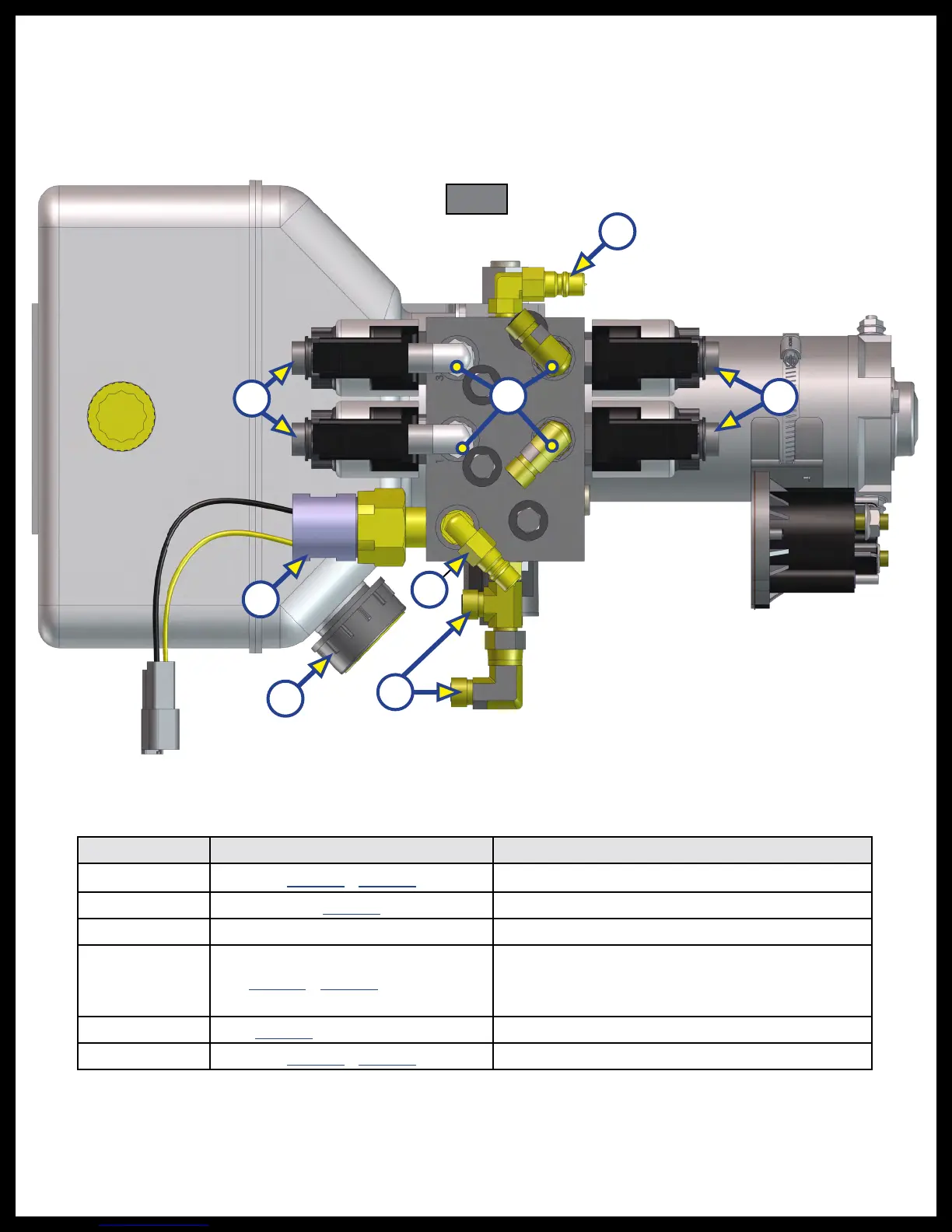

Callout Part # Description
A
177094 / 174184 Valve/Coil - Rear Jacks
B
142927 Pressure Switch
C -- Filler Vent
D
156846 / 141109 (Straight)
Extend Fittings
Fittings are labeled w/ port assignments
found stamped into the manifold.
E
140457 / 320521 (Elbow) Quick Disconnect for Flush & Fill
F
156846 / 143108 Return Fittings
F
To Next Page
