Lippert Components OneControl X1 - Page 15

Rev: 08.31.20 Page 15 CCD-0002697

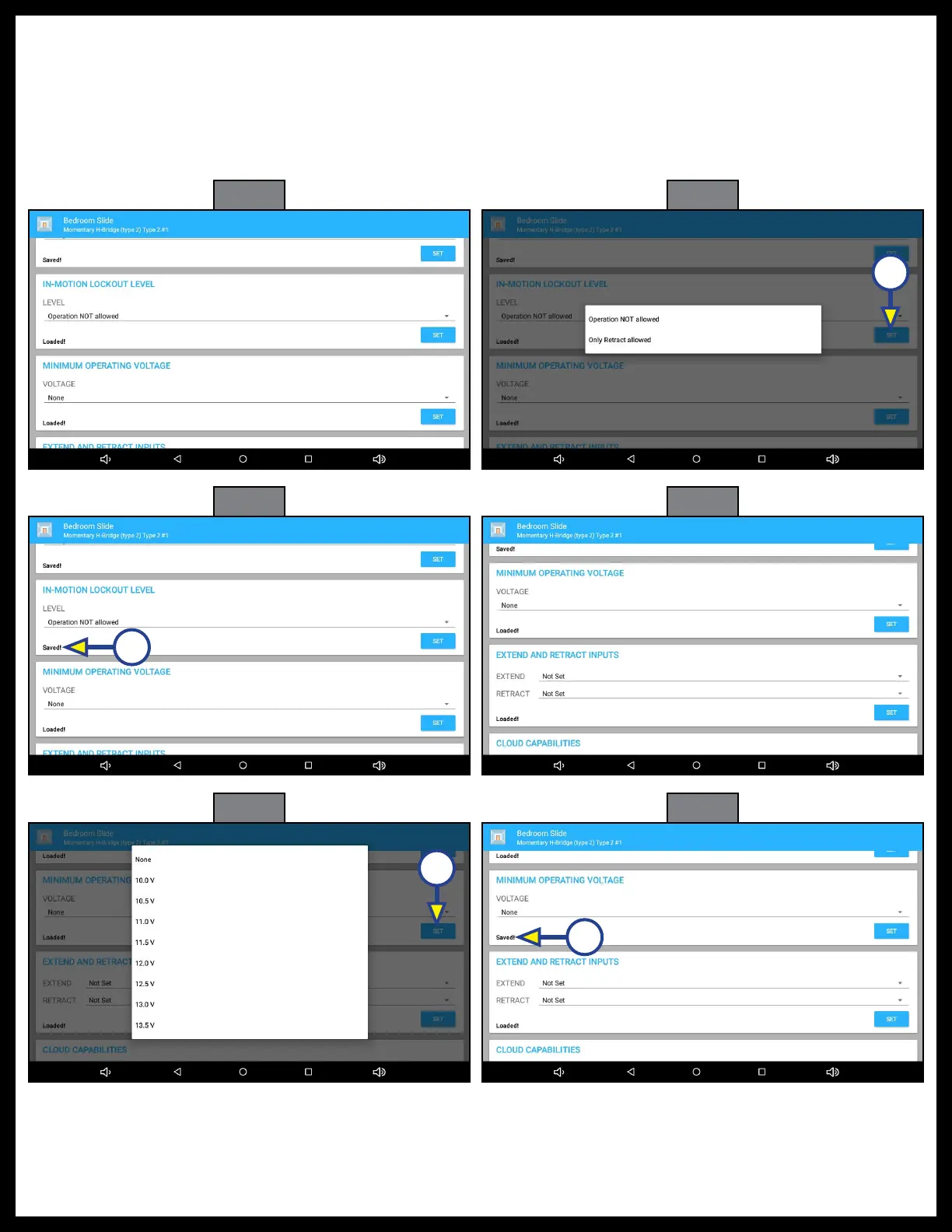

11. IN-MOTION LOCKOUT LEVEL (Fig. 51): Scroll down to IN-MOTION LOCKOUT LEVEL.
12. Choose one of the options (Fig. 52): Operation NOT allowed or Only Retract allowed.
13. Press SET (Fig. 52A). Saved! will replace Loaded! on the screen (Fig. 53A).
14. MINIMUM OPERATING VOLTAGE (Fig. 54): Scroll down to MINIMUM OPERATING VOLTAGE.
15. Choose one of the options (Fig. 55): None, 10.0V, 10.5V, 11.0V, 11.5 V, 12.0V, 12.5 V, 13.0 V or 13.5V.
16. Press SET (Fig. 55A). Saved! will replace Loaded! on the screen (Fig. 56A).
Fig. 51
Fig. 52
Fig. 53 Fig. 54
Fig. 55
Fig. 56
A
A
A
A
