lci1.com 574-537-8900 Rev: 03.21.19

Solera

Universal Hardware

Manual Awning to

Solera 18V Power Awning

(For Aftermarket Applications)

CCD-0001267

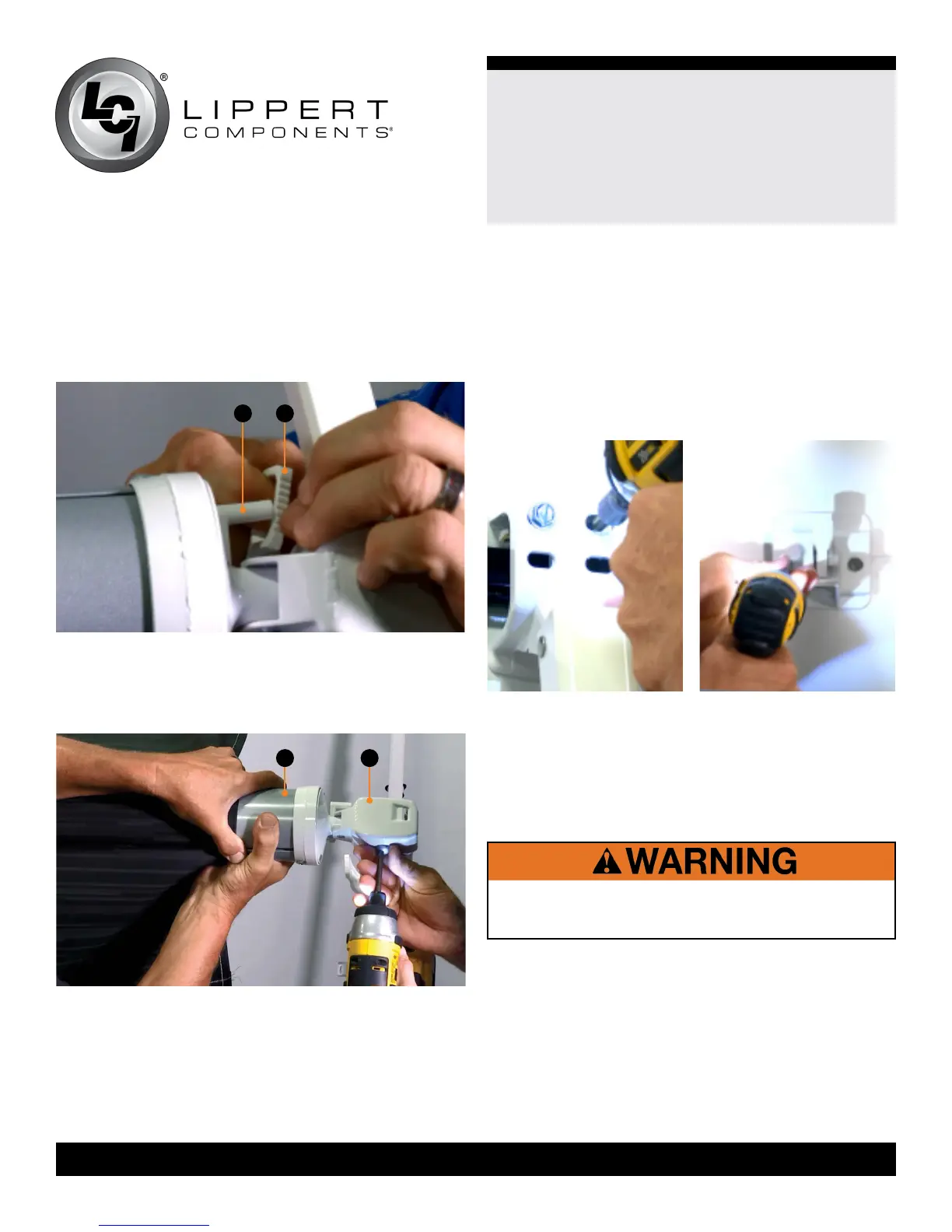

NOTE: Some Carefree systems are equipped with a cam

lock assist on the drive side of the awning. If equipped,

remove the cam lock assist (Fig.18B) from the lock pin

(Fig.18A), making sure the cam lock remains in the

roll out position.

A B

Fig.18

3. With an assistant holding the roll tube (Fig.19A), remove

the fastener securing the drive head (Fig.19B) to the

support arm.

A B

Fig.19

4. Separate the drive head from the support arm and

secure the support arm to the unit in the travel position.

5. Remove the fasteners from the upper mounting bracket

(Fig.20) of the support arm assembly.

6. Detach the support arm assembly from the lower

mounting bracket.

7. Remove the fasteners from the lower mounting bracket

(Fig.21) of the support arm assembly. Discard the

mounting bracket.

8. Firmly take hold of the drive head with a pair of locking

pliers (Fig.22). Remove the cotter pin, if equipped, from the

end cap and move the cam lock to the roll up position.

NOTE: Padding the locking pliers will prevent the

scratching of components.

THE SPRING IS UNDER EXTREME TENSION. IMPROPER

HANDLING COULD CAUSE DEATH, SERIOUS INJURY

OR PROPERTY DAMAGE.

Fig.21 Fig.20
