6. Installation
6.1. Package Items

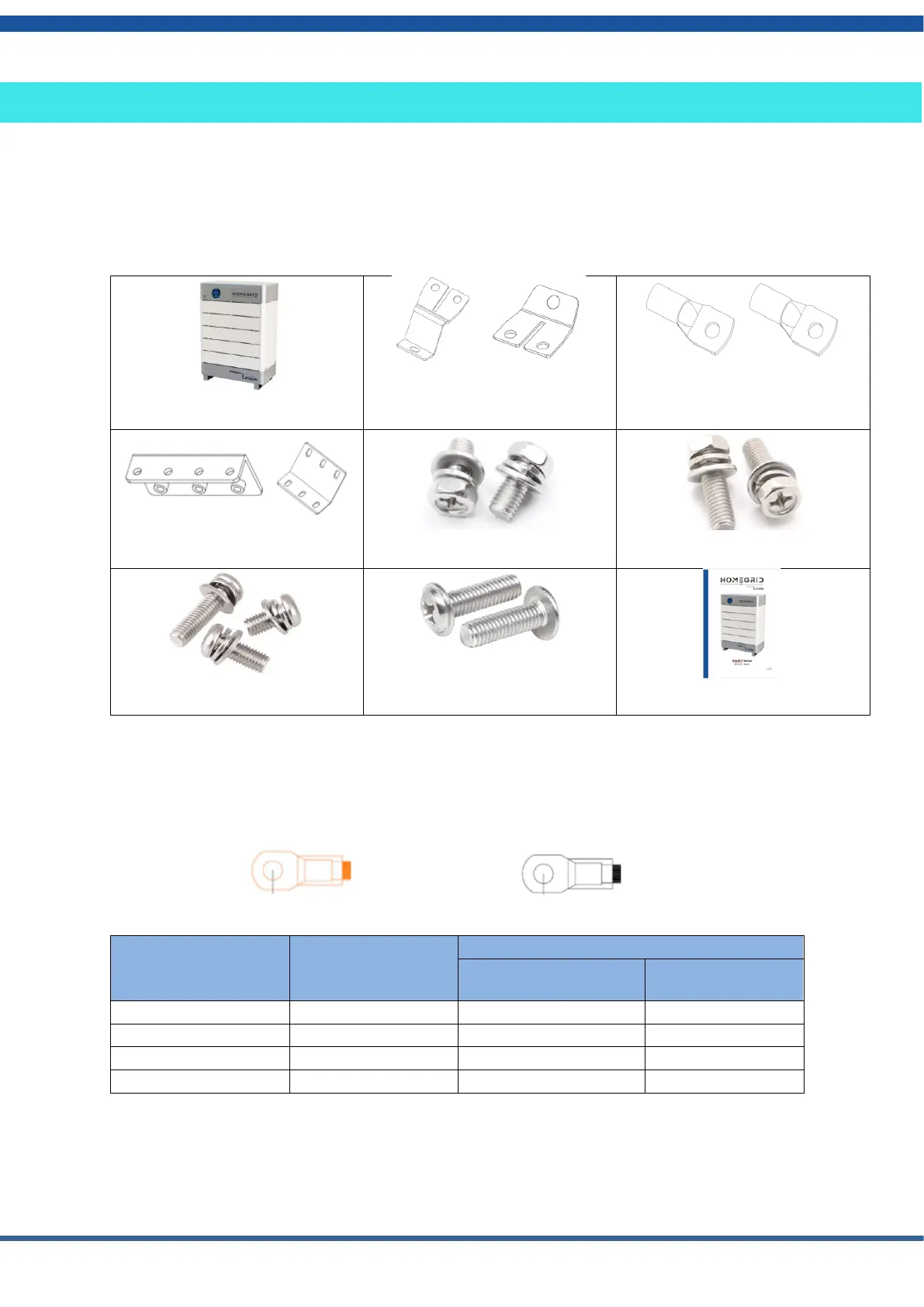

Unpacking and check the Packing List:
1）PACKING LIST
After receiving the system, please check to ensure that all the following components are not
lost or damaged
ESSsystem×1
Positive negative terminals ×2
Battery terminal ×2
Main control fixing bracket×2
M8*16x2
M6*10x6
M4*10x8
M3*12x15
User's manual
2) Connector
Each system will come with a positive connector and a negative connector. The two
connectors are not connected to a cable, so users can use the appropriate cable for the actual
application.
Positive connector Negative connector
Model
Nominal
voltage (Vdc)
Cable specification
AWG
mm
2
PF5-LFP04800-2A01
51.2Vdc
4
25
PF5-LFP09600-2A01
51.2Vdc
1/0
50
PF5-LFP14400-2A01
51.2Vdc
3/0
95
PF5-LFP19200-2A01
51.2Vdc
4/0
120
