Lithion HOMEGRID Stack'd Series - 2.5. System Configuration and Communication

Page 13 Chapter 2: Introduction
2.5. Control Module Switches and Connectors

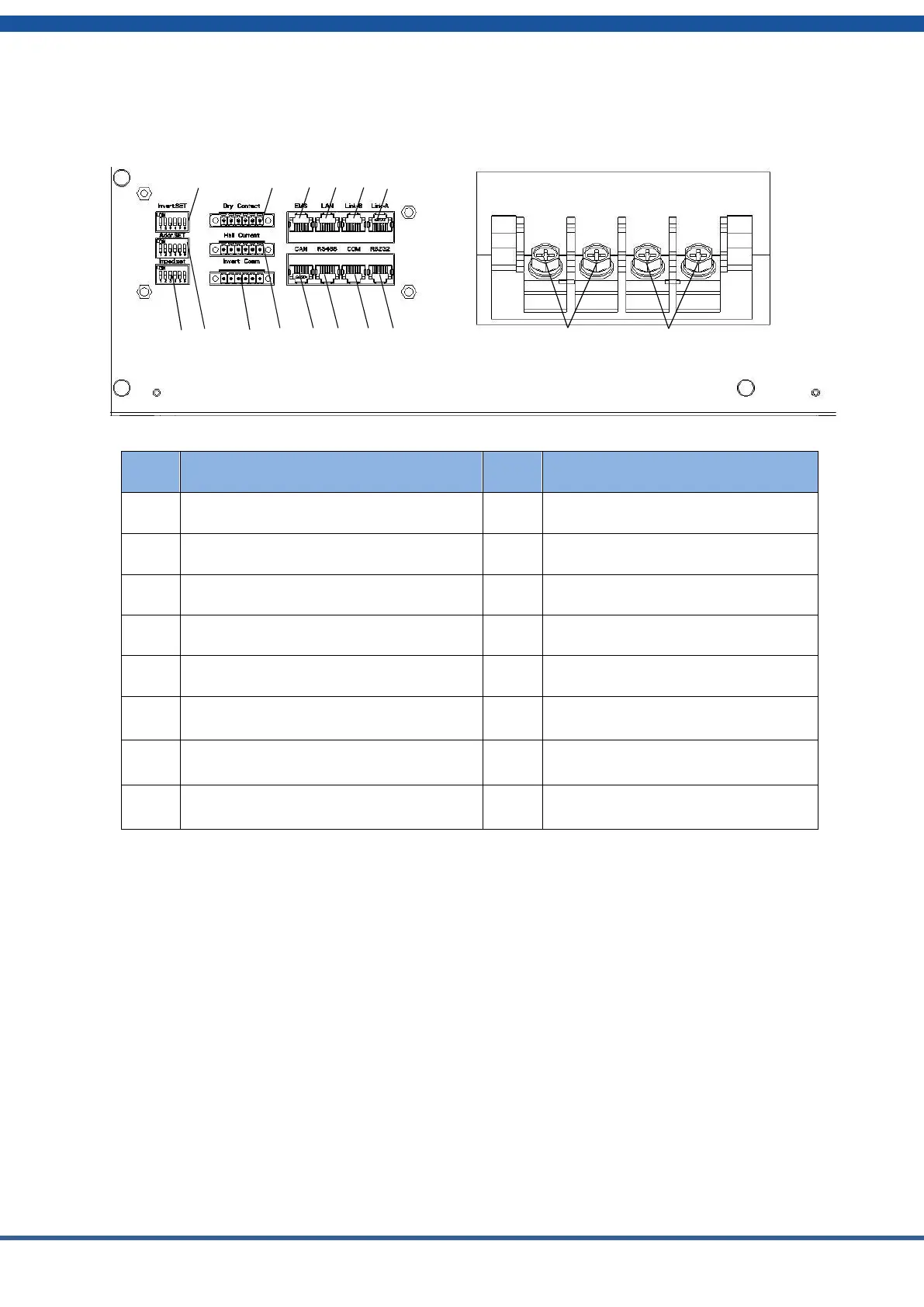

Figure2.4.3 Control Module Terminals and Connectors
No.
Instructions
No.
Instructions
1
Inverter protocol selection switch
9
Parallel communication port B
2
Imped. SET (Reserved)
10
Parallel communication port A
3
Controller Address Dial Switch
11
Inverter CAN communication port
4
Dry Contact (Reserved)
12
Inverter RS485 communication port
5
Inverter CAN/ RS485communication port
13
CAN upgrade communication port
6
Hall Current (Reserved)
14
RS232 communication interface
7
Reserved
15
Charge/discharge negative electrode
8
Reserved
16
Charge/discharge positive electrode
1
4
7 8 9 10
2
3
5
6 11 12 13 14
15
16
