2.3. Specifications

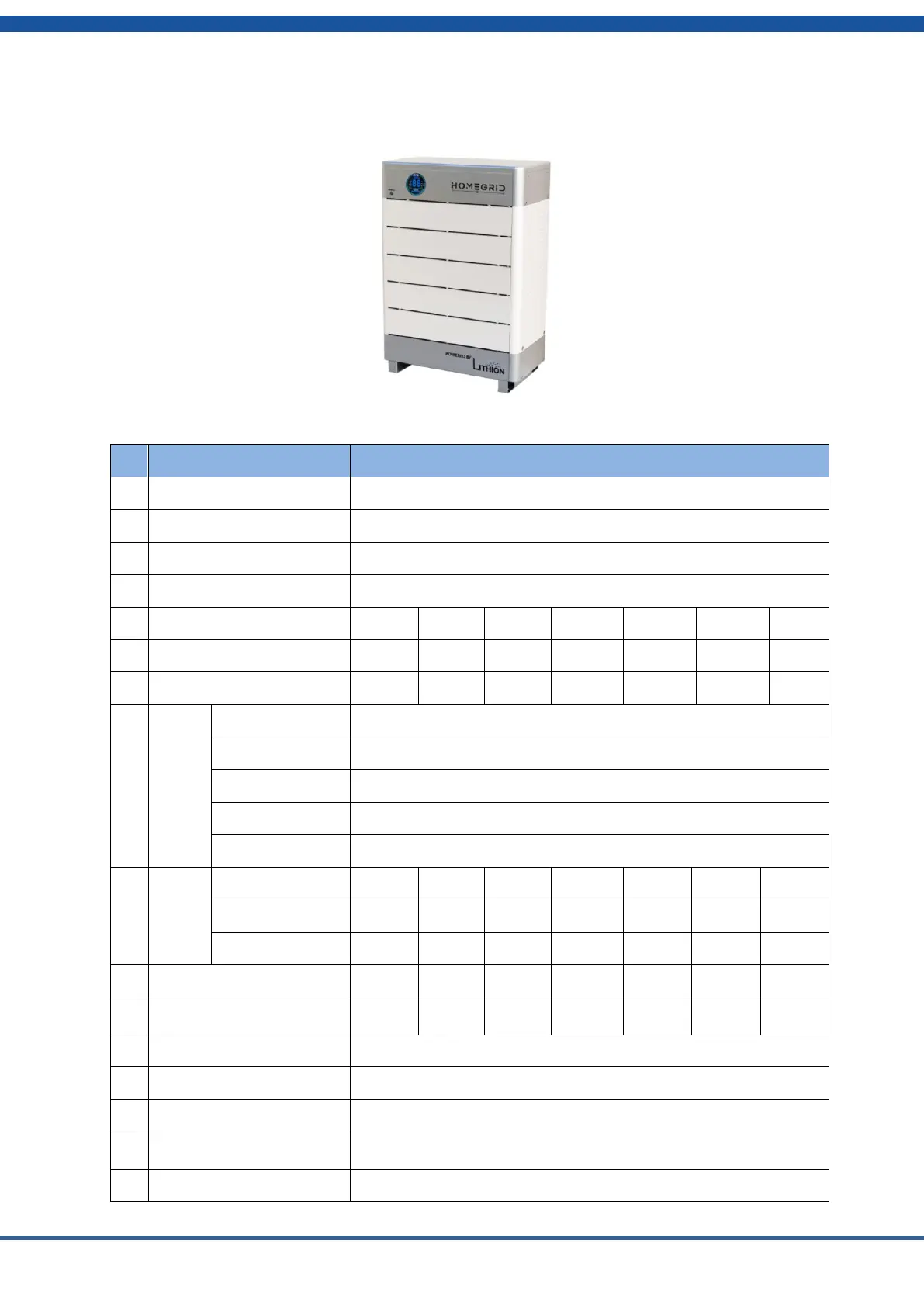

Figure 2.3.1 Assembled System with 5 Battery Modules
No.
Items
Parameters
1
Model
PF5-LFP***00-2A01
2
Main Controller Module
HG-MC100-200M2
3
Battery Module Type
HG-FS48100-15OSJ1
4
Battery Module Chemistry
LiFePO4
5
Battery Module QTY
2
3
4
5
6
7
8
6
Nominal Capacity (Ah)
200
300
400
500
600
700
800
7
Nominal Energy(kWh)***
9.60
14.4
19.2
24.0
28.8
33.6
38.4
8
Voltage
Nominal(V)
48.0
Bulk (V)
52.0
Absorbing (V)
52.5
Float (V)
52.3
Discharge (V)
44.0
9
Current
Max.Charging(A)
180
270
300
300
300
300
300
Max.Discharging(A)
180
270
300
300
300
300
300
Peak for 10s(A)
300
300
500
500
500
500
500
10
Weight (Approx.)
230 lbs.
325 lbs.
420 lbs.
515 lbs.
610 lbs.
705 lbs.
800 lbs.
11
Dimensions (H*W=29”
*D=15.75”)
24.2”
29.4
35.2”
41”
46.8”
52.6”
58.4”
12
Communication
RS485, CAN
13
Cycle Life
6000 times@80%DOD
14
Designed Calendar Life
≥10 years
15
Safety Function
Over-charge, Over-discharge, Over-current, Low/High-temperature, Low-
voltage, Short-circuit Protections
16
Parallel Capability
Maximum 15Stacks (Recommended 6 Stacks)
