2.4. Front Panel Display
The front of the controller module includes a display that shows the status of the system.

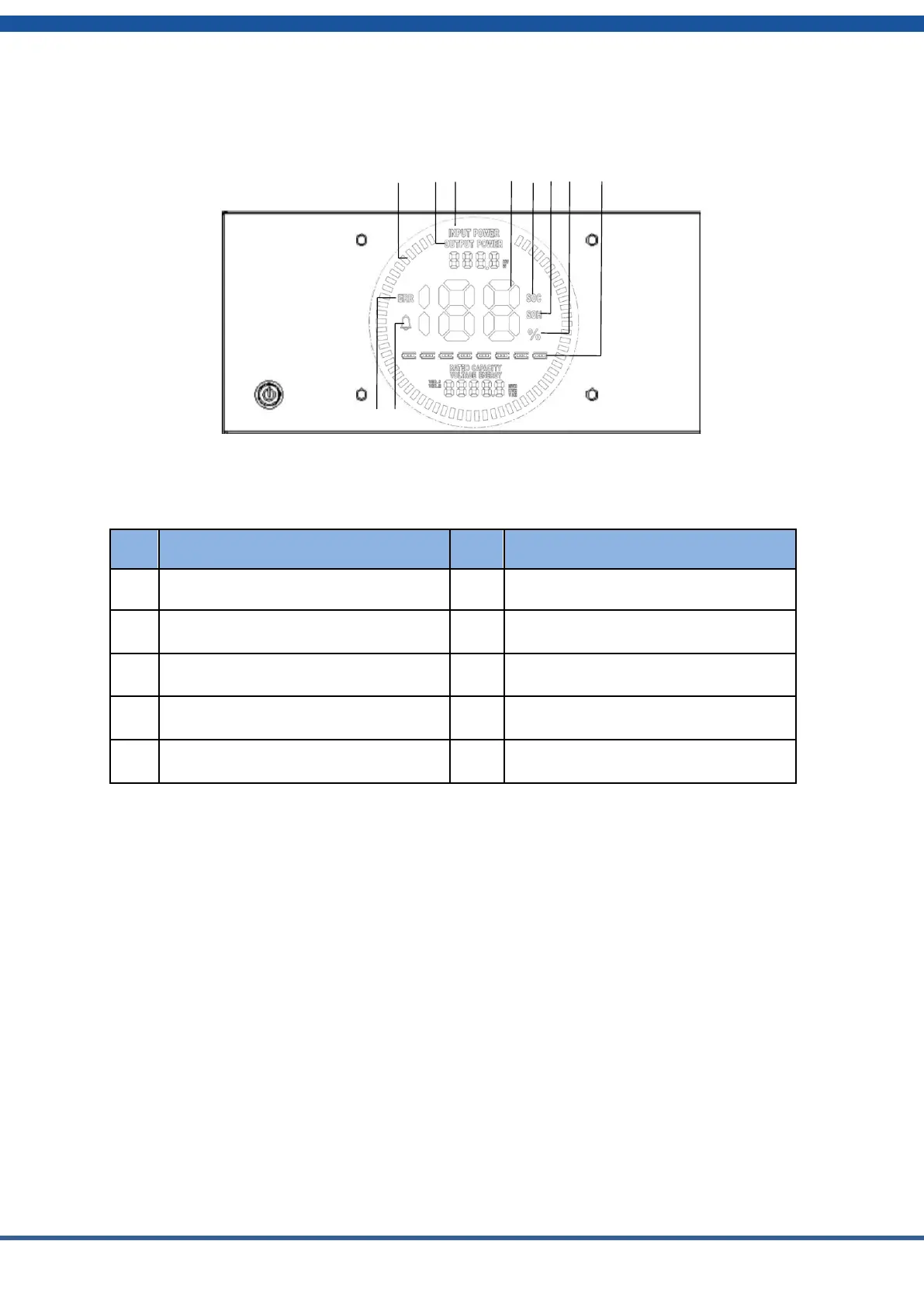

Figure2.4.1 Controller module display
No.
Instructions
NO.
Instructions
1
Animated streamline
6
Battery state of health (SOH)
2
Discharge power
7
Numerical percentage
3
Charging power
8
Number of modules
4
Numerical information
9
Fault (error)
5
Battery state of charge (SOC)
10
Alarm (warning)
9 10
1
2
3
4
5
6
7
8
