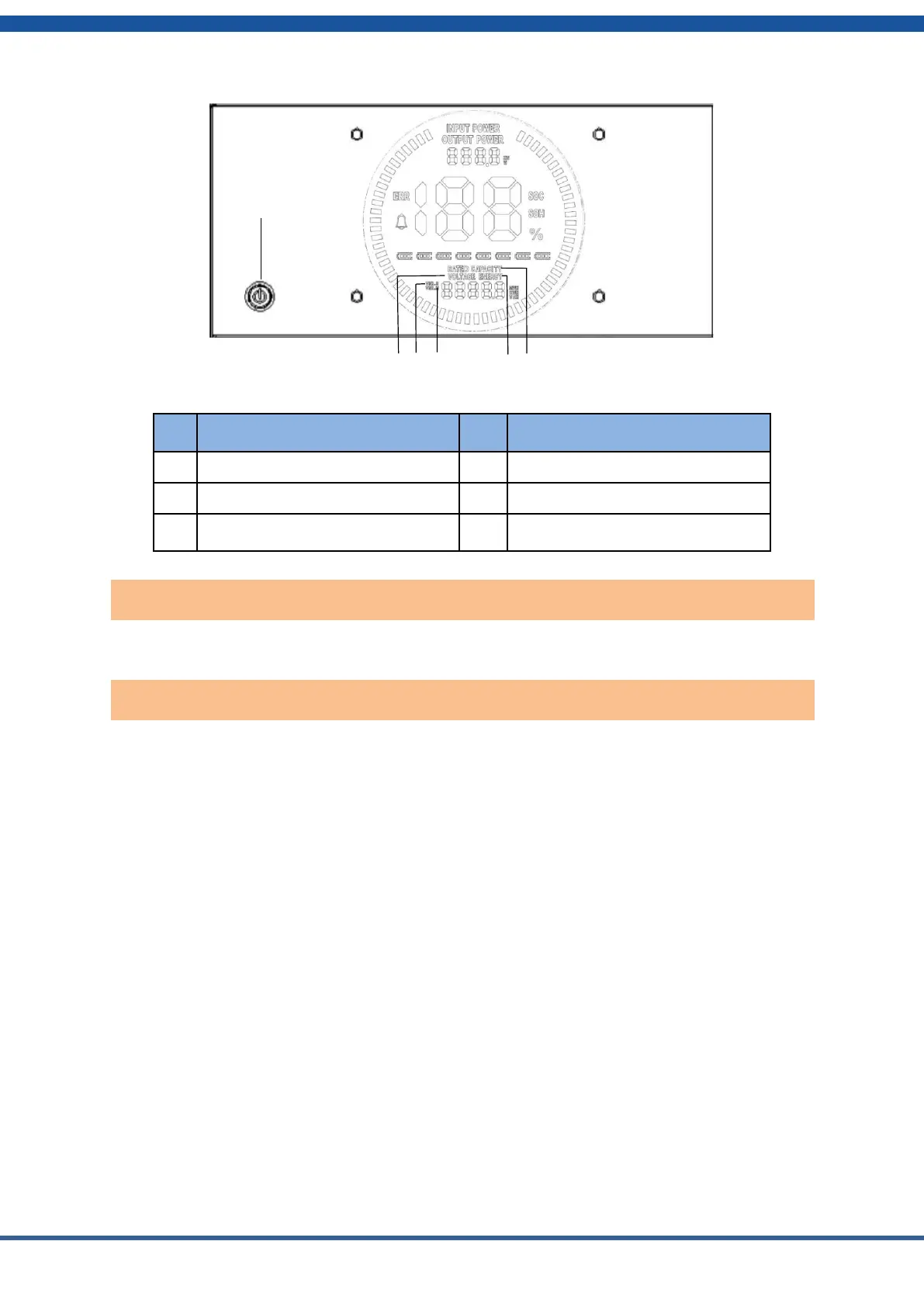

Figure2.4.2 Controller module display details
No.
Instructions
NO.
Instructions
1
Power switch
4
Hardware version
2
Current voltage level
5
Energy throughput
3
Software version
6
Capacity of a new battery
The power switch turns the entire system on and off.
Display screen: Displays the State of Charge (SOC), State of Health (SOH),
charging/discharging power, alarm fault indication, charging and discharging status, and overall
system status.
Power switch
Display screen
