Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 229

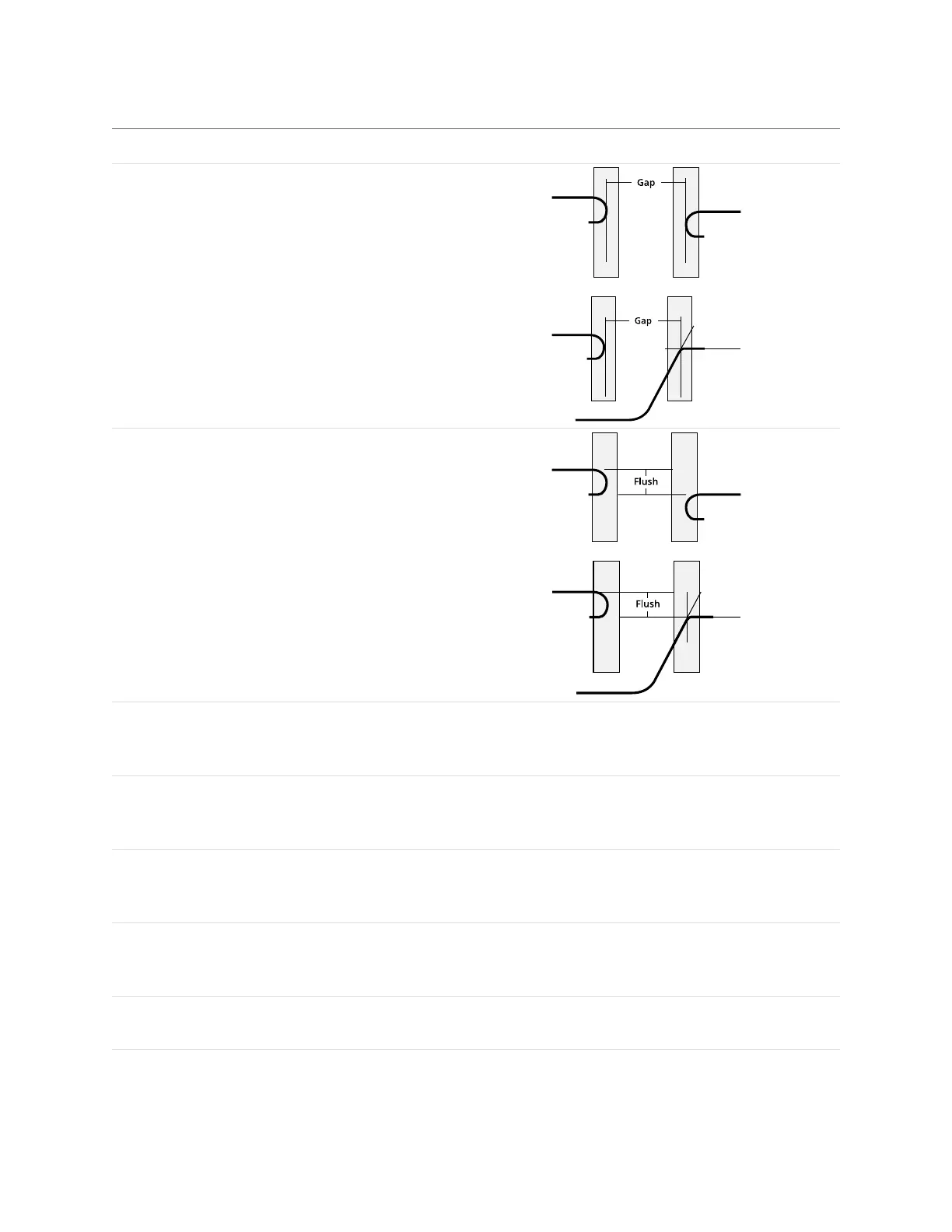

Measurement Illustration
Gap
Measures the distance between two surfaces. The surface
edges can be curved or sharp.
Flush
Measures the flushness between two surfaces. The surface
edges can be curved or sharp.
Left Gap X
Returns the X position of the edge feature on the left side
used to measure the gap.
Left Gap Z
Returns the Z position of the edge feature on the left side
used to measure the gap.
Left Flush X
Returns the X position of the feature on the left side used
to measure flushness.
Left Flush Z
Returns the Z position of the feature on the left side used
to measure flushness.
Left Surface Angle
The angle of the left side surface relative to the X axis.
