Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 247

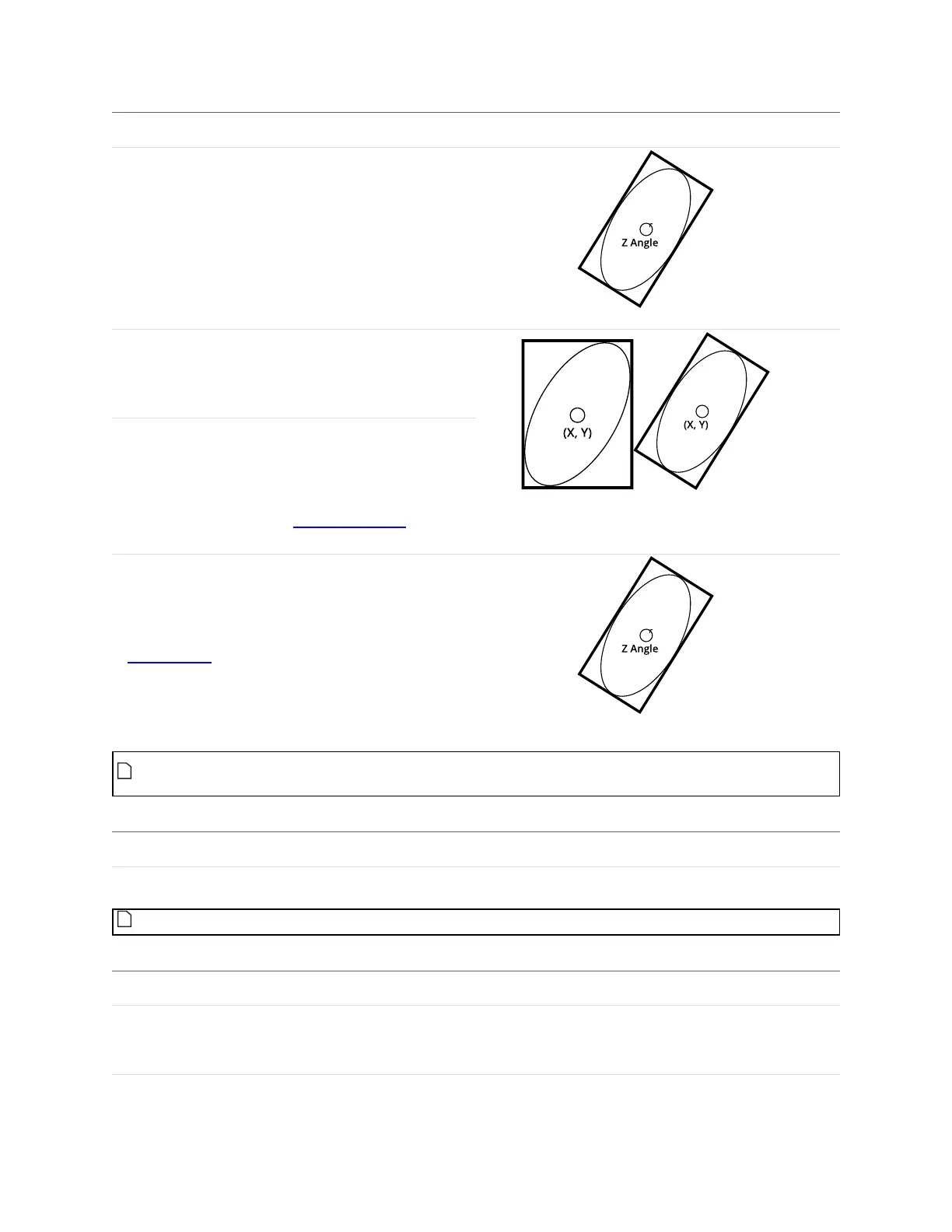

Measurement Illustration
ZAngle
Determines the rotation around the Z axis and the angle of
the longer side of the bounding box relative to the X axis.
If Rotation is not enabled, the measurement returns 90.000
degrees.
In order to use this measurement for angle anchoring, you
must enable Rotation; for more information on anchoring,
see Measurement Anchoring on page 194.
Global X
*
Determines the X position of the center of the bounding
box that contains the part on the surface from which the part
was extracted.
Global Y
*
Determines the Y position of the center of the bounding
box that contains the part on the surface from which the part
was extracted.
If the part is extracted from a continuous surface, the Y
origin of that surface is at the encoder starting position.
Global Z Angle
*
Determines the rotation of the longer side of the bounding
box around the Z axis on the surface from which the part was
extracted.
If part matching is enabled, the returned value represents
the rotation of the part before part matching rotates it.
If Rotation is not enabled, the measurement returns 90.000
degrees.
*These measurements are mostly useful with parts extracted from a surface. For more
information on parts, see Part Detection on page 137.
Type Description
Center Point
The center point of the bounding box.
Features
For more information on geometric features, see Geometric Features on page 190..
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 183.
Parameters
