Gocator Line Profile Sensors: User Manual

Getting Started • 43

Mac OS X v10.6

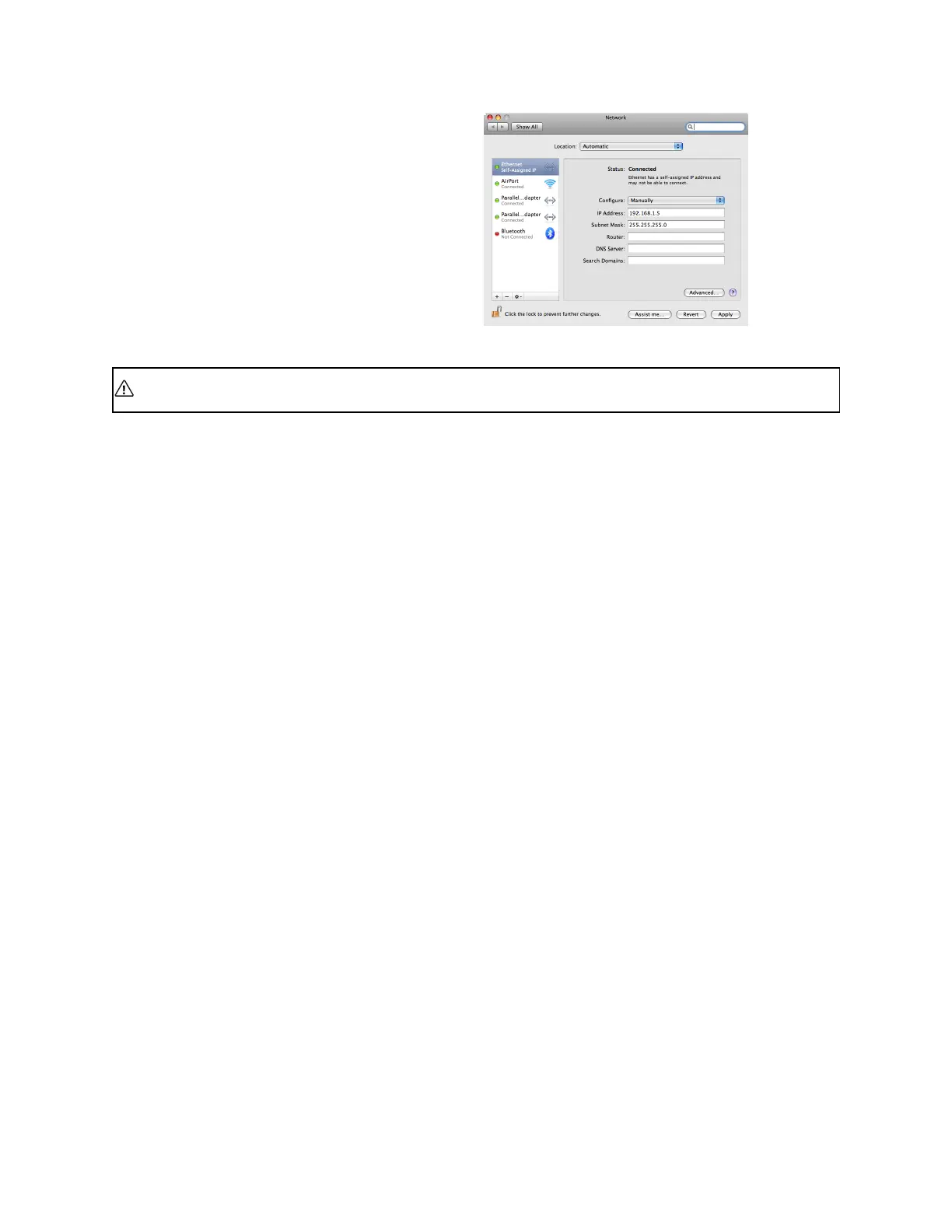

a. Open the Network pane in

System Preferences and select

Ethernet.

b. Set Configure to Manually.

c. Enter IP Address "192.168.1.5"

and Subnet Mask "255.255.255.0",

then click Apply.

See Troubleshooting on page 581 if you experience any problems while attempting to establish a

connection to the sensor.
