Gocator Line Profile Sensors: User Manual

Tools and Native Drivers • 569

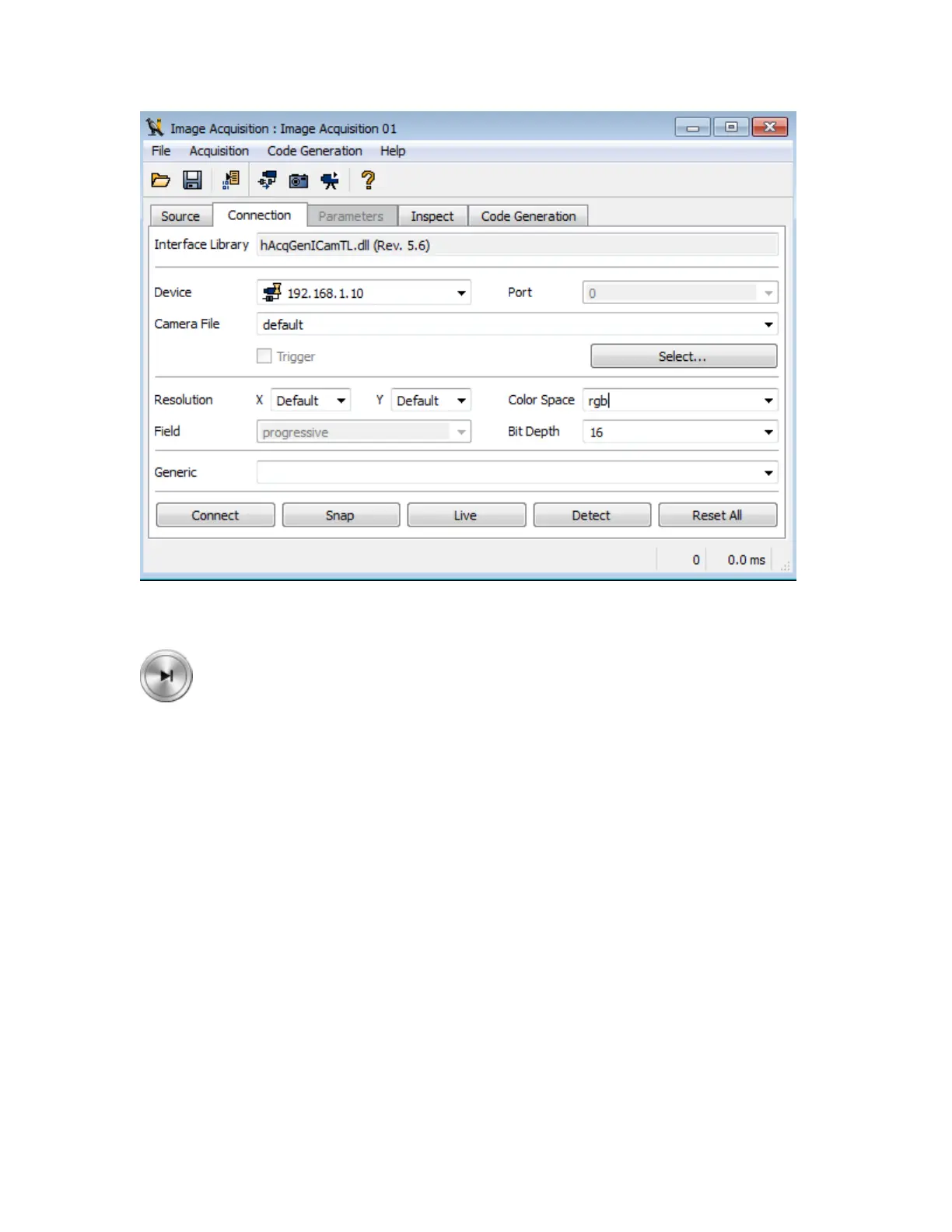

13. In the Connection tab, set Color Space to RGB and Bit Depth to 16.

14. In the Gocator web interface, click the Snapshot button to trigger the output of a surface.

The output displays in the Halcon Graphics Window.
