Gocator Line Profile Sensors: User Manual

Specifications • 624

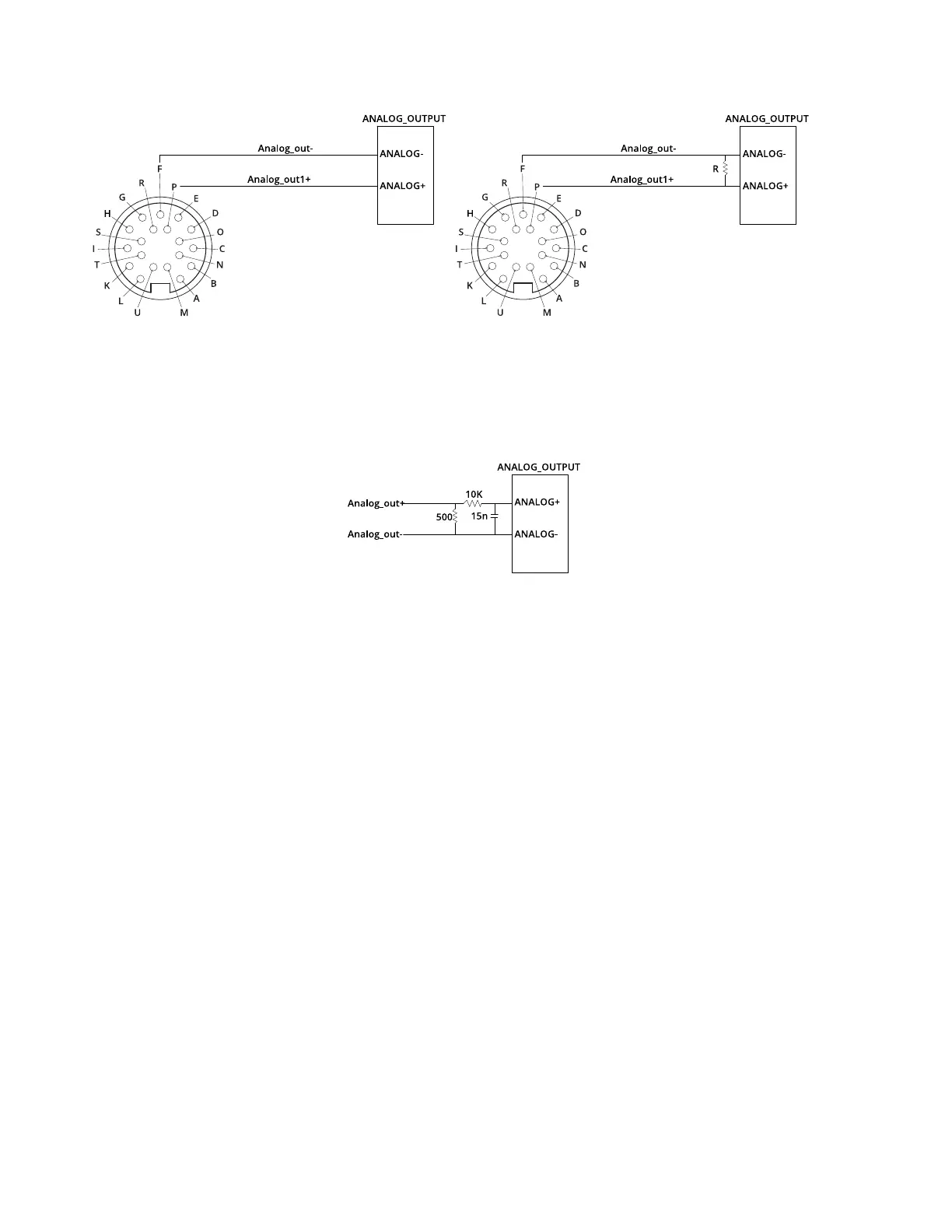

Current Mode Voltage Mode

To configure for voltage output, connect a 500 Ohm ¼ Watt resistor between Analog_out+ and Analog_

out- and measure the voltage across the resistor. To reduce the noise in the output, we recommend

using an RC filter as shown below.
