Diagnosis Group 2.4.

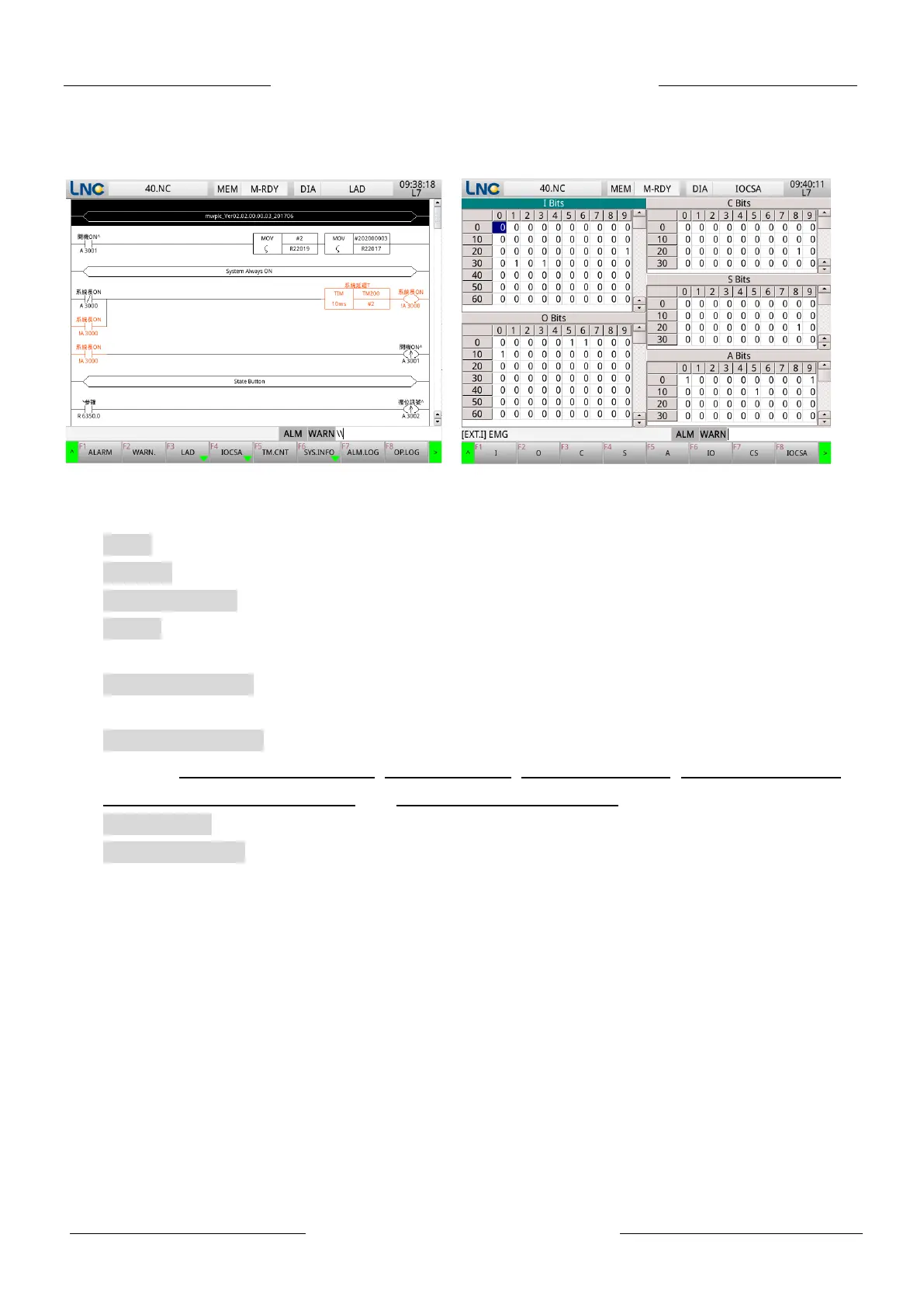

This group is mainly used to view system warnings, alarms, PLC ladder diagrams, IO point
status, system information and operation history. All buttons in this group are listed below:
 Alarm: Displays the current alarm status of the system.
 Warning: Displays the current warning status of the system.
 Ladder Diagram: Displays PLC ladder diagram that is currently running of the system.
 IOCSA: Displays the status of each point of I, O, C, S, and A used in the PLC of current
system.
 Timer and counter: Displays the status of the timer and counter used internally by the
system PLC.
 System Information: Display internal current information about the system. Currently, it
provides mechanical coordinates, encoder values, servo error values, origin grille quantity,
system final output commands and handwheel encoder values.
 Alarm history: Displays the alarm process that has occurred in the system.
 Operation history: Display the relevant operation process of the user's operating system.
