LNC MW5800 Series User Manual

6
LNC woodworking Machine Series Operation Manual
寶元數控 LNC Technology Co., Ltd.
alignment, Scheduling machining, Program Restart, User Switch, User Parameter, Parameter,
System Update, click the button to switch to the function page directly.
1.1.3. Operating area

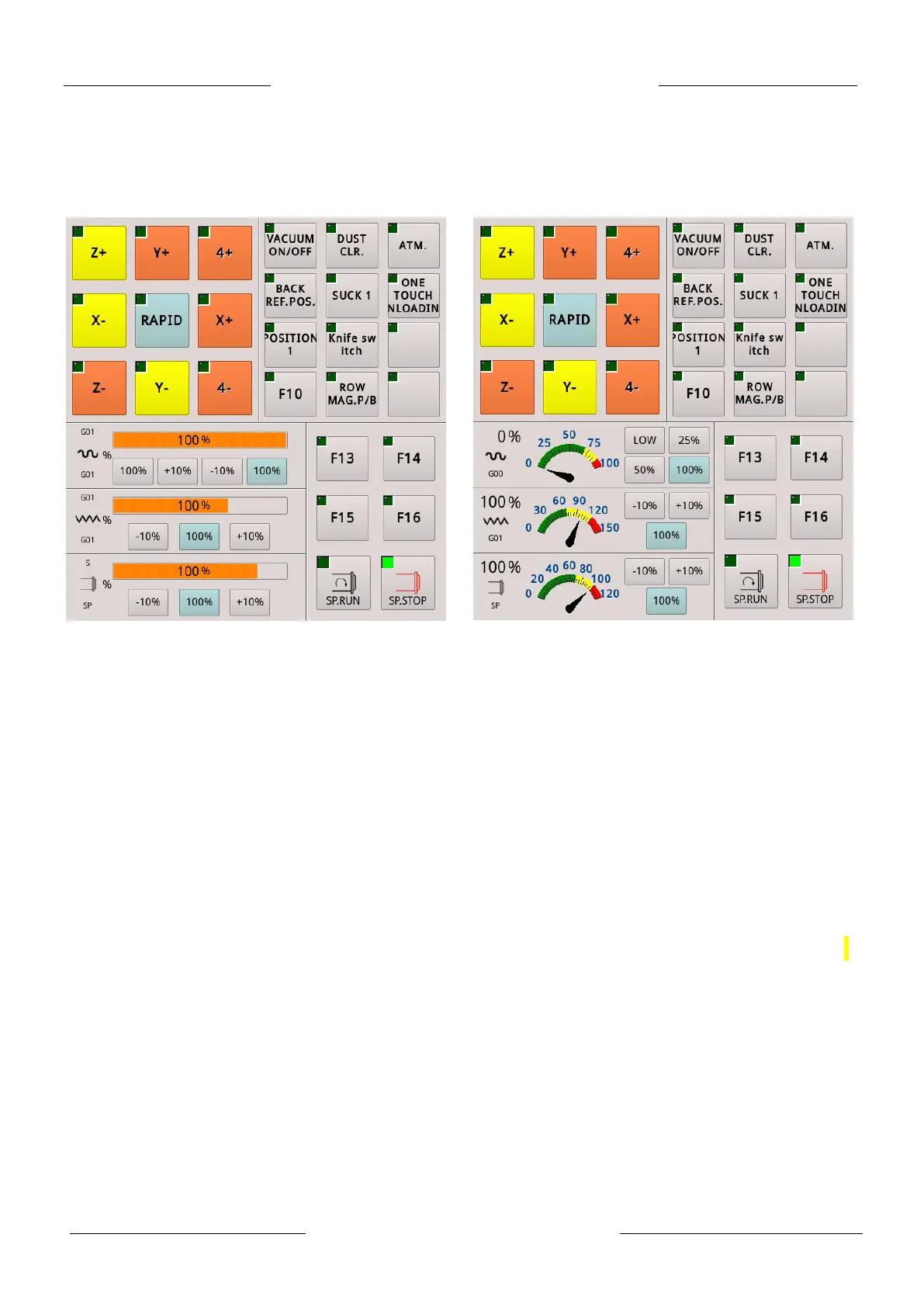

The operation area divide into four parts.
- Direction Key: When manual operation (JOG/INCJOG), the selection buttons for each axial
movement. The middle button is RAPID mode selection button. In JOG mode, press once it
will turn to rapid mode, press again then it will turn to JOG mode.
- Magnification adjustment: Supply three magnification adjustment method, Rapid
Magnification, Feed rate, Spindle magnification, and supply two display types including
progress bar and indicator.
■ Change display type: Level 7> Rapid Magnification display icon
- Selectable type function key: F1-F16 are customize operation menu. The appropriate
function selection could be made according to the actual machine configuration.
▓ Select setting path: Maintenance group>Next >Project Setting
-Fixed type key: Supply two fix function button, divide into SPINDLE RUN and SPINDLE STOP.

LNC MW5800 Series Specifications

General

Brand	LNC
Model	MW5800 Series
Category	Controller
Language	English
