LNC woodworking Machine Series Operation Manual
寶元數控 LNC Technology Co., Ltd.
1. Operation Panel
At present, the woodworking machine system is divided into four major systems: MW2200,
MW2800, MW2900 and MW5800. Among them, MW2800 and MW2900 are the same series.
Therefore, they are only divided into three series actually, and each series has some differences
with others. The following is the introduction of each series.
MW2200 Series 1.1.

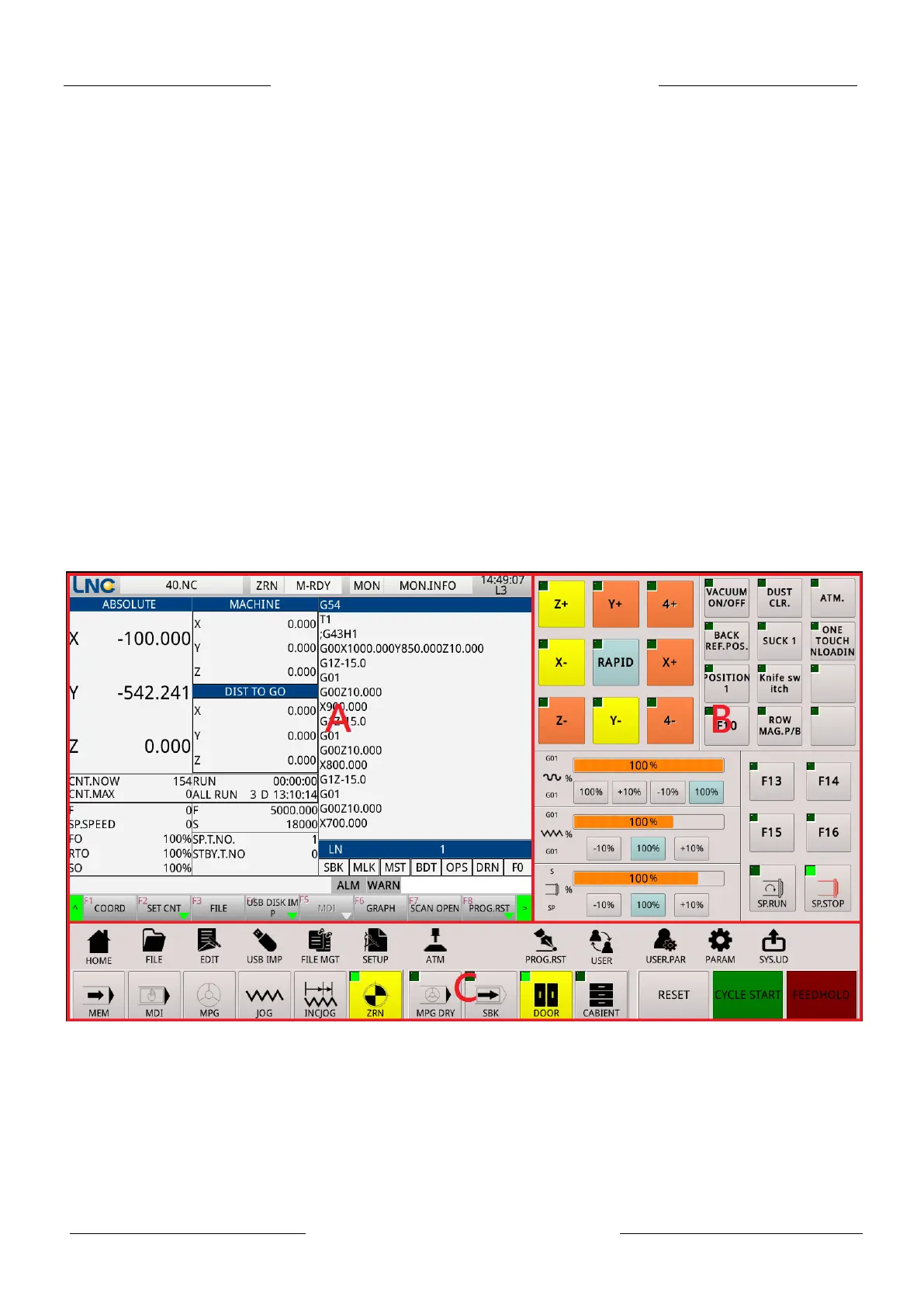

The MW2200 screen is shown in the figure below and is divided into three major areas. The
instructions for each area are as follows:
- A : Main screen area Please refer to 1.1.1. MW2800 is similar or identical to this part of
MW5800.
- B : Mode area Please refer to 1.1.2, and this part is the exclusive screen of MW2200.
- C : Operating area Please refer to 1.1.3, and this part is the exclusive screen of MW2200.
