iii. When using the tool compensation, the machining program must use the coordinate
system set by the Z drop (The preset is G54).
iv. If different workpiece surfaces are used, the corresponding Z-drop coordinate system
needs to be modified.
Tool Magazine Setting 3.6.
3.6.1. Gang tool setting

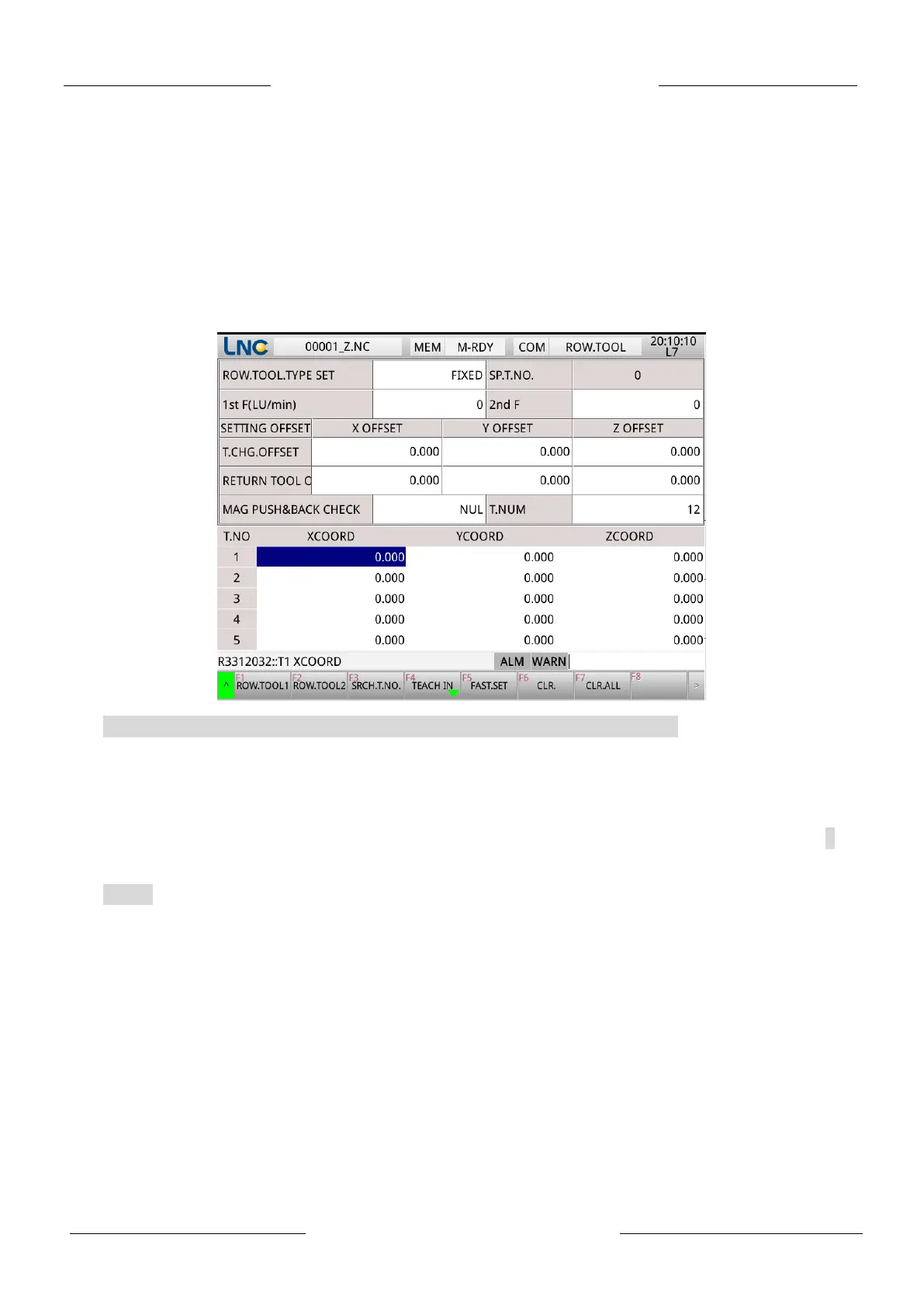

Function Path: Compensation Group > Next Page> Gang Tool Setting
1. If the gang tool magazine is used, the related settings of tool magazine can be performed via
this page.
2. The tool-changing coordinate of gang tool is the actual tool-changing position. If it is
necessary to perform the tool-changing offset, it needs to be set in the offset parameters.
3. Support double row tool magazine.
※ Note: The first speed and second speed of tool take and return must be set the value,
otherwise the alarm will pop up when the tool is changed.
To Next Page
