LOADRITE Sprint User manual

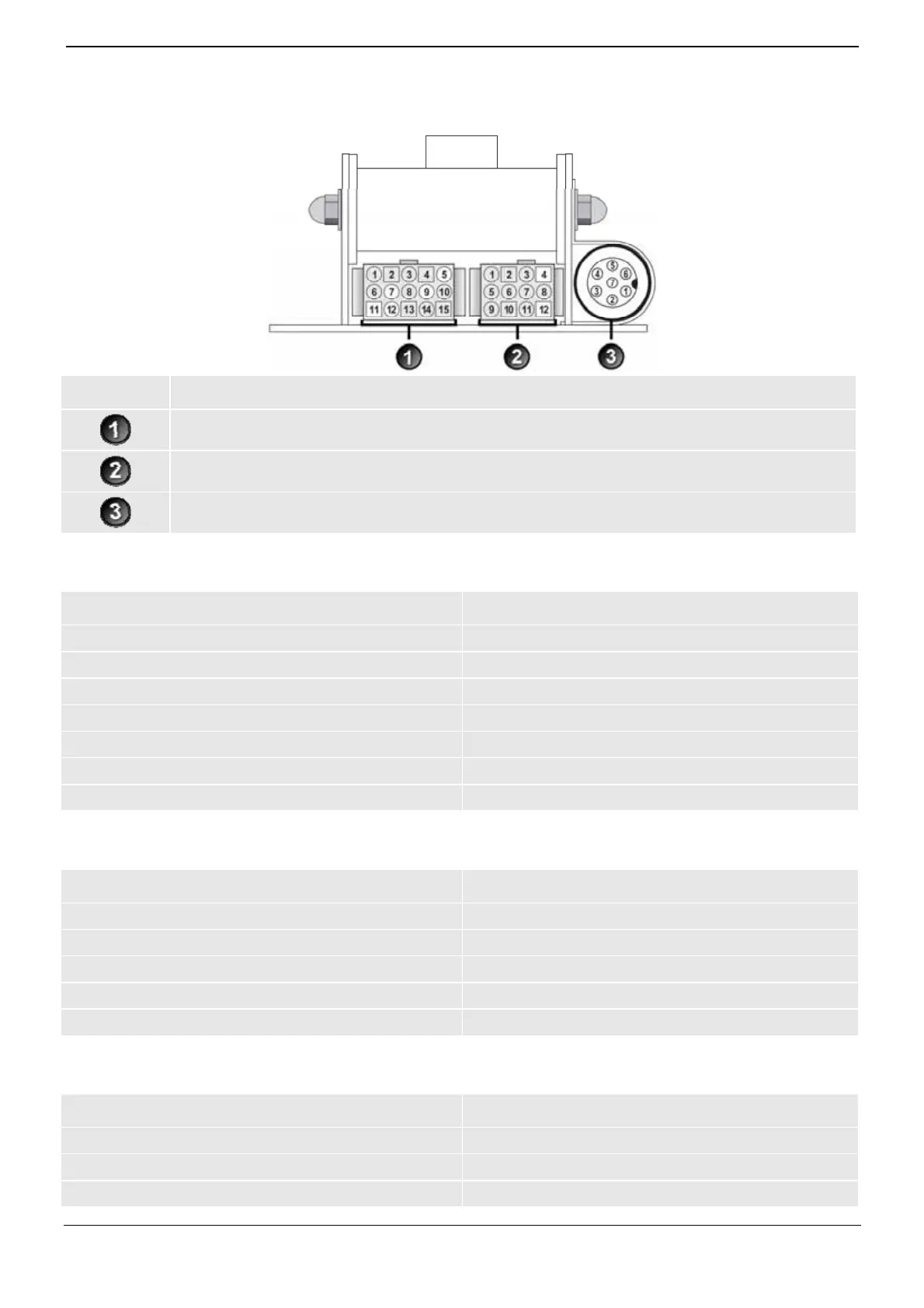

6.8. OUTPUT/INPUT CONNECTIONS
Connection
Power / Control
Printer / Data Logger
Pressure Transducer
6.8.1. Power / Control
1. Negative supply (ground) 2. Positive supply
3. Remote button 2 (clear) 4. Remote button 1 (add)
5. Tilt sensor 1 6. Tilt sensor 3
7. Tilt sensor 2 8. +VAUX
9. Digital out 10. Boom position
11. Stick position 12. CAN hi
13. CAN lo 14. +V raw
15. Ground output
6.8.2. Printer / Data Logger
1. Negative supply to printer 2. Positive supply to printer
3. +VAUX 4. RX2
5. TX2 6. Printer RS232 output
7. Printer busy input 8. LOADRITE Data Module RS232 input
9. LOADRITE Data Module RS232 output 10. Ground output
11. Boot 12. N.C.
6.8.3. Pressure Transducer
1. +VAUX 2. Return pressure input
3. Transducer current input 4. +VAUX
5. Lift pressure input 6. Shield
7. Ground
