Lochinvar 100 Series Installation & Service Manual

1 Determine water heater location
(A)
(D)
(B)
(E)
(C)
24.00
24.00
24.00
24.00
DIR #2000577419

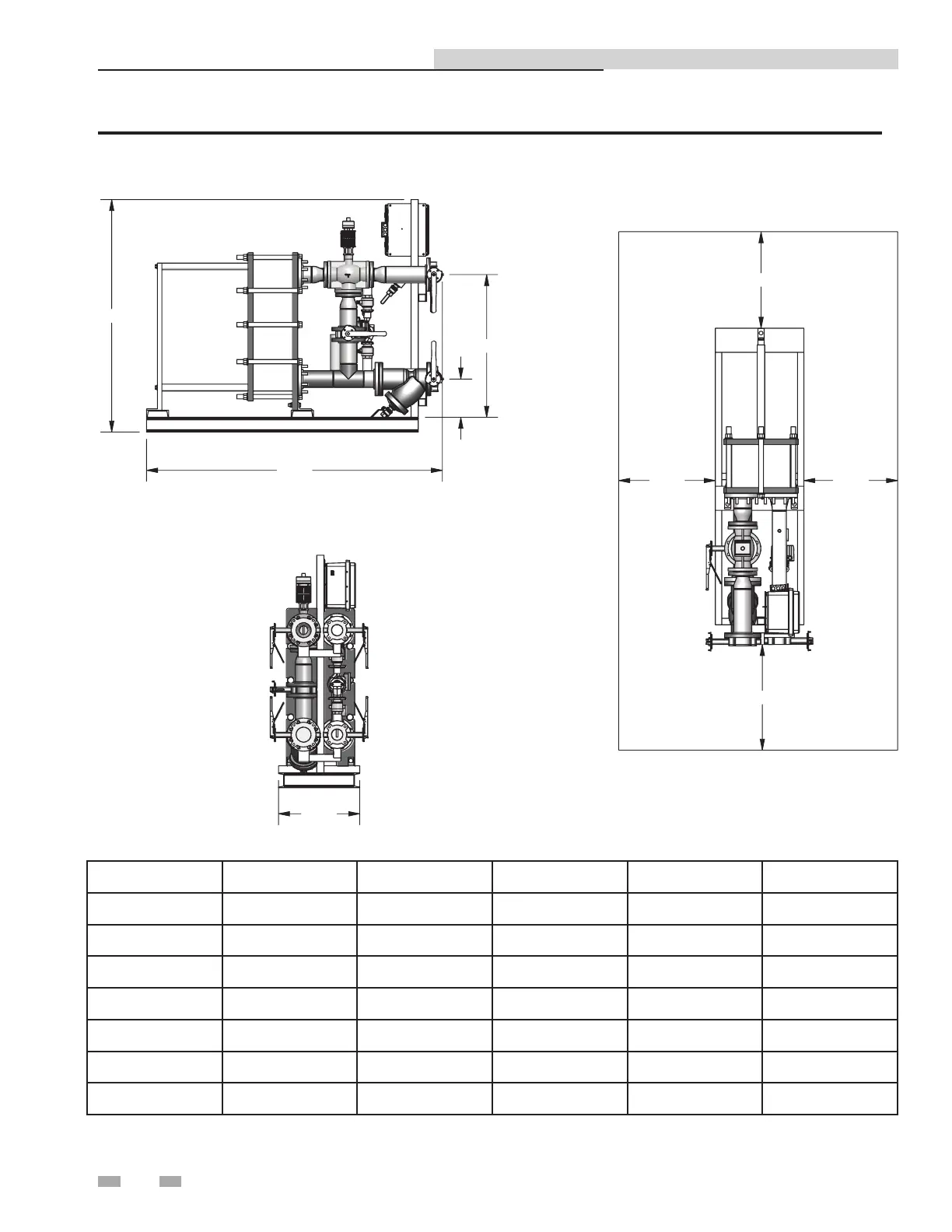

Figure 1-1 IPW Water Heater Clearances and Dimensions
6
Indirect Plate Water Heater Installation & Service Manual
MODEL A B C D E
IPW015DW 55" 44" 15" 35.5" 10.5"
IPW030DW 55" 52" 15" 35.5" 10.5"
IPW050DW 55" 52" 15" 35.5" 10.5"
IPW070DW 63" 61" 22" 42.5" 14.25"
IPW090DW 63" 71" 22" 42.5" 14.25"
IPW105DW 63" 69" 22" 42.5" 14.25"
IPW120DW 63" 79" 22" 42.5" 14.25"
