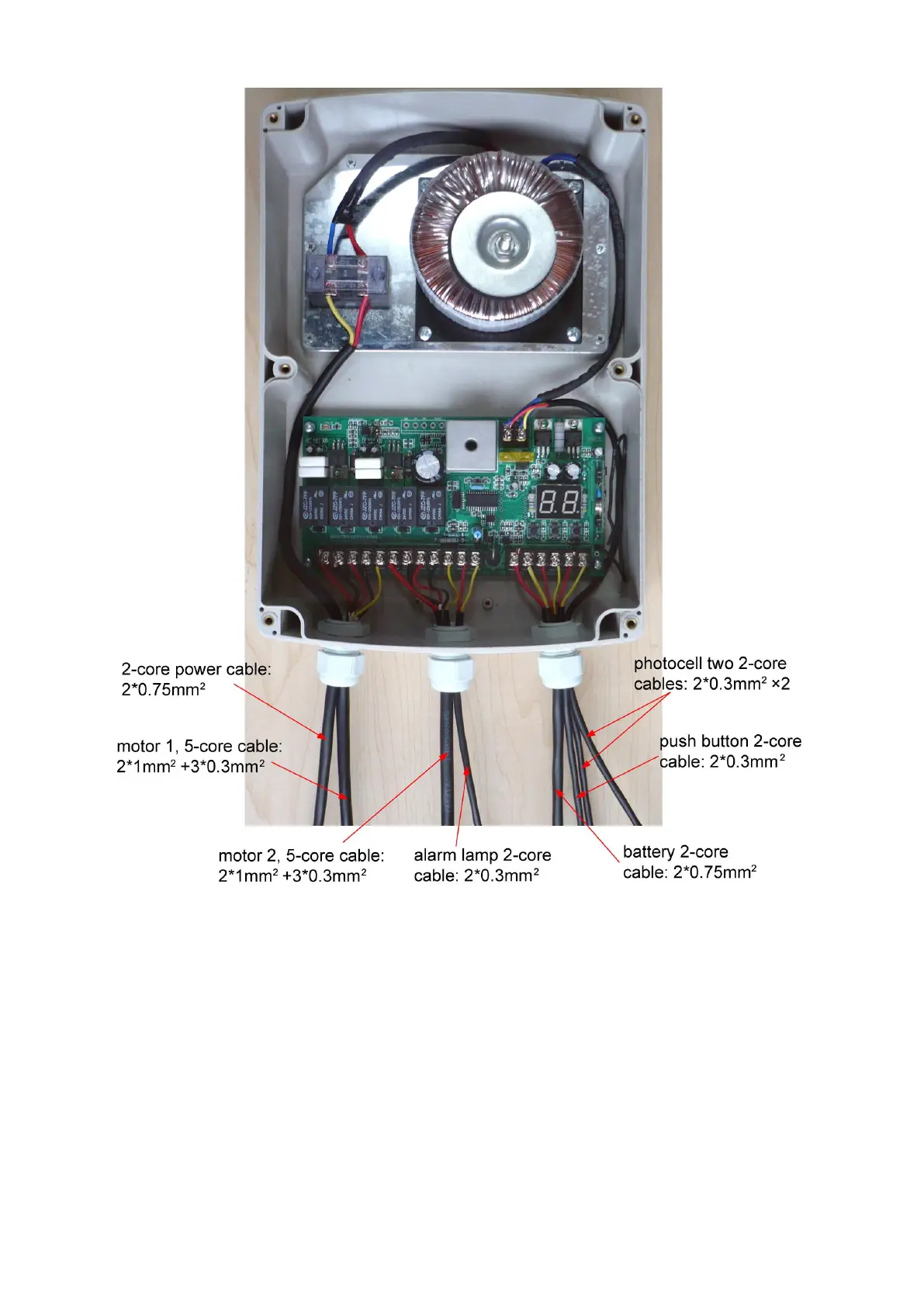

The cables listed from left to right are as follows:
2-core power cable; motor 1, 5-core cable; motor 2, 5-core cable; alarm lamp 2-core cable; battery
2-core cable; push button 2-core cable; photocell two 2-core cables
NOTE: Only motor cables are provided. Other cables are subject to site installation requirement.
CAUTION: Make sure the cable outlet hole in the Control Box is always down during so as to drain off
the water.
