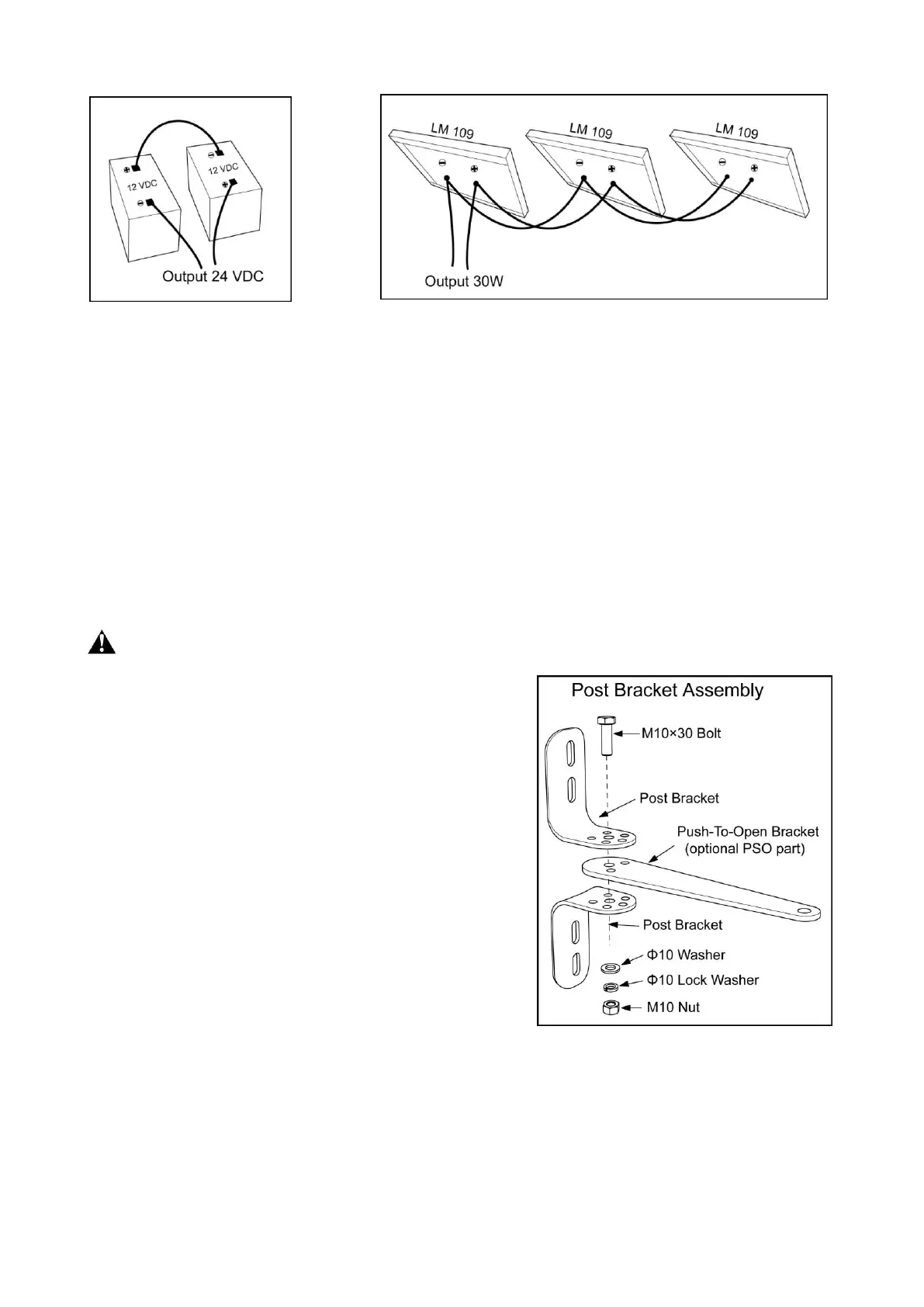

NOTE:
The positive terminal of the solar panel should be connected to the positive terminal of the battery and
vice versa.
The bigger capacity of the batteries is, the longer the system will operate in cloudy days.
The solar energy conversion efficiency may vary with installation places and weather conditions.
Install the solar panel in open area clear of obstructions such as tall trees and buildings which probably
block the sunlight.
The solar panel should be installed with its surface facing with the most sunshine, south-facing in
northern hemisphere and north-facing in southern hemisphere.
Installation for Push-to-Open Gates
Ensure the gate does not open into public areas.
In a Push-to-Open installation, gate opens out from the
property. A Push-To-Open Bracket (PSO part) is required to
be used for each gate. The gate is in the closed position
during the opener is installed.
Step 1
Place the PSO bracket between the two post brackets.
Insert the M10x30 bolt through the center hole of the post
bracket and PSO bracket as shown. Place a ￠ 10
washer , ￠10 lock washer and M10 nut on the bottom of
the bolt and hand tighten.
Step 2
Attach the gate bracket and post bracket assembly to the
opener by inserting a clevis pin. Secure the clevis pins
using the hairpin clips.
To Next Page
