8.2 Pin Connections

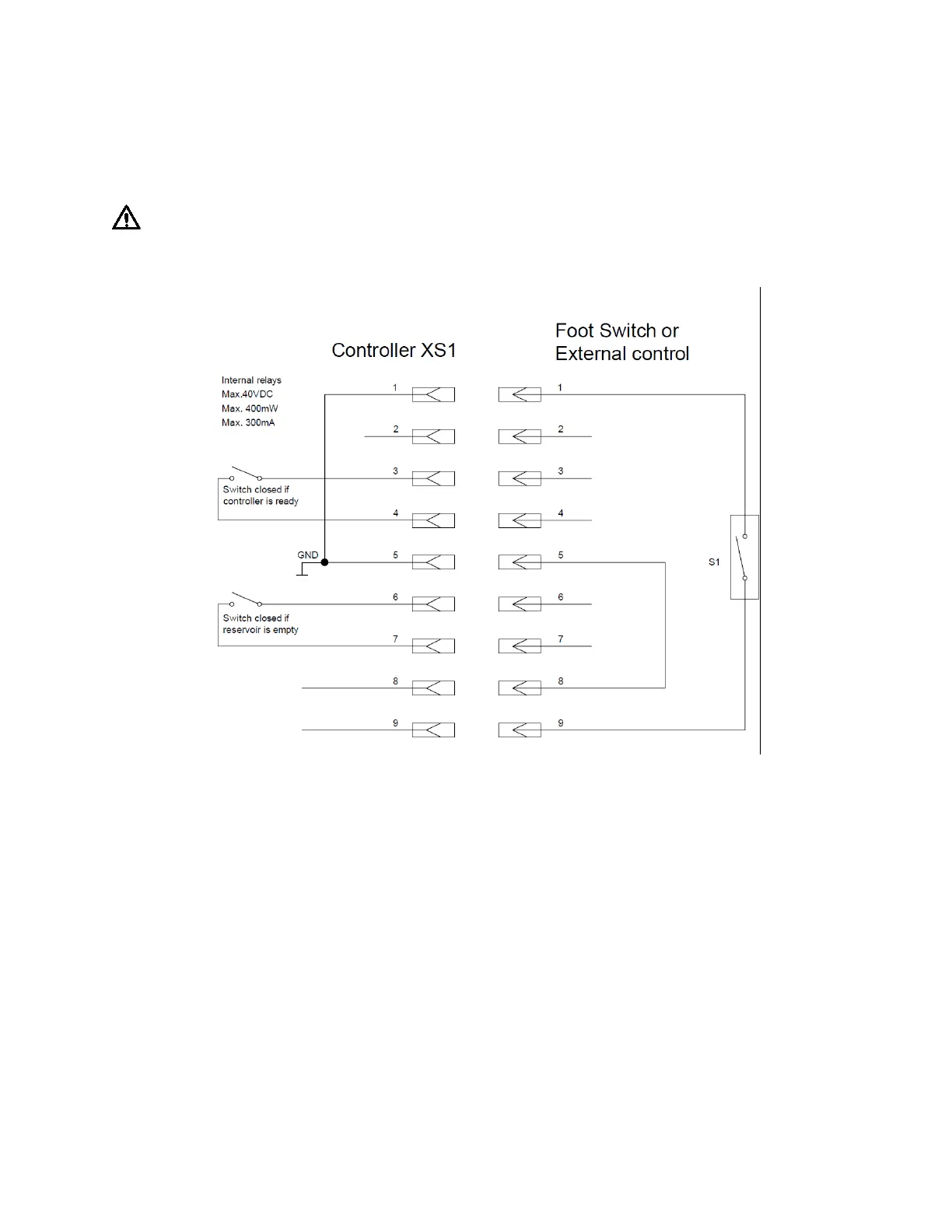

XS1 Start via Footswitch, additional Empty Signal and Ready Signal.
Warning!
Never connect external voltage on pin 1 or pin 9! NEVER short pins 3 and 4, nor 6 and 7 together,
permanent board damage will result.
