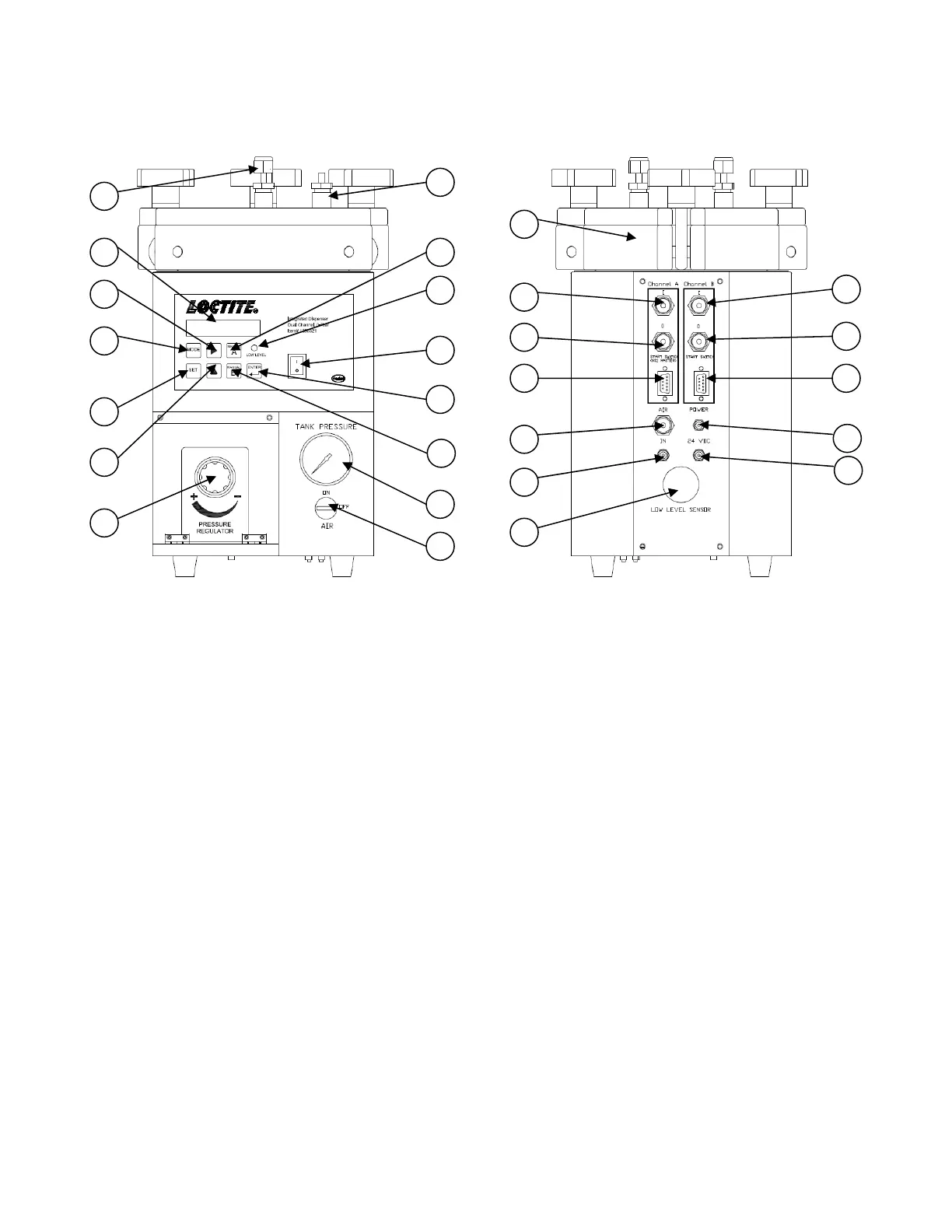

2.5 Control Panel (Front & Back of Controller)
1. Reservoir Fitting
2. Valve Pressure Relief
3. Display
4. Mode Switch
5. Right Arrow Switch
6. Manual Switch for Channel A
7. Low Level Error LED Light
8. Set Switch
9. Up Arrow Switch
10. Manual Switch for Channel B
11. Enter Switch
12. Main Power On/Off Switch
13. Tank Pressure Gauge
14. Air Pressure On/Off Switch
15. Tank Pressure Regulator
16. Channel A On Output
17. Channel A Off Output
18. Channel B On Output
19. Channel B Off Output
20. XS1 Channel A (Master)
21. XS1 Channel B
22. Air Pressure In
23. 24VDC Power In
24. Silencer
25. Low Level Sensor
26. Reservoir
13
7
12
11
6
10
14
15
8
9
4
5
1
2
18
19
21
23
16
20
17
22
24
3
26
25
24
