2 Description

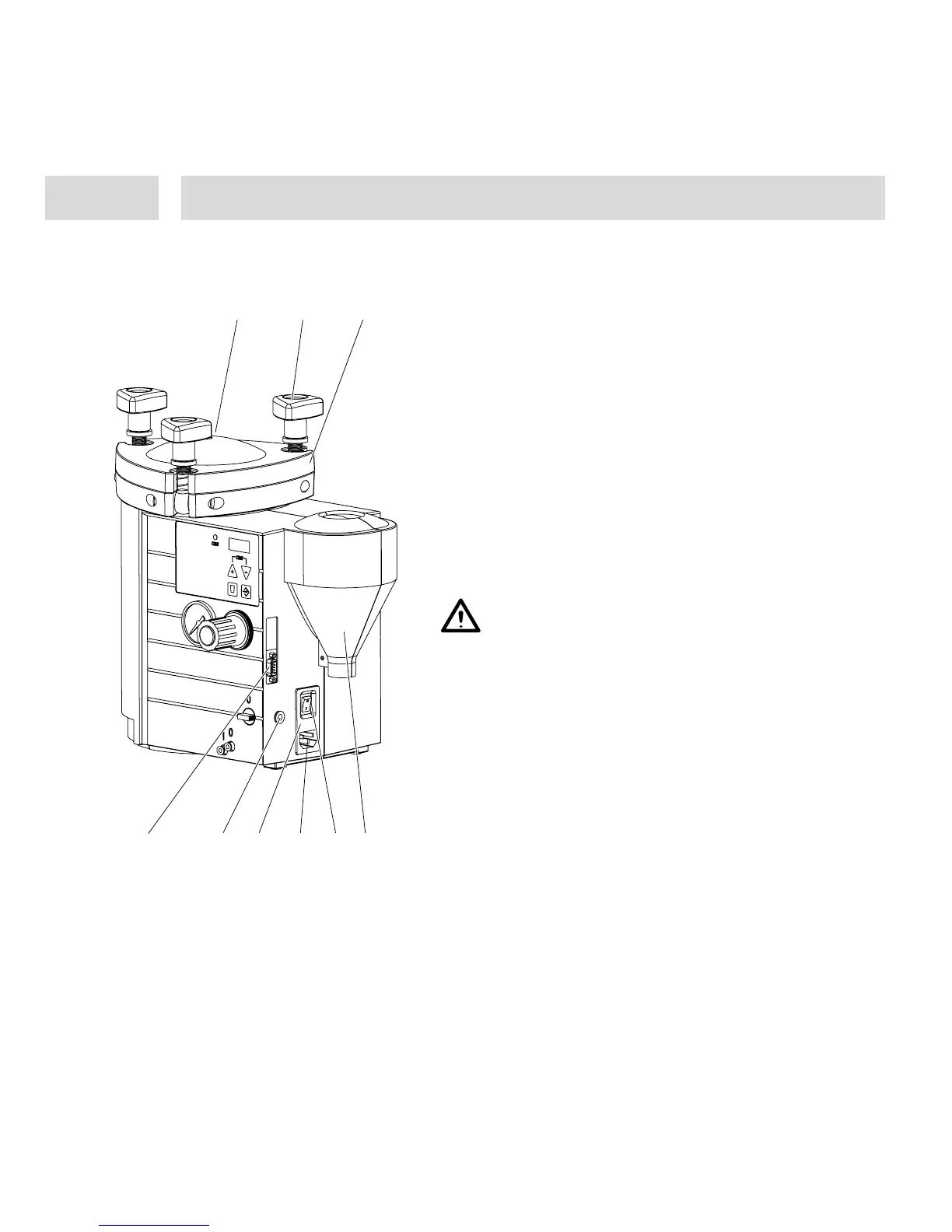

2.2 Operating Elements and Connections
1
Reservoir Tank Fitting ¼” NPT
2
Reservoir Knob
3
Reservoir Lid
4
Drip Funnel
While changing the product bottle, the reservoir lid
can be placed here.
5
Power Switch I/O (ON/OFF)
6
Power Supply Socket
7
Power Fuse, 2 A semi time-lag, glass type
Removing, jumpering or over riding of the
safety devices can result in damage to the unit
and is therefore prohibited!
8
Pneumatic Supply
9
Socket XS 1: Start
The footswitch is connected here. It is also the
output for the READY and EMPTY signals.
12
3
4
5
67
8
9
