9 Annex

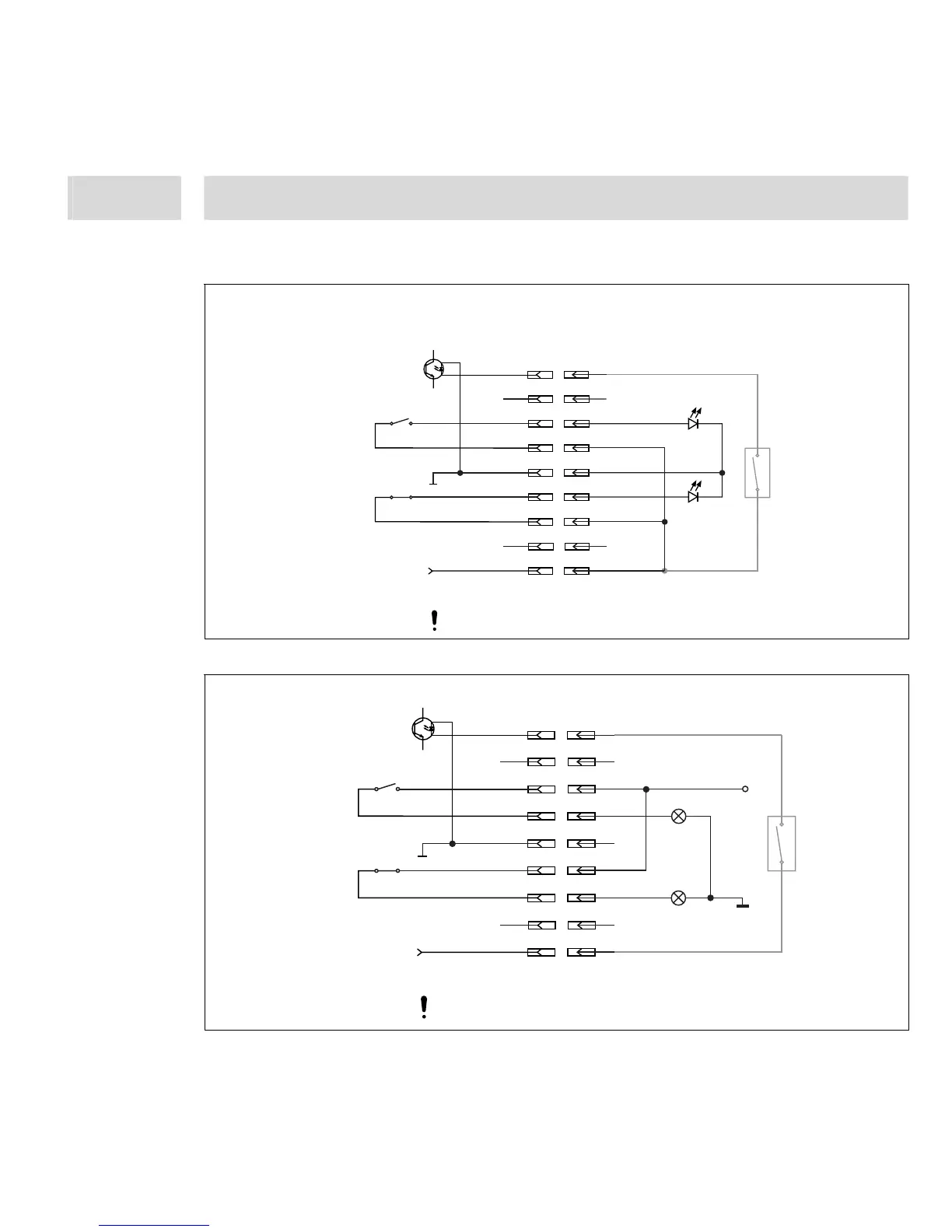

XS 1 Start, additional EMPTY and READY Signal (97009 only), internal Voltage
XS 1 Start, additional EMPTY and READY Signal (97009 only), external Voltage
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
GND
S1
1
2
Start
Controller XS1
+ 24V
output
Switch closed
if controller is ready
Switch open if
reservoir is empty
Internal relays:
max. 30 VDC
max. 30 W,
max. 1 A
Never connect external voltage on pin 5 or pin 9!
READY and EMPTY lamps,
driven with external voltage
READY
FULL
External
+ 24 V DC
External
GND
Start
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
GND
S1
1
2
Start
Controller XS1
+ 24V
output
Switch closed
if controller is ready
Switch open if
reservoir is empty
Internal relays:
max. 30 VDC
max. 30 W,
max. 1 A
Never connect external voltage on pin 5 or pin 9!
READY and EMPTY signals,
driven with internal voltage
(max. 100 mA for both lamps)
READY
FULL
Start
