FL38 (LC-15A2L)
• Caution for handling the LCD panel
1. Work in a clean room. (Humidity: 50% or more)
2. A worker must wear arm bands.
3. Work on a conductive mat.
4. Do not expose the unit to shock such as fall or
vibration.

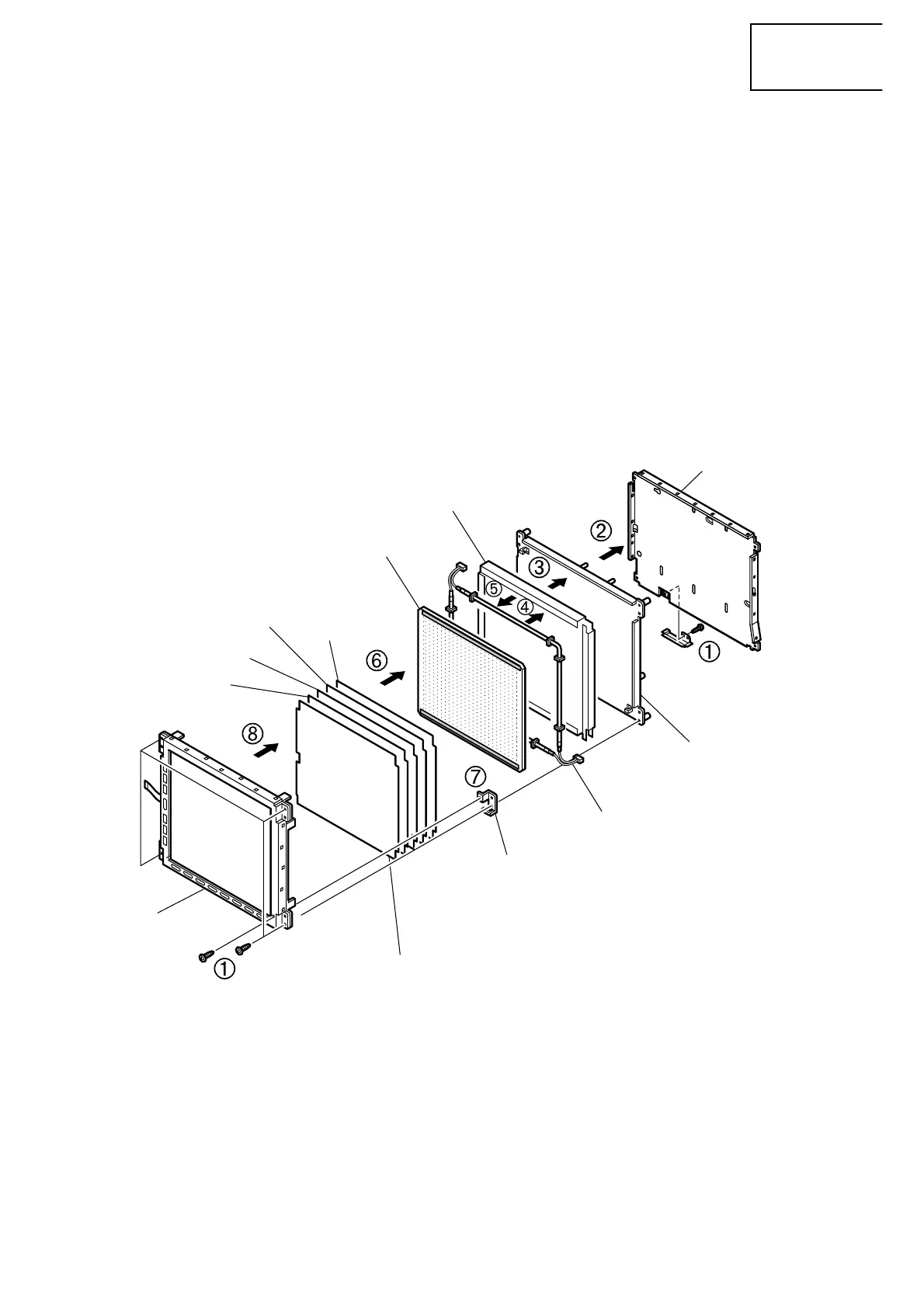

<<Disassembly of LCD Panel>>
1. Remove the six LCD unit fixing screws.
2. Remove the panel shield plate.
3. Remove the light guide sheet holder.
4. Remove the reflection panel lamp unit.
5. Remove the lamp unit.
6. Remove the light guide sheet.
7. Remove the ITO sheet angle.
8. Remove the ITO sheet, diffusion sheet and the
polar
ising sheet.
Panel Shield Plate
Light Guide Sheet Holder
Lamp Unit
(KLMP-0098CEZZ)
ITO Sheet Angle
Polarising Sheet
LCD Display Unit
Wave Sheet
ITO Sheet
Diffusion Sheet
Reflection Sheet
Light Guide Sheet
Reflection Panel
