Preparation

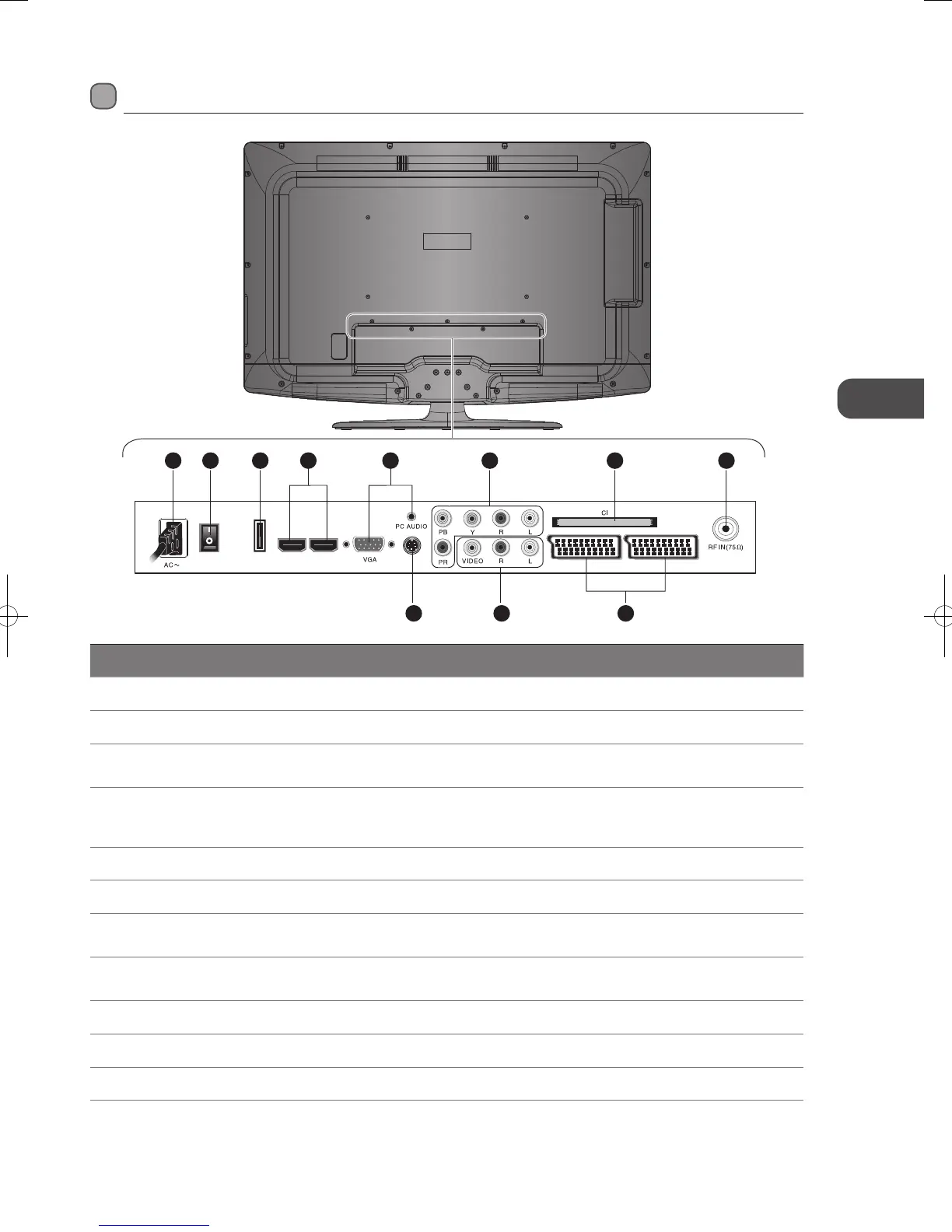

Rear View and Sockets
Item Description
1 AC ~ Connect the mains cable to the mains socket.
2 POWER ON/OFF
Switch on the POWER ON/OFF switch to turn the TV to standby mode.
3 DVR USB port
Allows the insertion of a USB storage device. You can view the recorded DTV programmes
through this port. (Media Mode)
4 HDMI 1 /2
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set-top box, Blu-ray
player, and AV receiver.
5 VGA / PC AUDIO Connect to a computer or other devices with a VGA interface.
6 S-VIDEO
Connect to a VCR, DVD Player, or other AV devices with S-Video output sockets.
7 Y, PB, PR, L, R
Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
8 VIDEO / AUDIO (L/R)
Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
9 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 32 for details.)
10 SCART 1 / 2 Connect to a VCR, DVD Player, or other AV devices with SCART output socket.
11 RF IN (75 Ω) Connect to the aerial socket on the wall with the RF coaxial cable.
