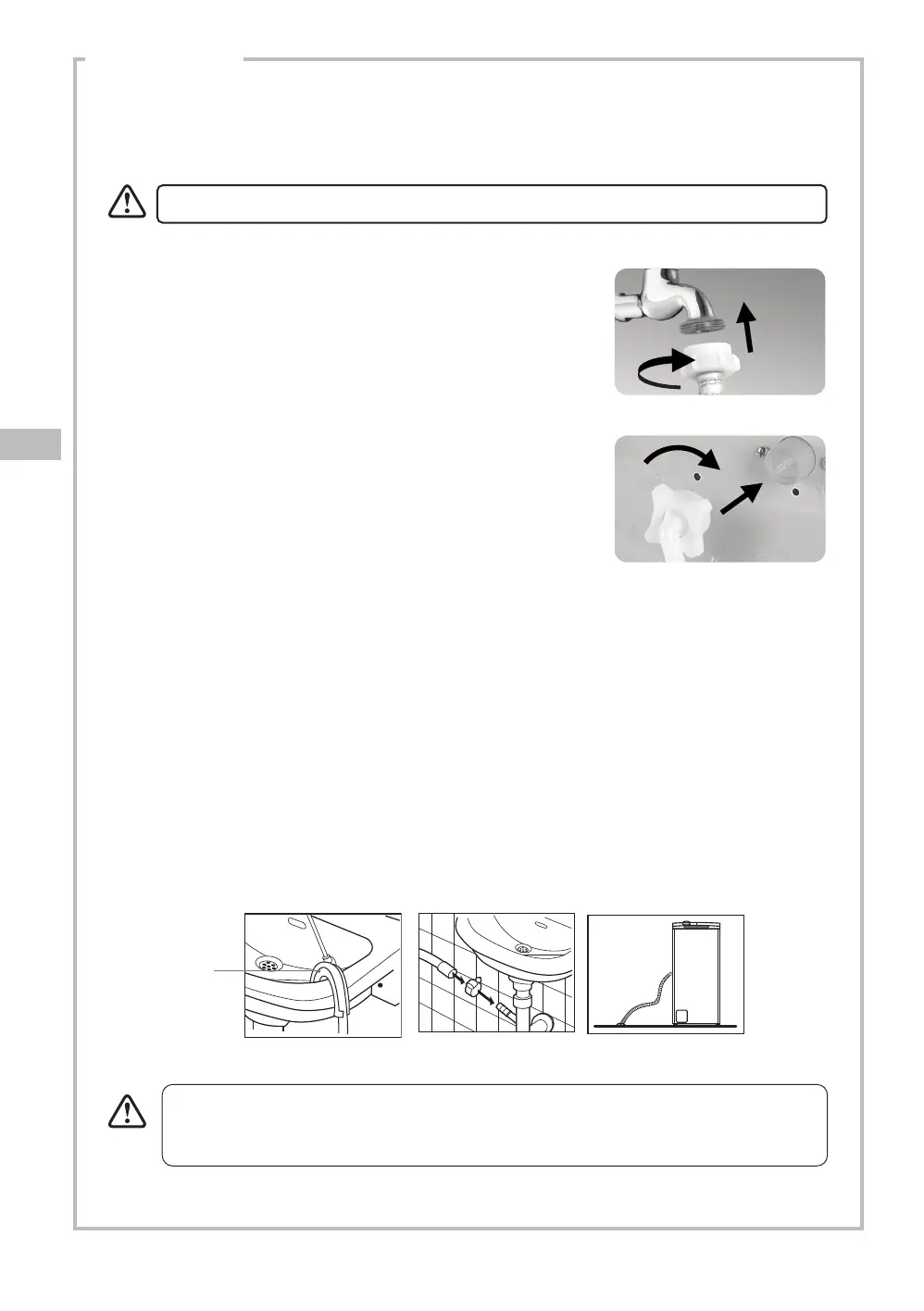

Connecting the Water Supply Hose
1. To prevent leakage from the connection joints, ensure the
rubber washer seals are tted to each end of the water supply
hose. Do not use without the seals in place.
2. Fit the straight end of the water supply hose to the cold water
tap.
3. Connect the angled end of the white headed hose to the
water inlet valve on the machine. Hand tighten the plastic
parts of the connections. If you are unsure, please call a
qualied plumber for safer connections.
4. Open the tap slowly and check that there are no leaks around
the connection joints.
Draining to a drain hose
Water Drain Hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your washing machine should be no more than 85cm from the drain outlet.
Draining to a sink, water trough or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is
sucient to prevent overowing.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to
ow back into the washing machine.
Before connecting to the waste pipe, make sure to check the waste pipe and
remove any stopper or blockage inside, otherwise the unit may not be able to expel
the waste water properly.
Draining to a water trough
This washing machine is designed to connect with cold water supply.
• This machine is designed to connect to the cold water supply. Do not connect to the hot
water supply.
• Use only the new water supply hose supplied. Old hose sets should not be reused.
U-Shape Holder
Draining to a wash-basin
