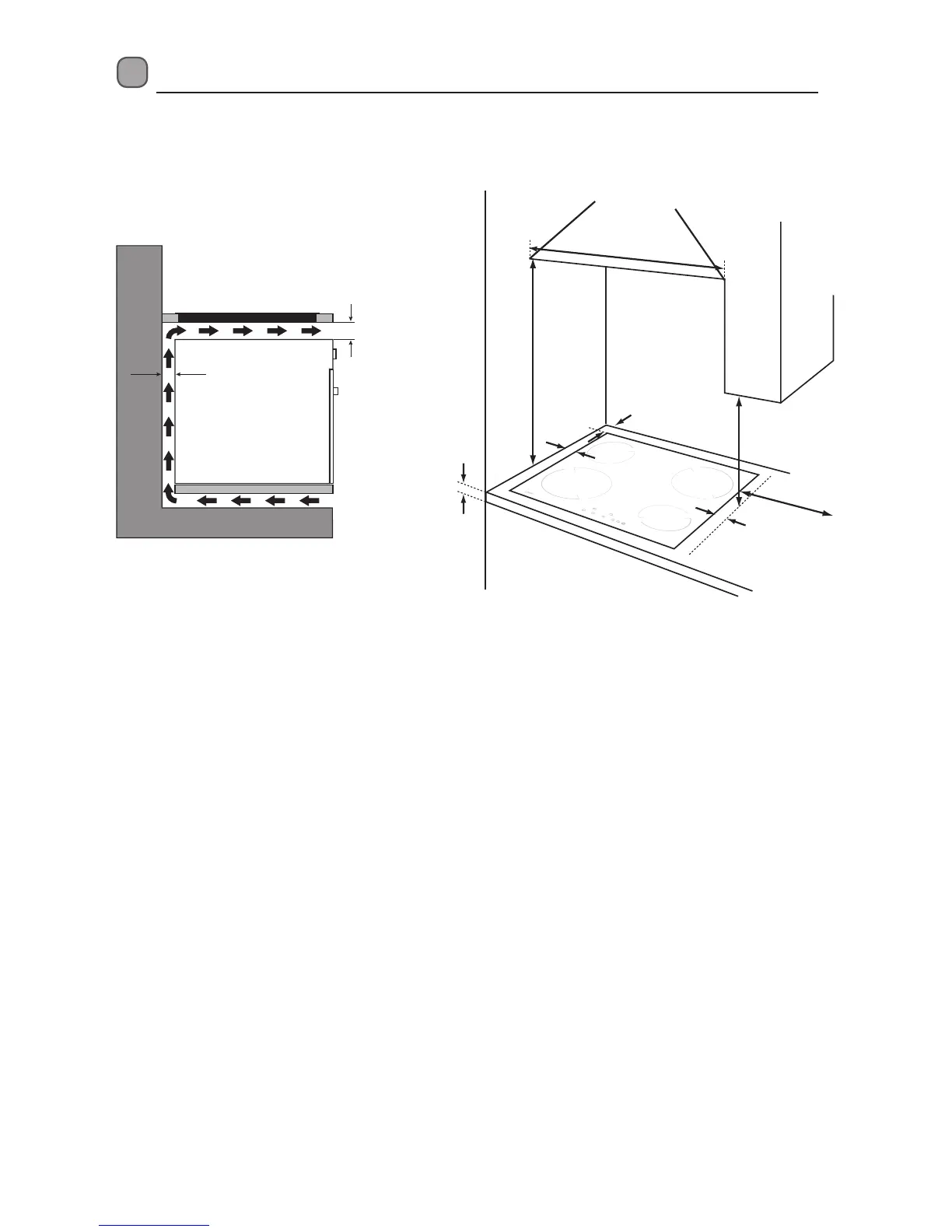

Installing the hob
Measurements shown in the diagram are minimum distances.
If the hob is going to be installed on the top of a built in oven without forced air cooling the proper air vents
must be installed to guarantee adequate ventilation.
600 mm
Min
28
mm
Min
55 mm
Min
50 mm
40 mm
450 mm
Curtains
2000 mm
650 mm
20 mm
25 mm
Min cross
section area
of vent
1200mm
Oven without
forced air cooling
ventilation
