16
* All images are for indication only; please refer to your individual unit for actual item.
Wiring the hob
•
• If the mains cable is damaged and needs to be replaced, this should be done by
a qualified person using the proper tools, so as to avoid any accidents.
• The ceramic hob must be connected directly to the mains supply, an omnipolar
circuit breaker must be installed with a minimum gap of 3mm between the contacts.
• The installer must ensure that the correct electrical connection has been made
and that it complies with safety regulations.
• The mains cable must not be bent or compressed.
• The mains cable must be checked regularly and only replaced by a qualified person.
Before proceeding with the electrical connection, verify that the current carrying capacity of the system
and the socket is adequate for the maximum power rating of the hob.
• Electrical installation of the residence and the electrical current plug in use must be earthed and conform
with safety regulations.
• If there is no dedicated hob circuit and fused switch, they must be installed by a qualified electrician
before the hob is connected.
• Fused switch must be easily accessible once the hob has been installed.
• Do not use adaptors, multiple sockets and/or extension leads.
• A circuit breaker with a contact opening of at least 3mm, rated 32A and delayed functioning type must be
installed inside the supply circuit.
• For the vitroceramic hob, the cable must have these minimum specifications. Type H05VV-F or H05RR-F
4X1.5mm
2
for 3 phase or 3X4mm
2
for single phase. You will find the connection diagram shown on the bottom
of your appliance and in this instruction book (for single phase connection).
• Make sure the cable is routed away from hot parts of the hob.
• An incorrect connection might damage your appliance. The guarantee will not cover such damages.
• All repairs must be carried out by an authorised service personal or a qualified electrician.
• Make sure your hob is disconnected from the mains supply before any maintenance.
• Cooking hobs are not provided with a supply cord.
1
2
3
4
5

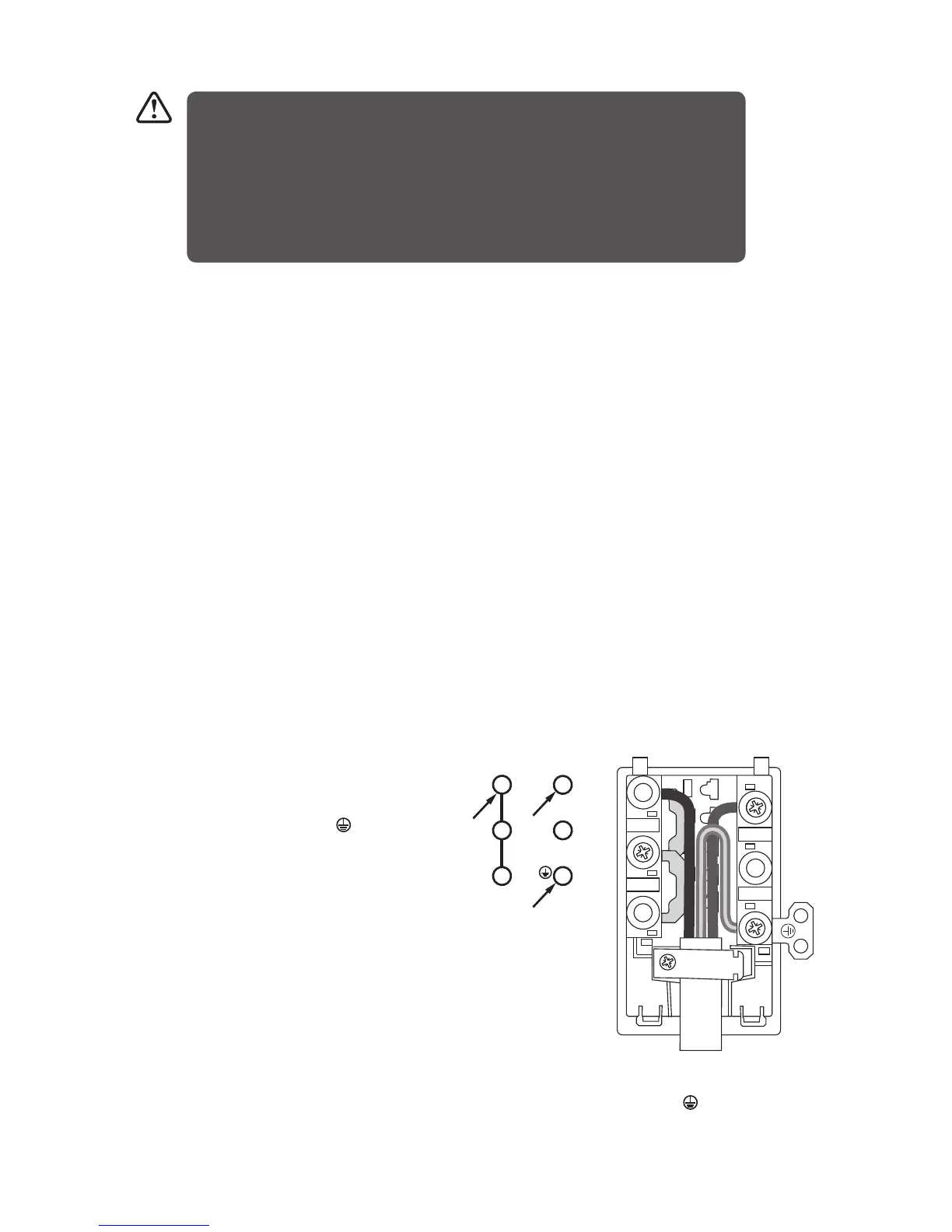

Grounding lead must be connected
to screw with symbol.
1
L
2 5
3 4
N
PE
This appliance must be earthed
Green / Yellow (Earth) to the PE (
) terminal
Brown (Live) wire to the terminal marked L
Blue (Neutral) wire to the terminal marked N
Ensure the cable exits through the cable grip
clamping on the outer sheath of the cable
and fix in place by tightening the fixing screw.
Ensure all screws are adequately tightened.
Do not over tighten as you may risk damaging
the screw threads.
