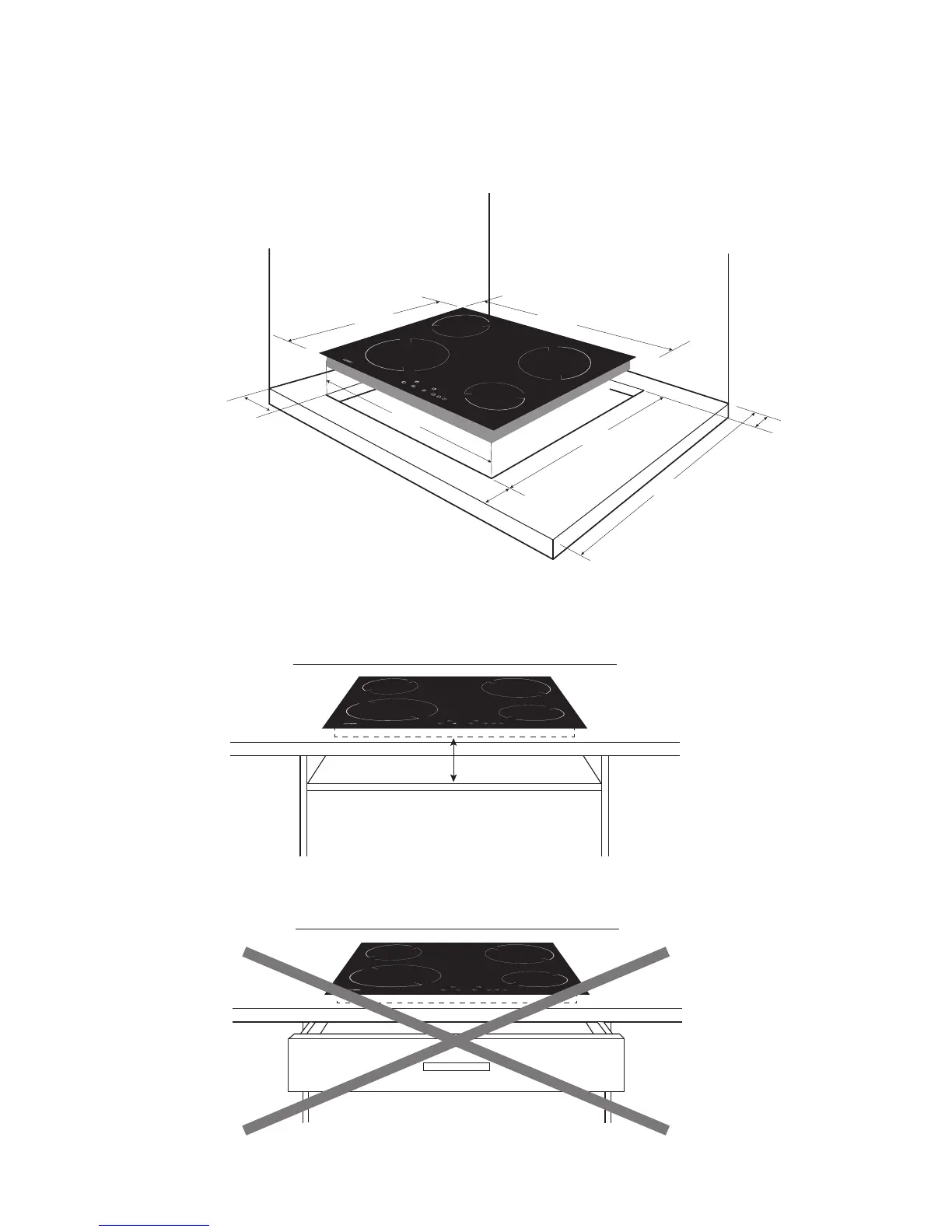

Fitting the hob into the work surface
The hob can be installed into a work surface of a depth between 28-38mm. Cut a hole in the work surface
560mm(w) x 490mm(D). Ensure that the work surface is clear of debris and dust before placing the hob into the
hole. Make sure you have stuck the sealing tape onto the hob.
If you are not fitting the hob above an oven, you must leave a 25mm space below the hob.
517mm
Min
55mm
Min
50mm
560mm
490mm
600mm
575mm
60mm
25mm
If you are not fitting the hob above an oven, you must leave a 25mm space below the hob. Install a heat resistant
barrier at a distance of 25mm from the base of the hob.
As a heat resistant barrier has to be fitted 25mm away from your hob it is not possible to install the hob directly
above a drawer.
