Revision 1 – 04.12.2015 5/28
MOUNTING

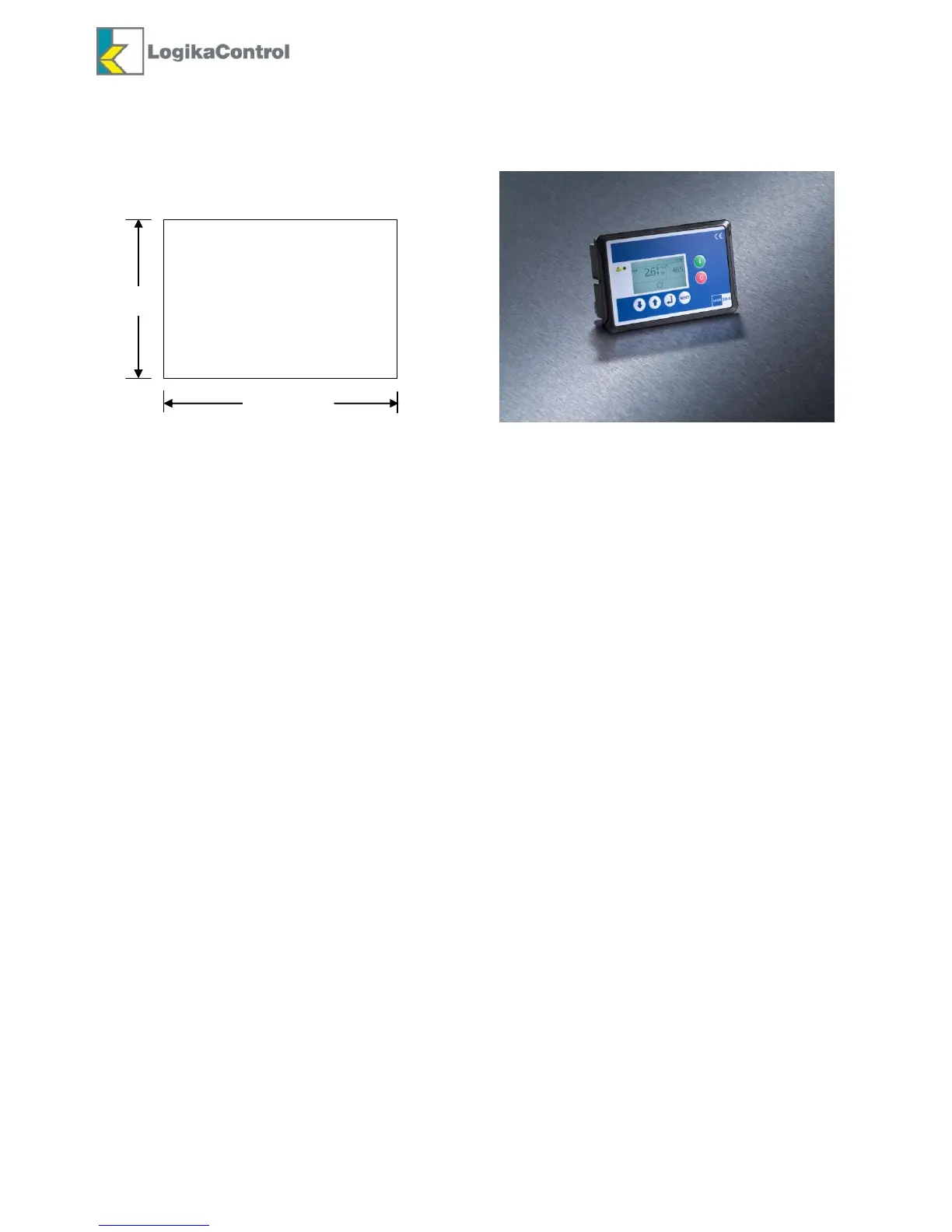

Use the drawing below as overall dimensions to mount the controller.
WARNING TO THE WIRING OF THE CONTROLLER
1) Respect the working technical features and instructions on the electrical wiring; in special way both the cables of the
temperatures probes and pressure transducers must be isolated from the power cables and proper RC filters must be
placed on the contactors’ coils
2) On the back side of the controller there must be enough space for wiring and connectors.
3) The rear side of the controller must be protected against condensation, oil and dust.
4) Don’t wash the front panel by water injection; clean the front mylar with a soft cloth using soap water.
5) Low voltage and high voltage cables run on separate trunks.
6) The connection cables of temperature probe and pressure transducer must be placed in a trunk separate from the power
cables.
7) The connections cables of digital inputs must be placed in a trunk separate from the power cables.
8) The power cable of controller must NOT be placed in the same trunk of the power cables
