Chapter V Disassembly & Repair
- 37 -

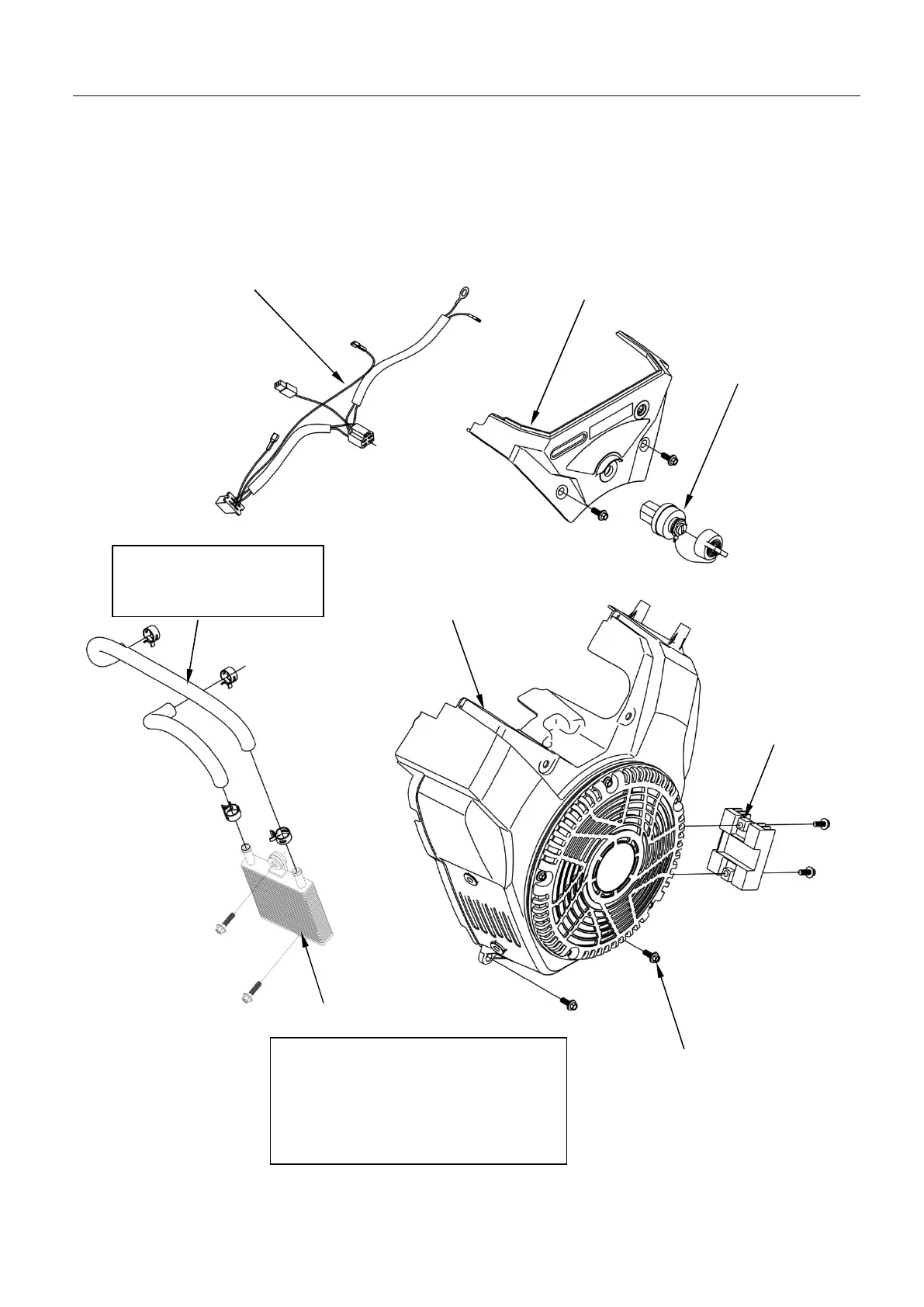

5-2-3 Fan cover - starting control switch
Harness of starting
control switch
Starting control switch
Fan cover part
Radiator part
Voltage regulating
rectifier
Flange bolt M6 × 16
Assembly
Surface shall be clean, smooth, flat
without wrinkling, strain, bruise and
other defects, or it shall be cleaned or
replaced immediately.
Assembly: check if the pipe
is aged or cracked before
installation.
Oil pipe
Plate,fan cover
