Chapter V Disassembly & Repair
- 43 -

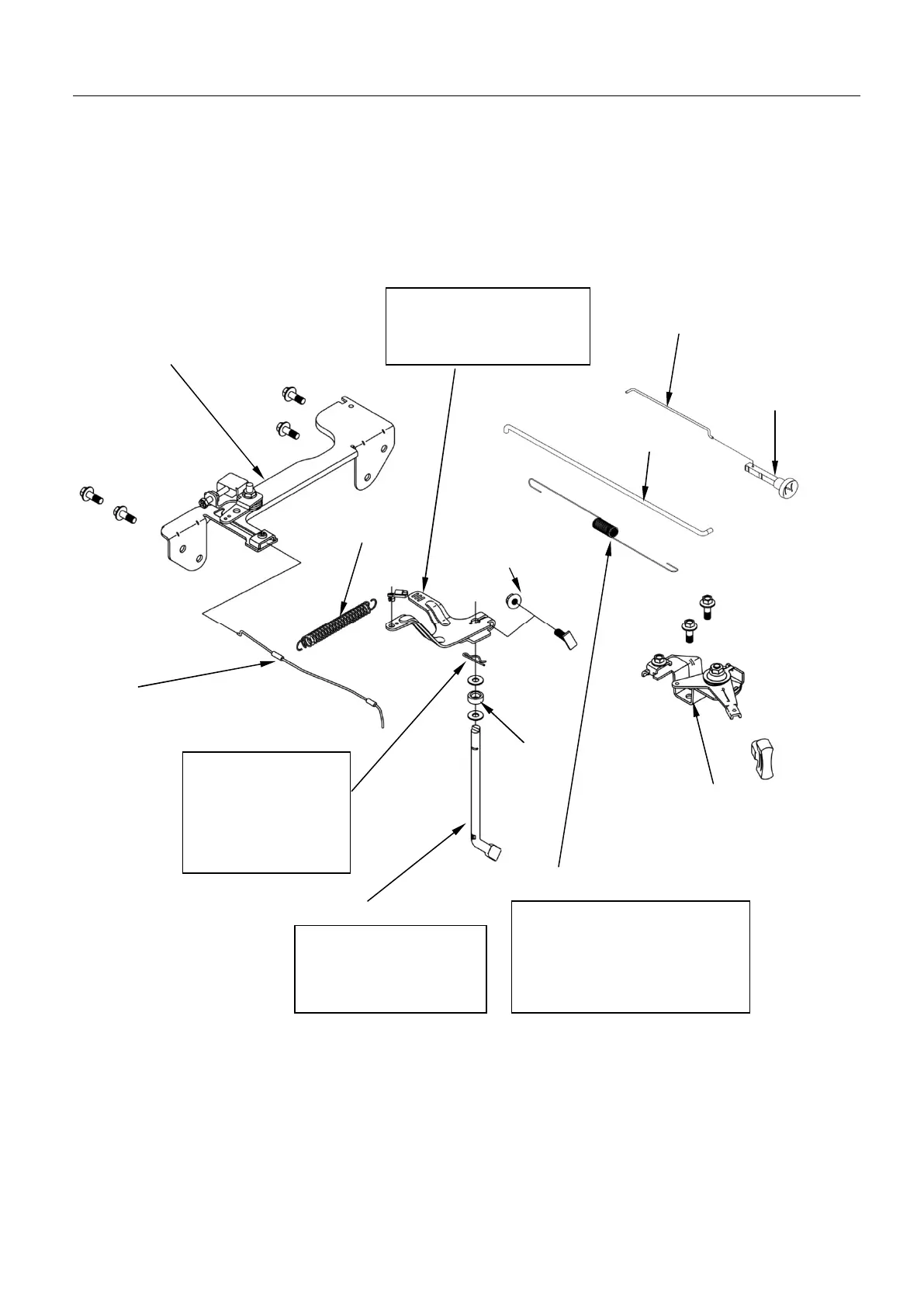

5-2-5 Speed-regulating mechanism
Speed-regulating
Nut: M6
Choke-valve
stem
Throttle lever
Assembly:
Adjust the speed regulator
Speed-regulating support
Throttle control
combination
Fuel control assy.
Assembly:
Hang the longer end of the
spring on the speed-regulating
support side in installation.
Return spring of throttle valve
Choke-valve
handle
Assembly:
Confirm if the action is
smooth after installation.
Speed-regulating arm
Assembly: insert the
split pin into the
speed-regulating arm
slot after the
speed-regulating arm
Needle
bearing
Accelerator, rope
Split pin
To Next Page
