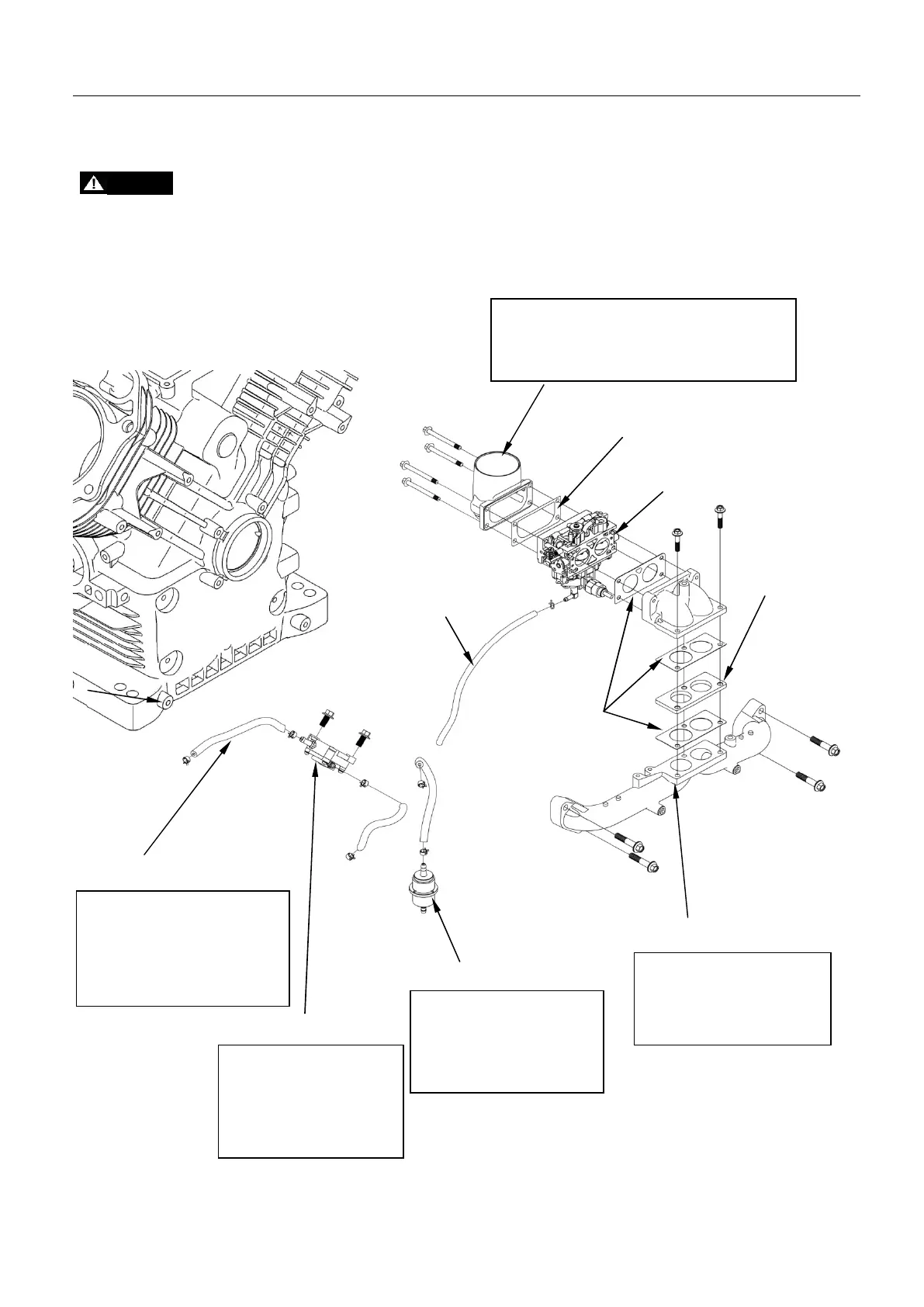

5-2-4 Carburetor
The gasoline is flammable and explosive. The fuel stop valve must be closed before repairing the
carburetor and drain the fuel in the carburetor.
Warning
Fuel filter
Assembly
Check if the filter
cartridge is clean
without damage.
Air inlet pipe
Assembly
Dirty or damaged one
shall be cleaned or
It shall be regularly replaced
every two years.
Assembly: check if the tube
is aged or cracked before
installation.
Fuel tube
Carburetor
sealing gasket
Carburetor
insulation gasket
Carburetor sealing gasket
Air filter seat
Assembly
Dirty, damaged or deformed one shall be
cleaned or replaced immediately.
Fuel tube
Carburetor
Gasoline pump
Assembly:
Appearance is not
damaged, pump oil flow
capacity is normal and
there is no fuel leakage.
