Chapter V Disassembly & Repair
- 39 -

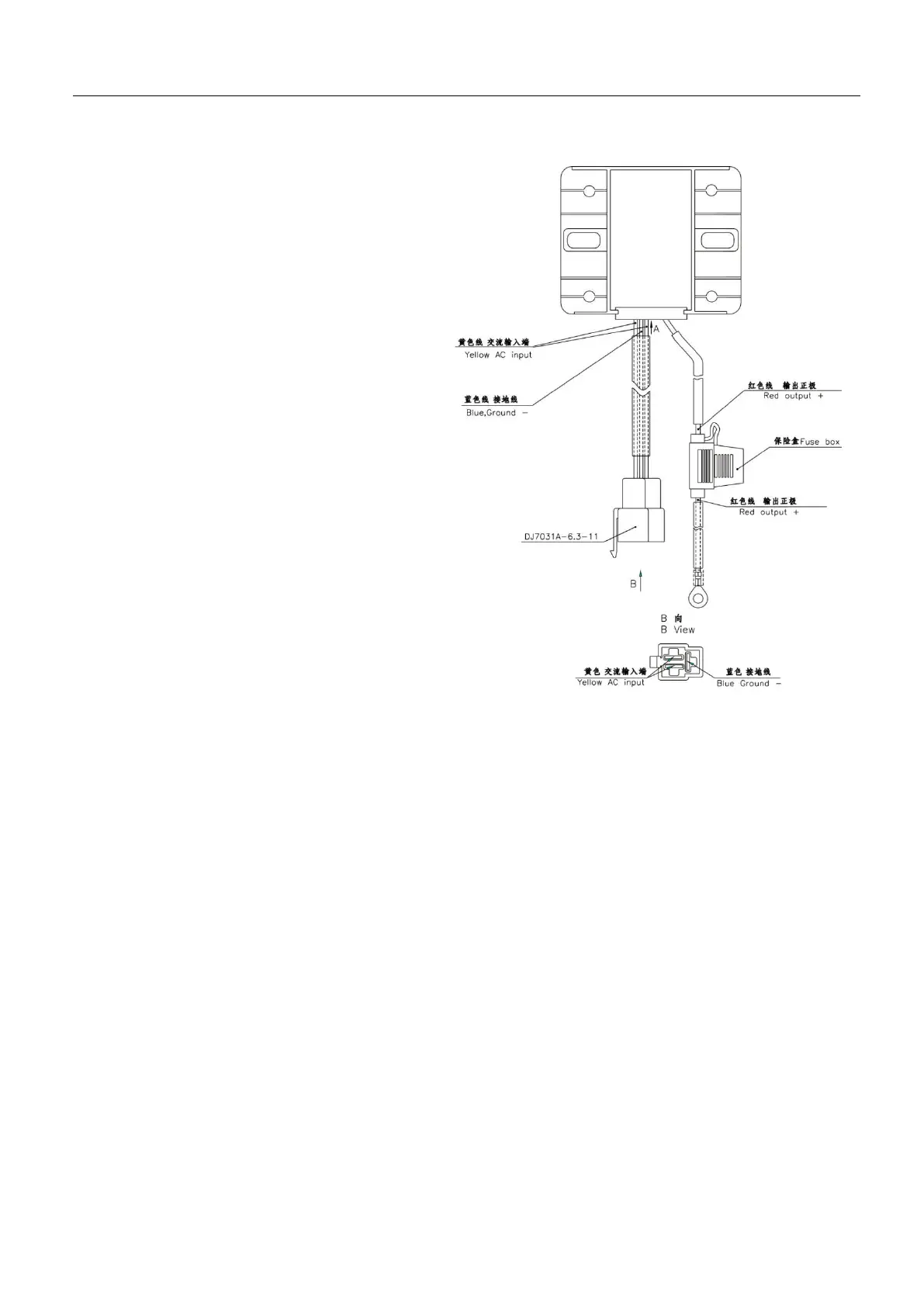

Voltage regulating rectifier
120W
2900rpm~3900rpm,
Module output voltage:DC13.8±0.5V;
It should carry rated load 120W ,voltage should more
than DC13V；
Current limiting protection: when the load current
is greater than 9A, voltage stabilizer into protection
state, but maintain the output 12A current;
180W
2900rpm~3900rpm,
Module output voltage：13.8±0.5V;
It should carry rated load 180W ,voltage should more
than DC13V；
Current limiting protection: when the load current
is greater than 16A, voltage stabilizer into protection
state, but maintain the output 19A current;
260W
2900rpm~3900rpm,
Module output voltage：13.8±0.5V;
It should carry rated load 260W ,voltage should more
than DC13V；
Current limiting protection: when the load current
is greater than 20A, voltage stabilizer into protection
state, but maintain the output 23A current;
