Chapter V Disassembly & Repair
- 46 -

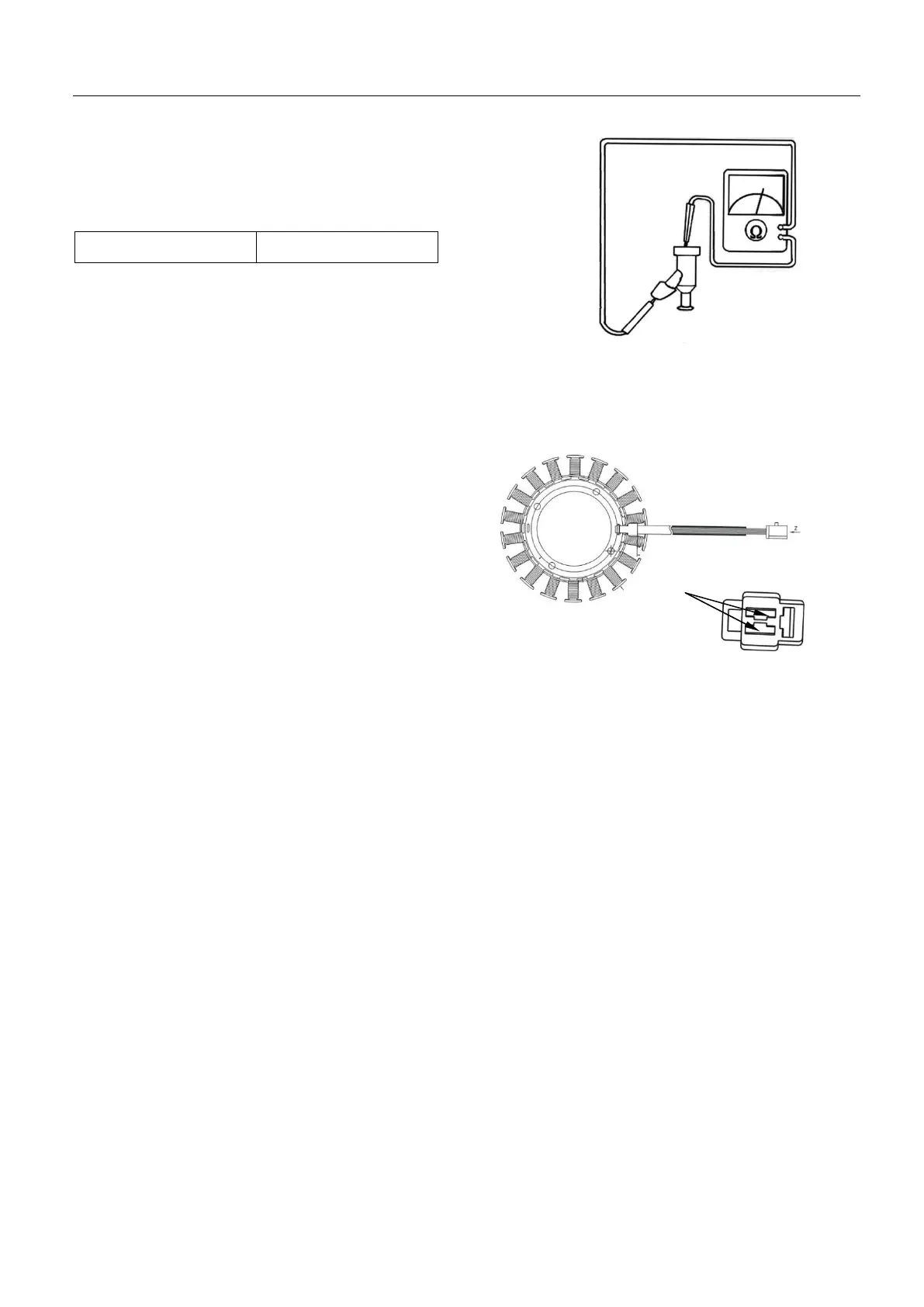

c. Spark plug cap
Connect the ohm gauge to the two ends of the spark plug
cap to measure the resistance of spark plug cap.
Resistance value
9-11 KΩ
Replace the spark plug cap if the resistance value doesn’t
meet specifications.
Charging coil
120W
Use multimeter to test the voltage between the two yellow
lines of charging coil when the engine is of no load:
Average no-load voltage (32±2) V and peak voltage (84±4) V.
Equipped with the voltage regulator with 120 W load, and
the Voltage not less than DC13V
180W
Use multimeter to test the voltage between the two yellow
lines of charging coil when the engine is of no load:
Average no-load voltage (32±2) V and peak voltage (84±4) V.
Equipped with the voltage regulator with 180 W load, and
the Voltage not less than DC13V
260W
Use multimeter to test the voltage between the two yellow
lines of charging coil when the engine is of no load:
Average no-load voltage (33±2) V and peak voltage (86±4) V.
Equipped with the voltage regulator with 260 W load, and
the Voltage not less than DC12.5V
