LONCIN LC3500i - Appearance Assembly

Chapter IV Disassembly & Repair
- 53 -

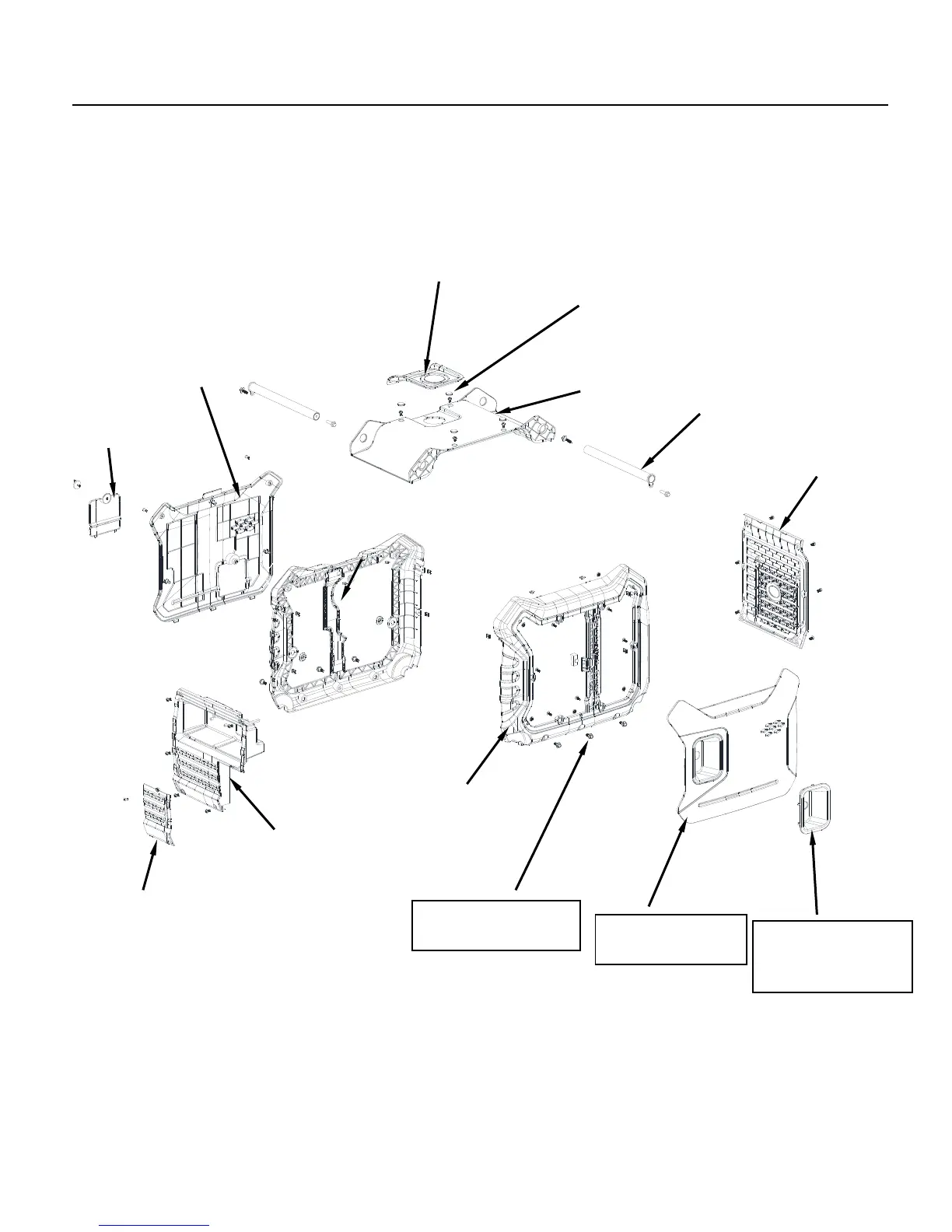

4-5-7 Appearance assembly
a. Disassembly/assembly
Gum cover of oil inlet
Right shell of
electric generator
Bolt M6 × 20 (6)
Torque: (8 ~ 12) N•m
Left shell of electric generator
Left appearance
cover plate
Inspection window
for engine oil
Maintenanc
e cover of
batteries
Hand tubes (2)
Panel seat
Waterproof endcap (4)
Top cover of rack
Shuttle
Right appearance
cover plate
Decoration cover
of handle mouth
of pull rope
