12

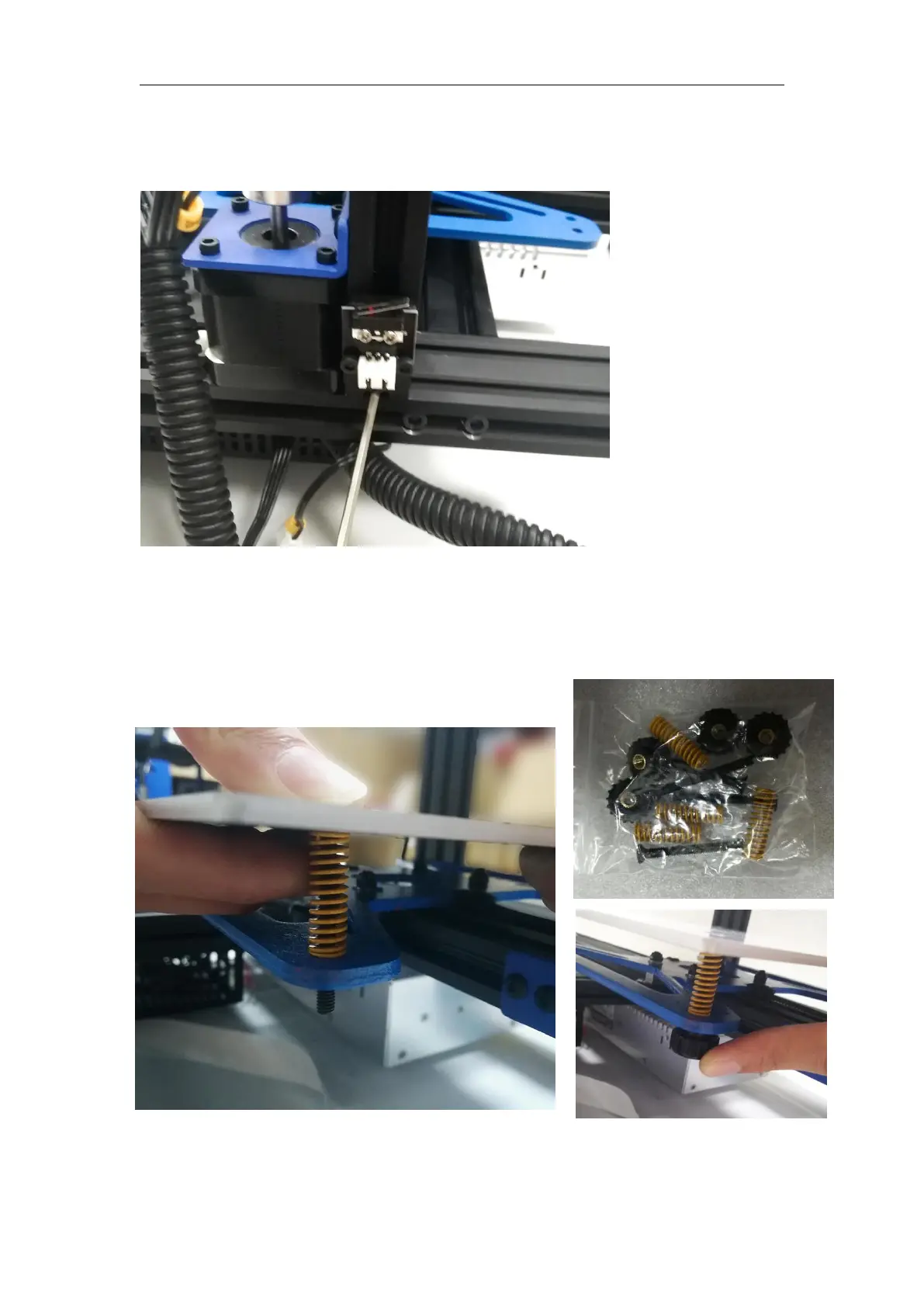

7.Install the z-axis limit switch
8.Mounting aluminum substrate
Z-axis limit opening
installation is about
15mm from the base
(this is adjustable)
