10
EN

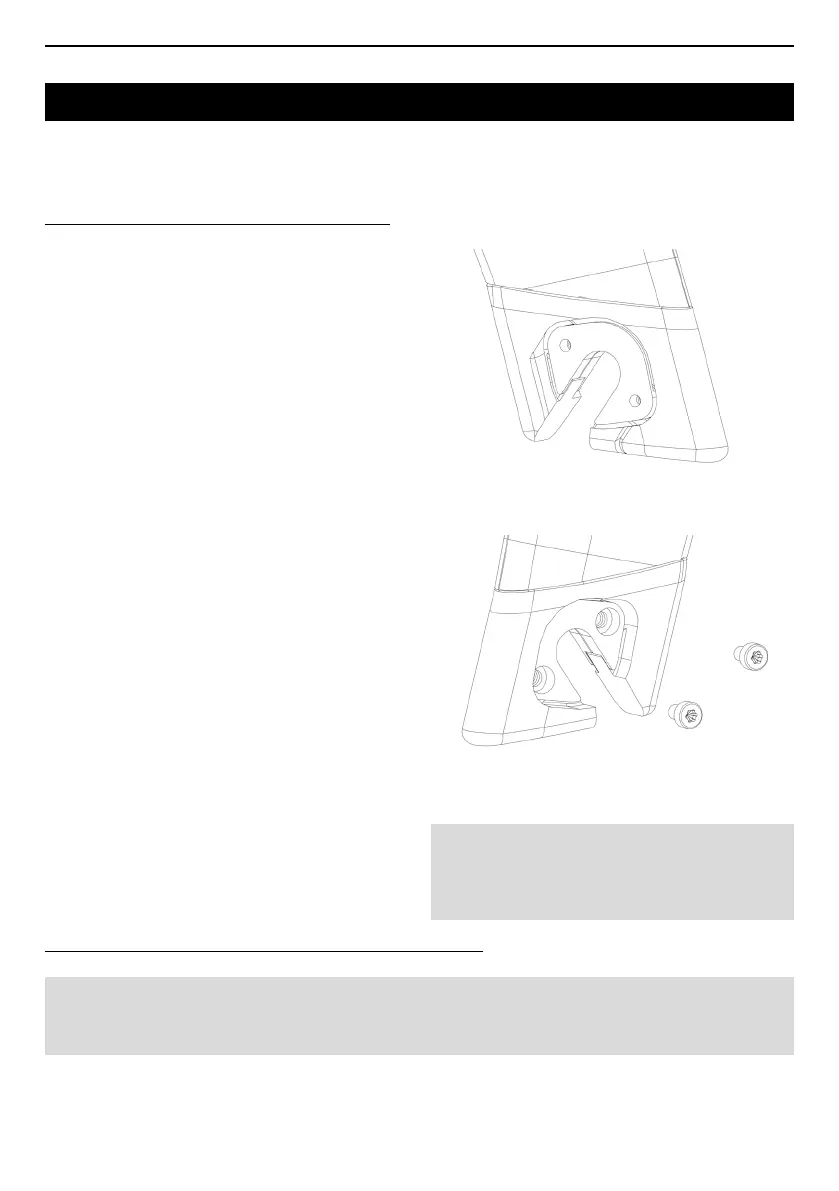

1 I Place the threaded washer on the inside of the
left fork end and press it rmly into place.
2 I Place the smooth washer on the outside of the
left fork end and press it rmly into place. Using 2x
M3x5 screws, tighten to a torque of 1Nm.
3 I Repeat steps 1 & 2 on the right fork end (the
washers are symmetrical and can be mounted on
both the right and left hand side).
INSTALLING THE STANDARD AXLE FITTINGS
IMPORTANT CONSIDERATION FOR ALL SETUP OPTIONS
Inside
Outside
WARNING : Ensure the screw heads do not
protrude beyond the counterbore, or the axle will
rest on the screw heads rather than on the at
surface of the washer.
Using wheels with different axle types requires swopping the ttings regularly. After assembling/
disassembling three times it is important to recoat the screw threads with a standard threadlocker
such as LOCTITE 243
TM
. Do not grease or lubricate the screws !
